ABS & TRAC Motor Relay Circuit

CIRCUIT DESCRIPTION
The ABS & TRAC motor relay supplies power to the ABS & TRAC pump motor. While the ABS is activated, the ECU switches the ABS & TRAC motor relay ON and operates the ABS & TRAC pump motor.

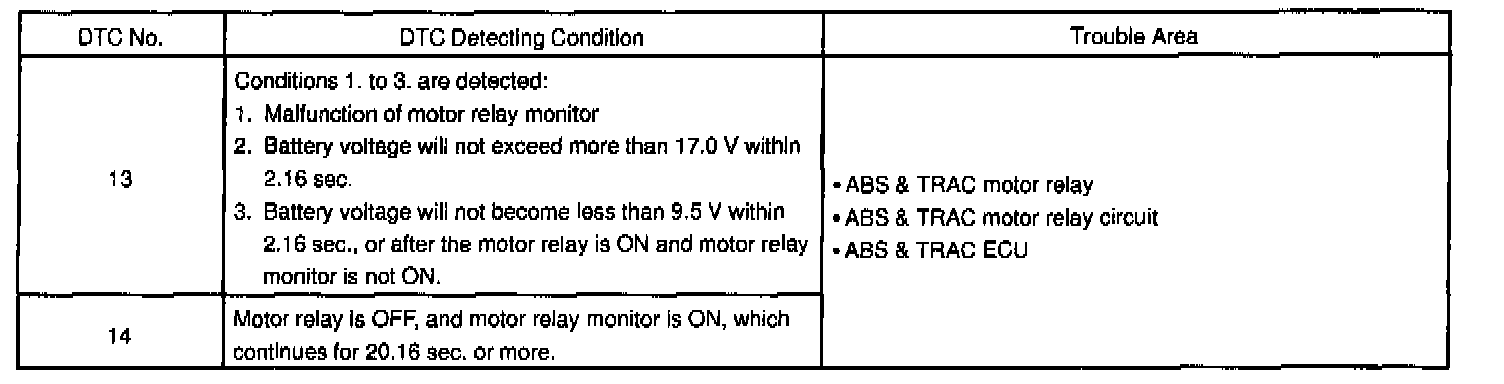

DETECTING CONDITIONS

Fail safe function:
If any trouble occurs in the ABS & TRAC motor relay circuit, the ECU cuts off current to the ABS & TRAC solenoid relay and prohibits ABS control and TRAC control.





WIRING DIAGRAM

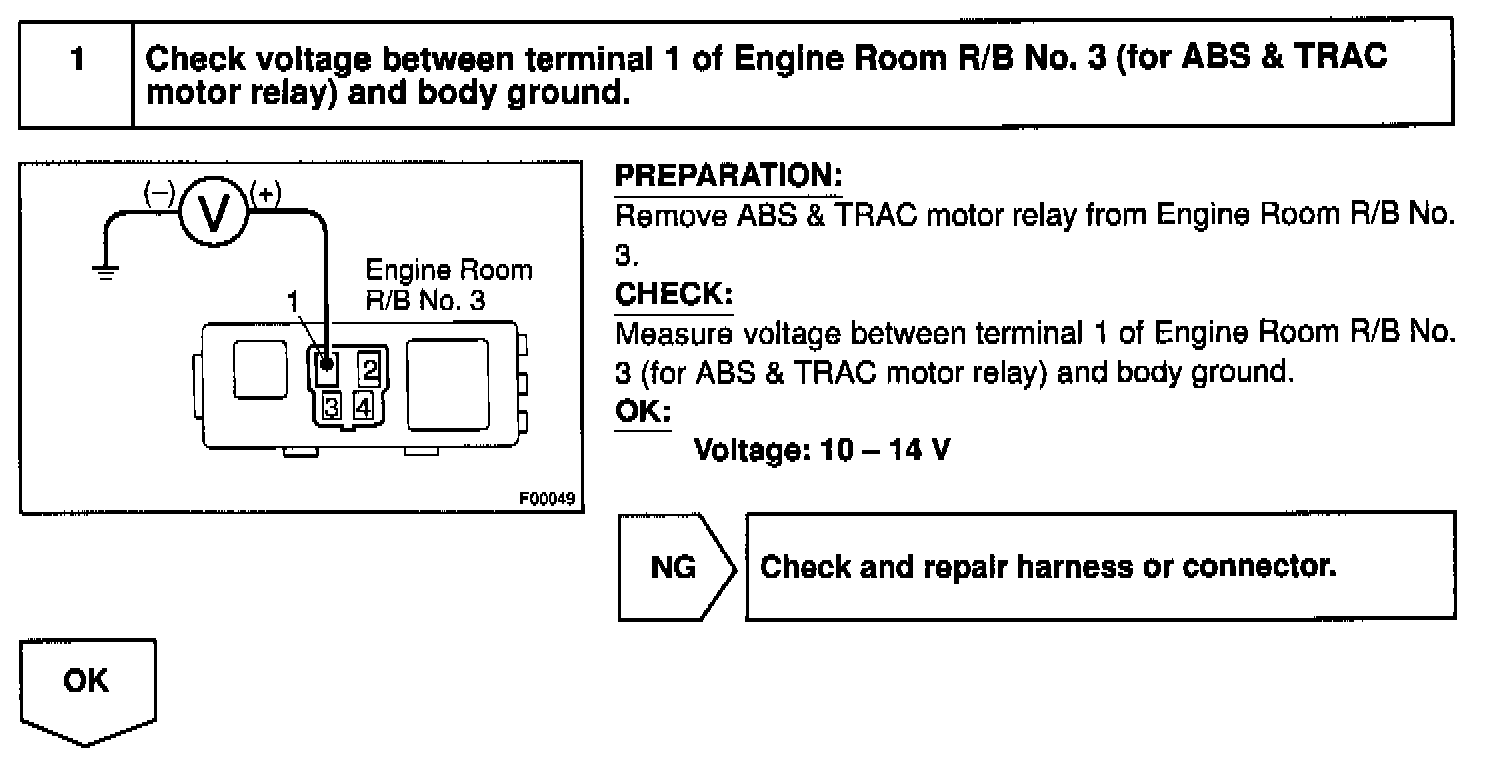

Step 1:

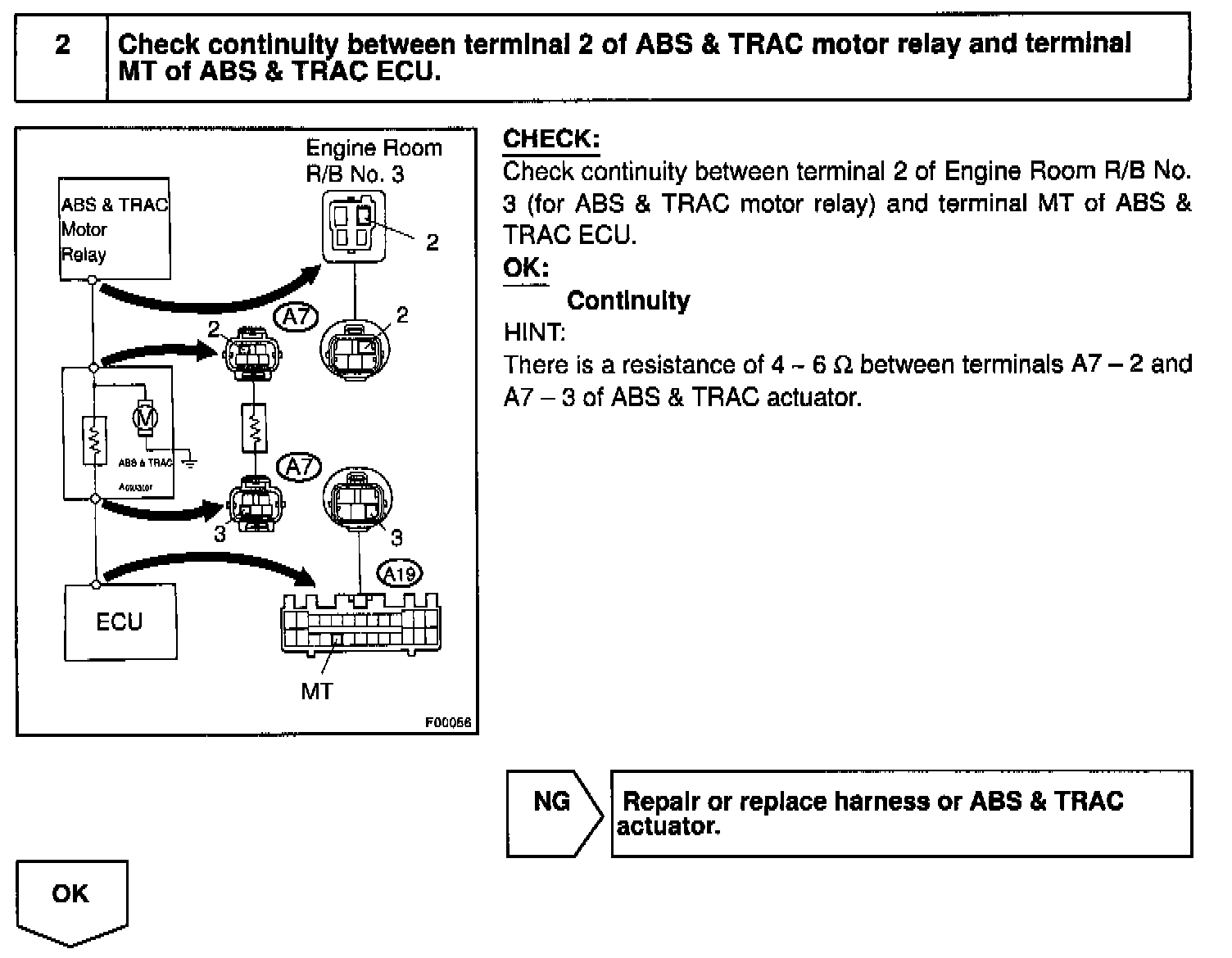

Step 2:

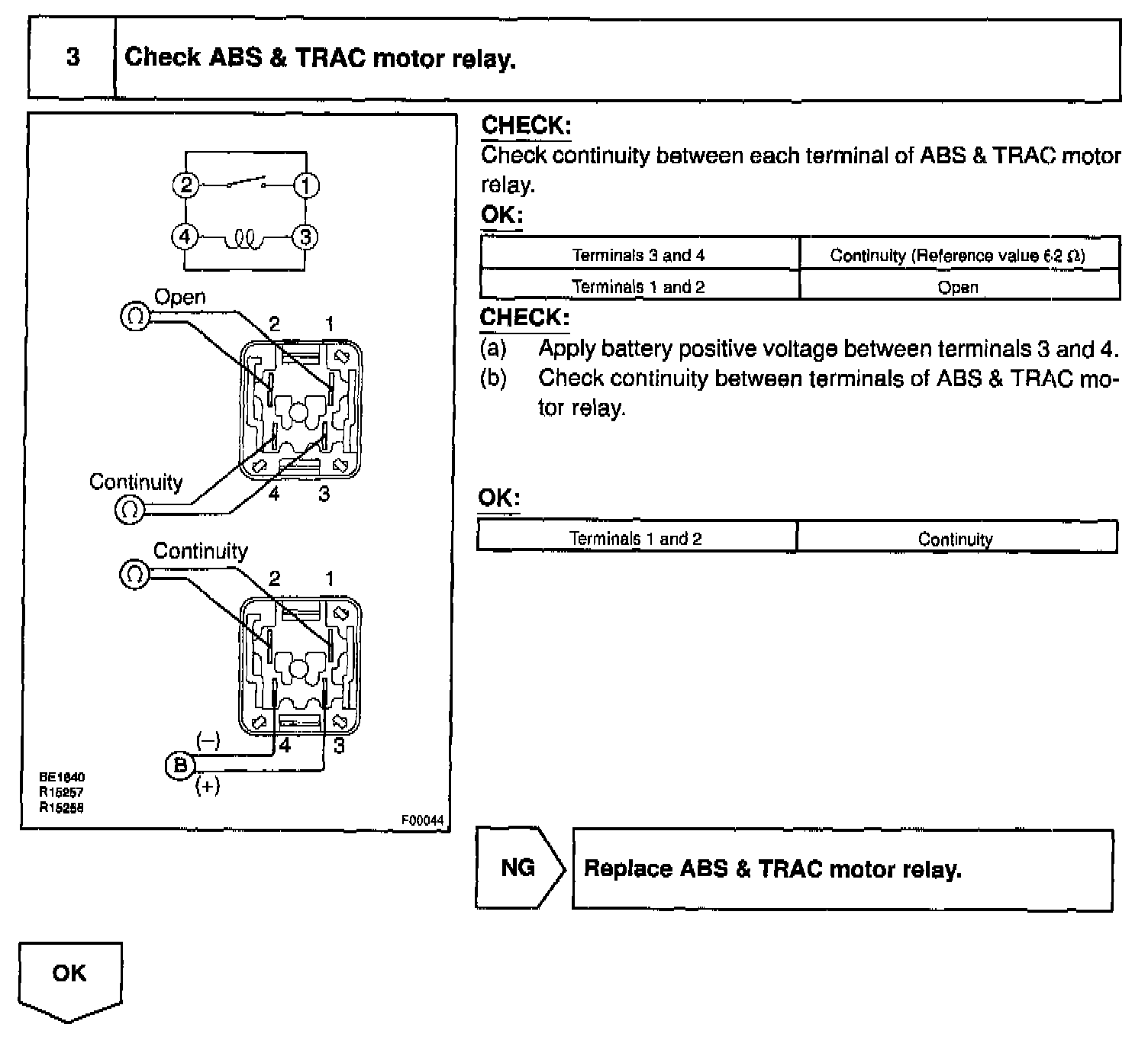

Step 3:

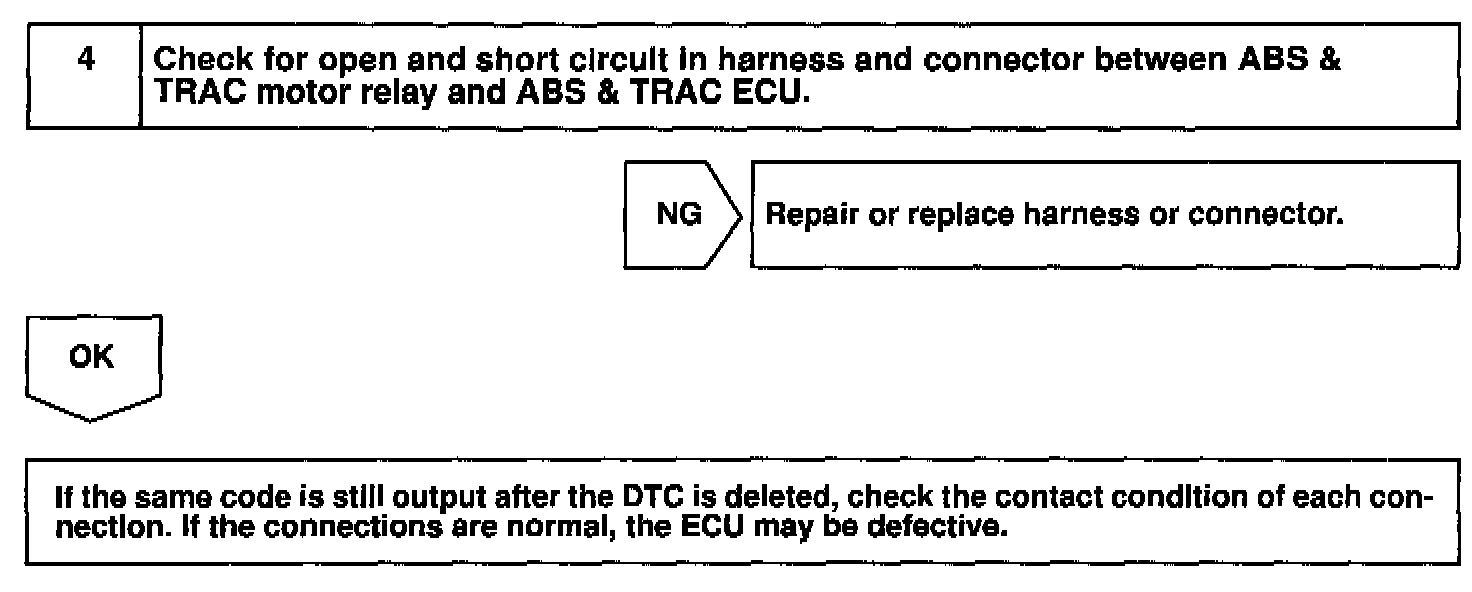

Step 4:

INSPECTION PROCEDURE
