Suspension Control ( Automatic - Electronic Level )

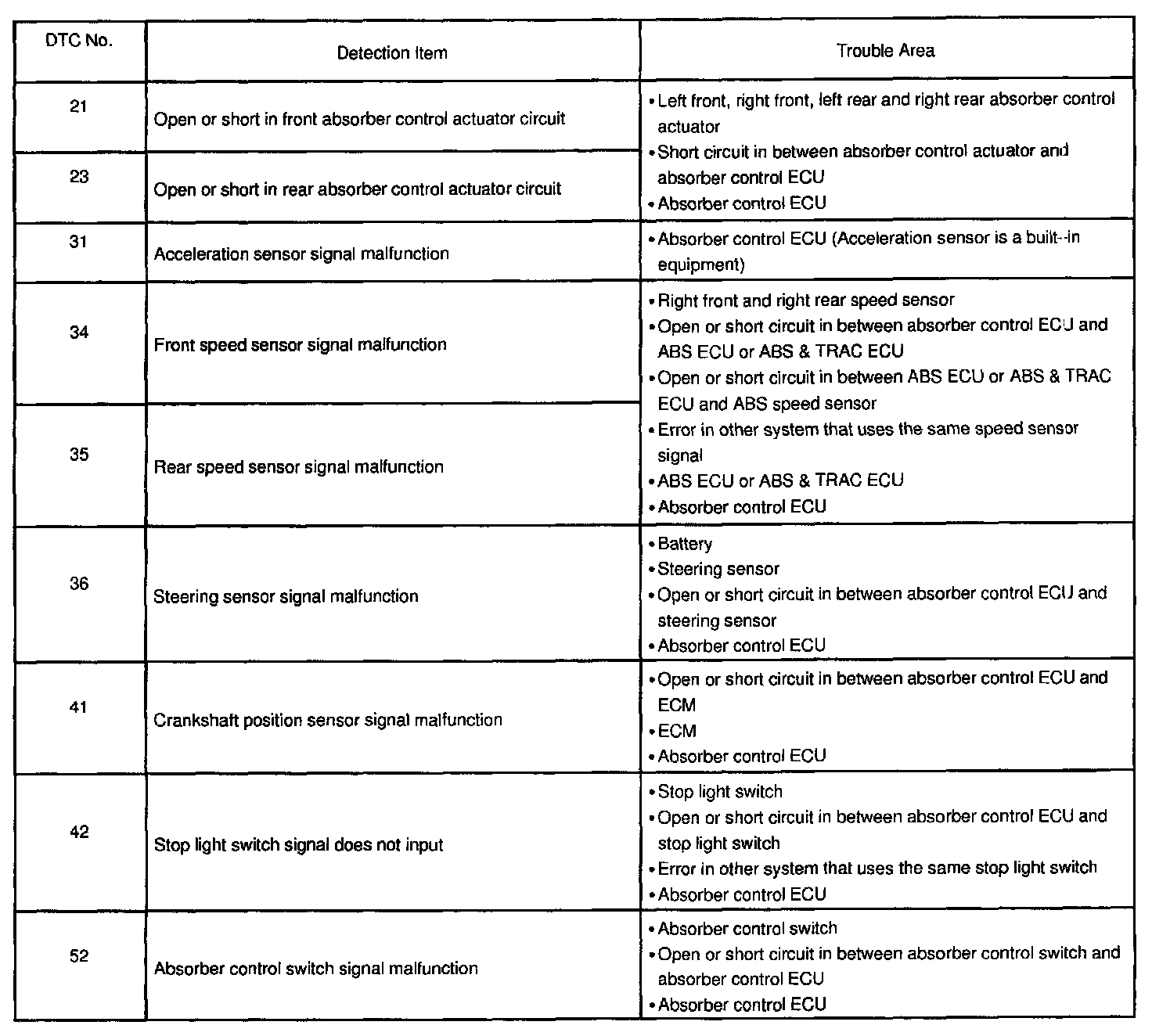

DIAGNOSTIC TROUBLE CODE CHART
If a malfunction code is displayed during the DTC check identify the DTC code and check the circuit list that the code.

HINT:
- DTCs 36, 42, and 52 can be detected only in the input signal inspecting mode.
- All DTCs are erased when the ignition switch is turned off.
