ABS W/Traction Control (TRAC)









HINT:
- Using SST 09843-18020, connect the terminals Tc and E1, and remove the short pin.

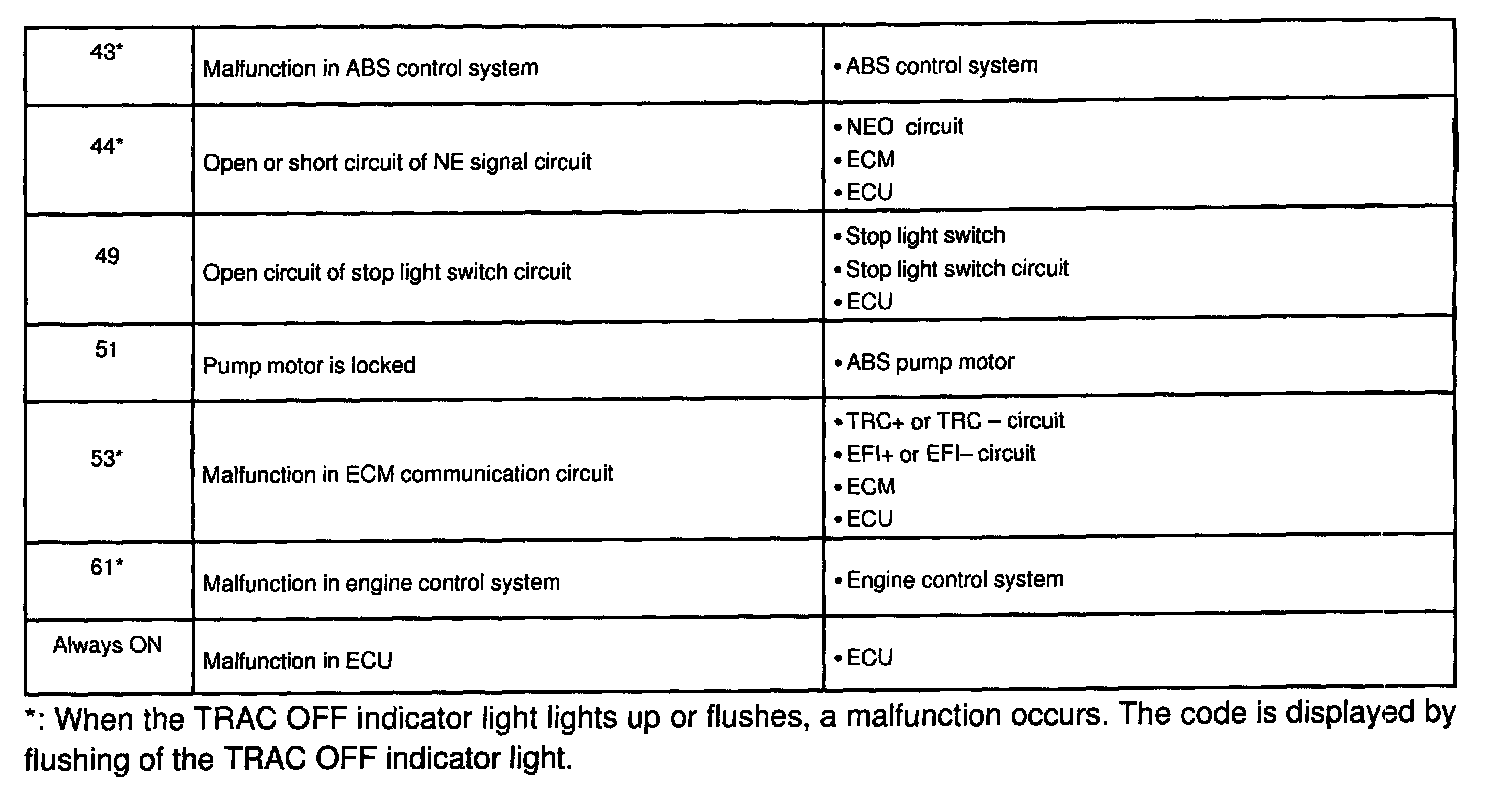

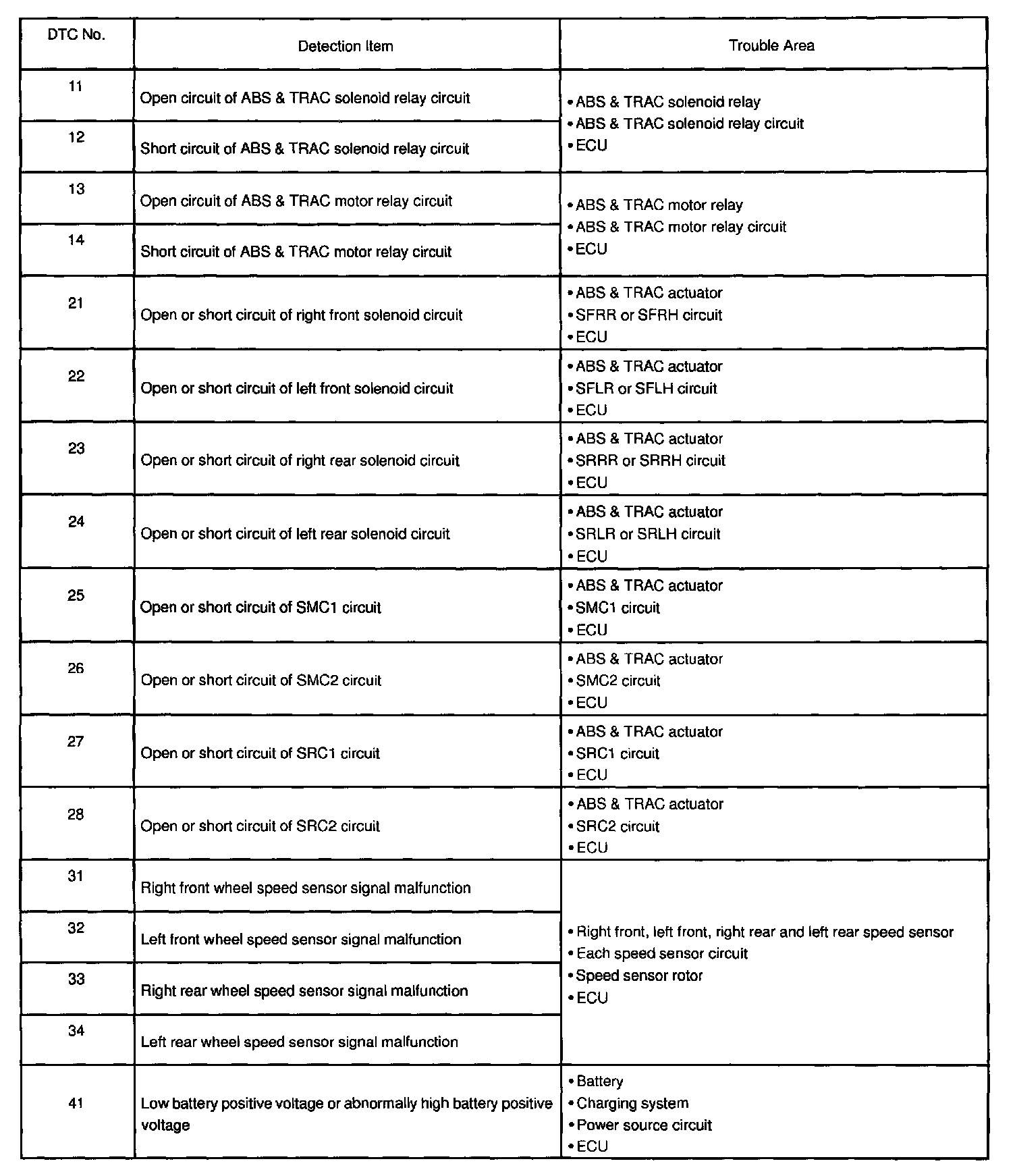

- If a malfunction code is displayed during the DTC check, check the circuit listed for the code. For details of each code, turn to the respective "DTC No." in the DTC chart.
