ABS (Antilock Brake System)

DTC C1207/37 Park/Neutral Position Switch Circuit

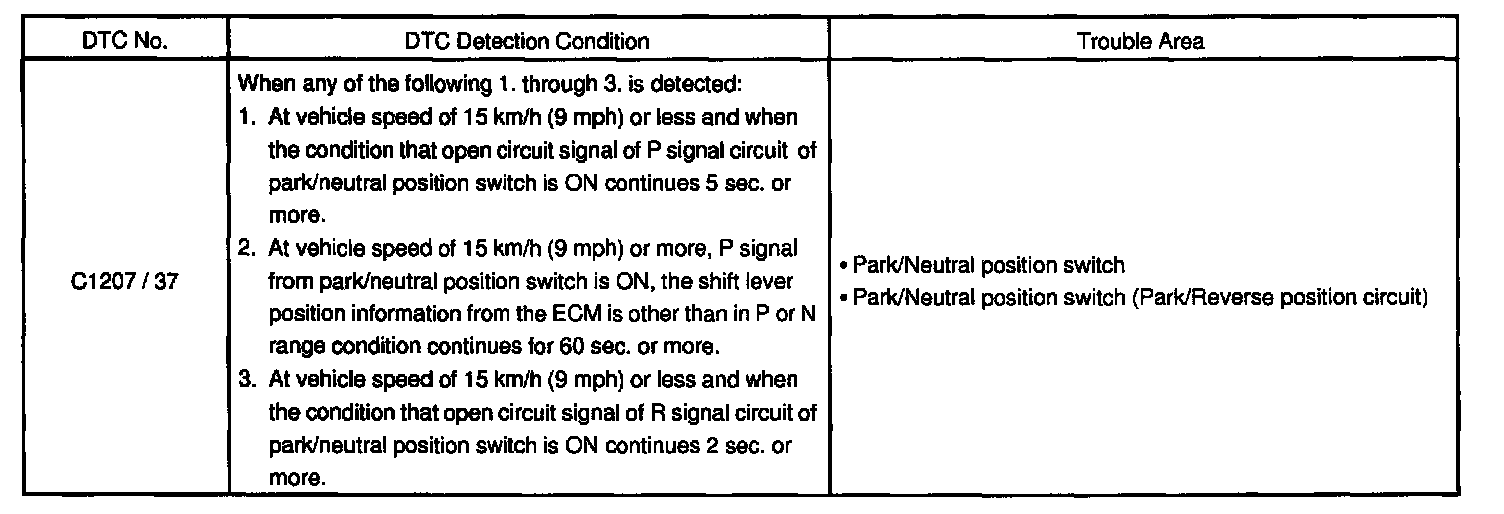

DETECTING CONDITIONS





WIRING DIAGRAM

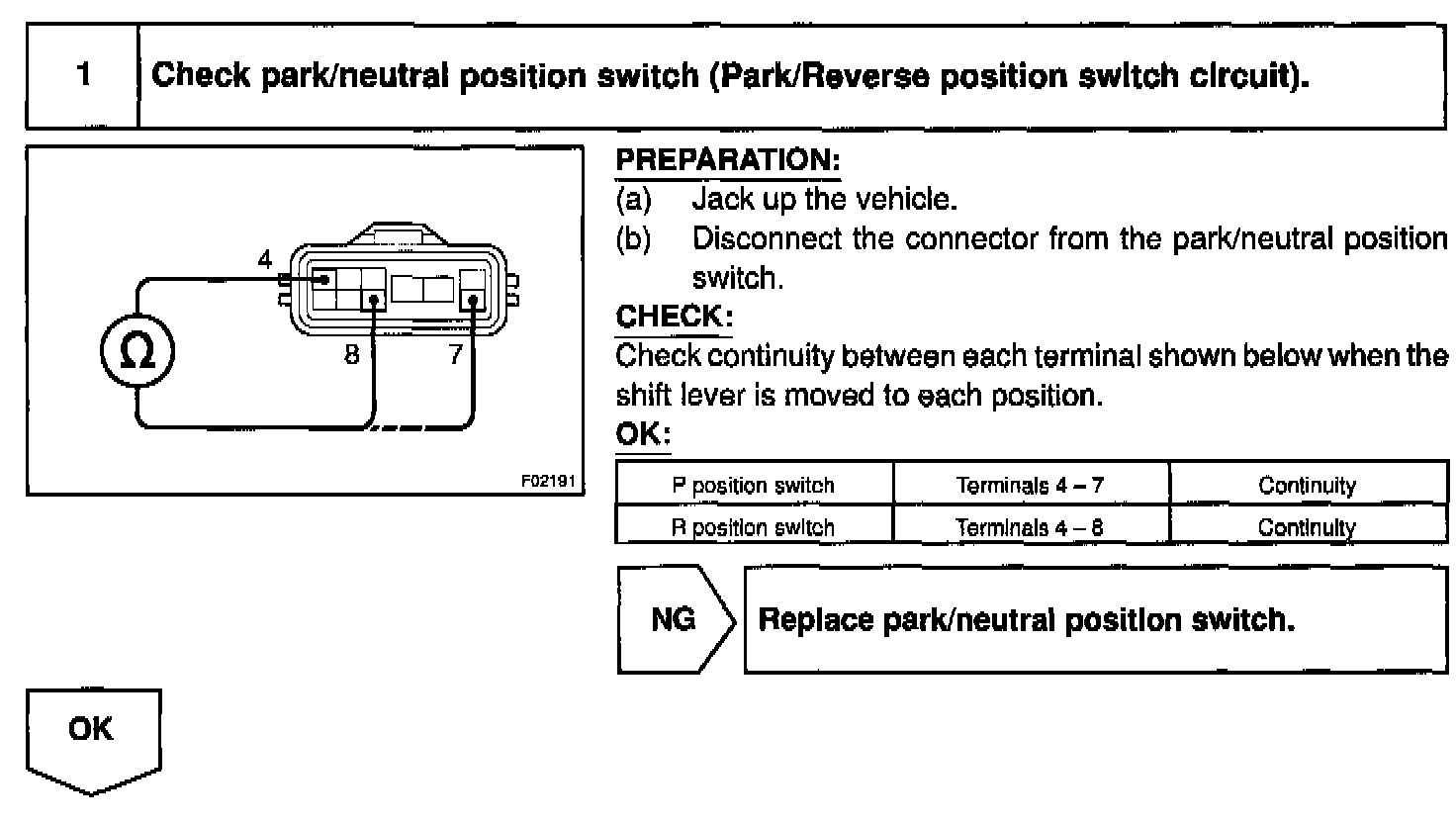

Step 1:

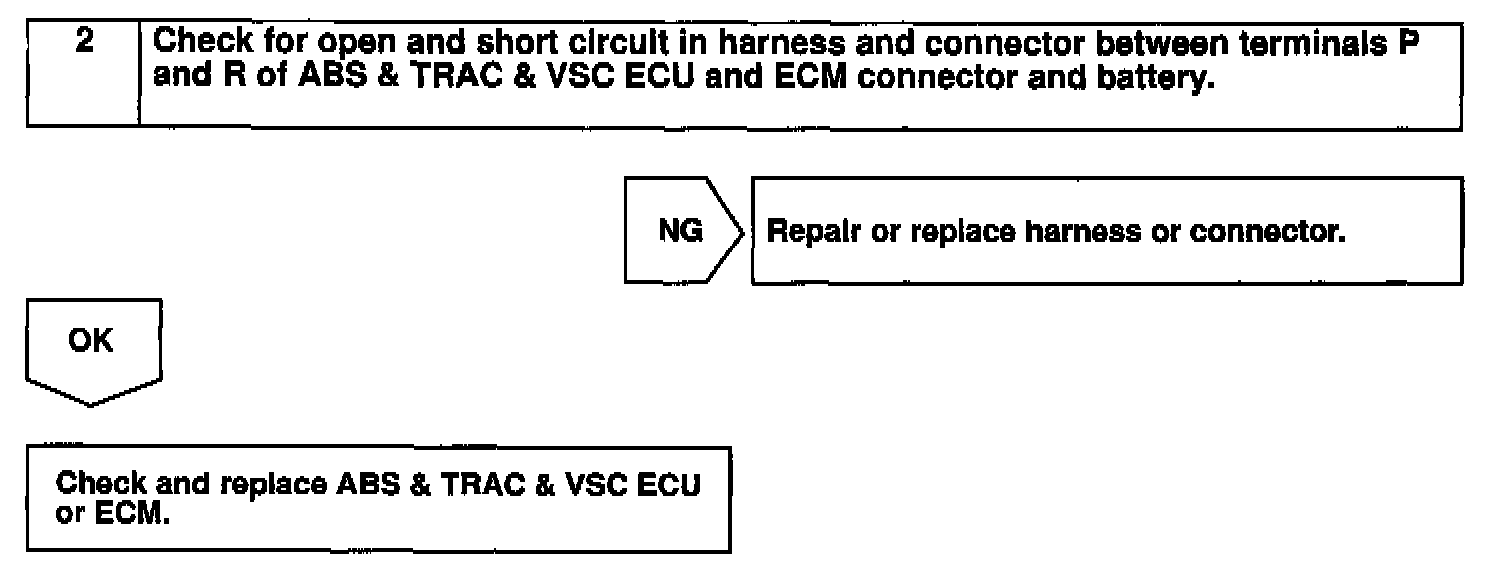

Step 2:





INSPECTION PROCEDURE
