ABS W/Vehicle Skid Control (VSC)

CIRCUIT DESCRIPTION
The circuit is used to send TRAC & VSC control information from the ABS & TRAC & VSC ECU to the ECM (TRC+, TRC-), and engine control information from the ECM to the ABS & TRAC & VSC ECU (ENG+, ENG-).

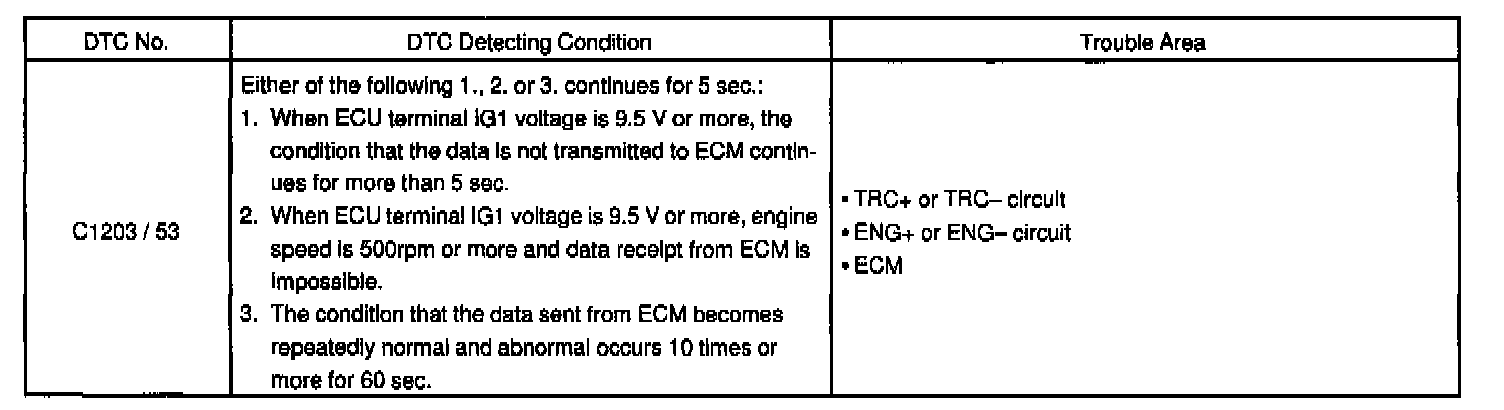

DETECTING CONDITIONS
Fail safe function:
If any trouble occurs in the ECM communication circuit, the ECU prohibits TRAC & VSC controls.

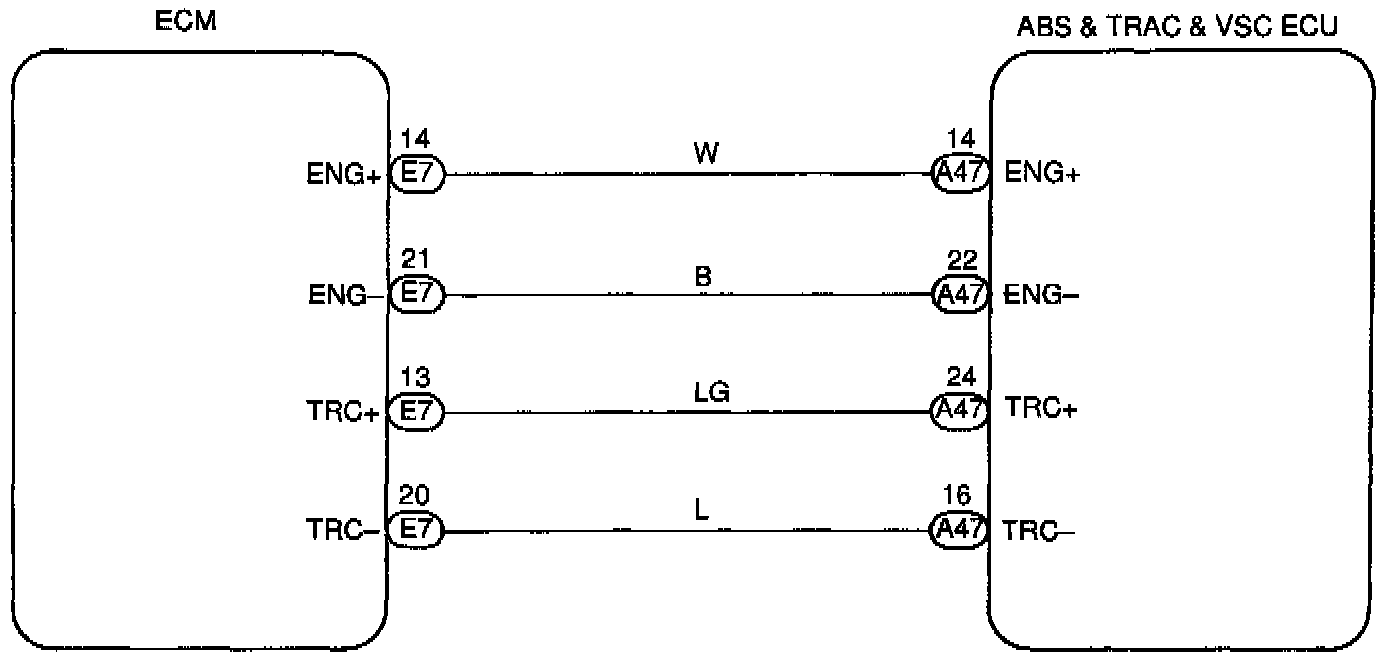

WIRING DIAGRAM

Step 1:

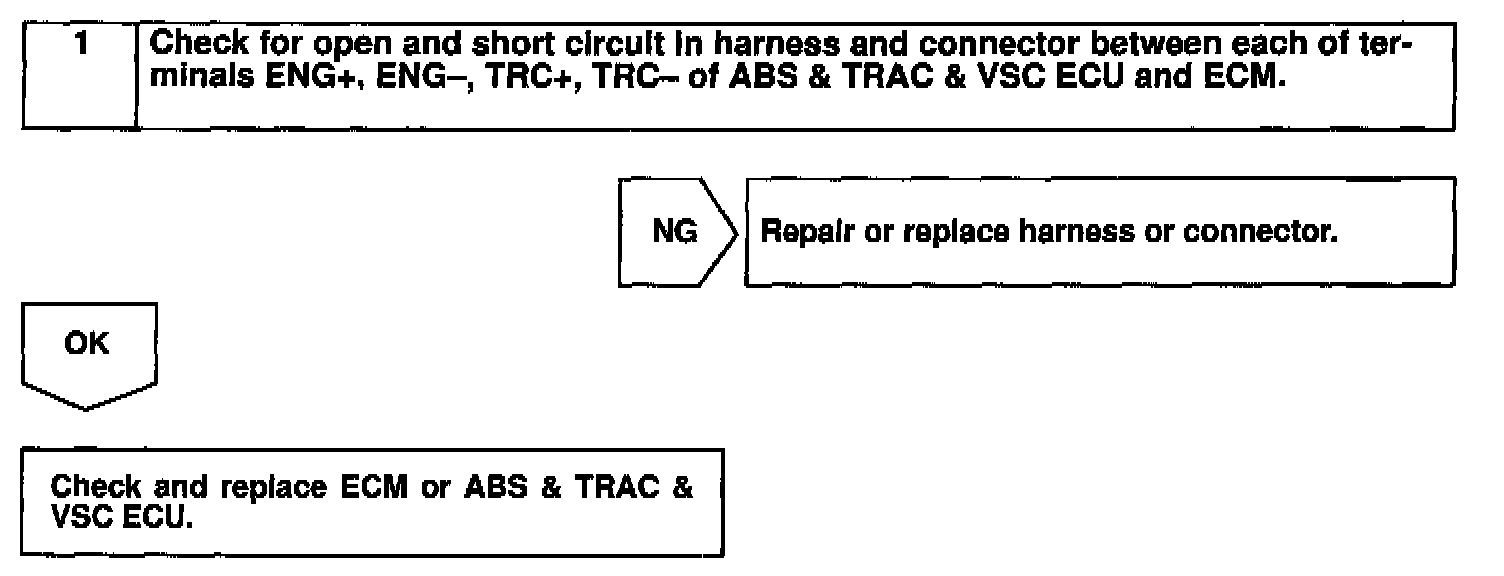

INSPECTION PROCEDURE
