B2797

CIRCUIT DESCRIPTION
This code is detected when although the communication has been performed normally, an error occurs.

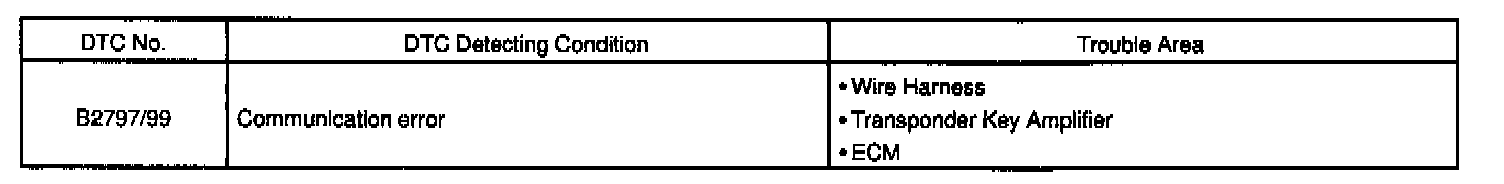

DETECTING CONDITIONS

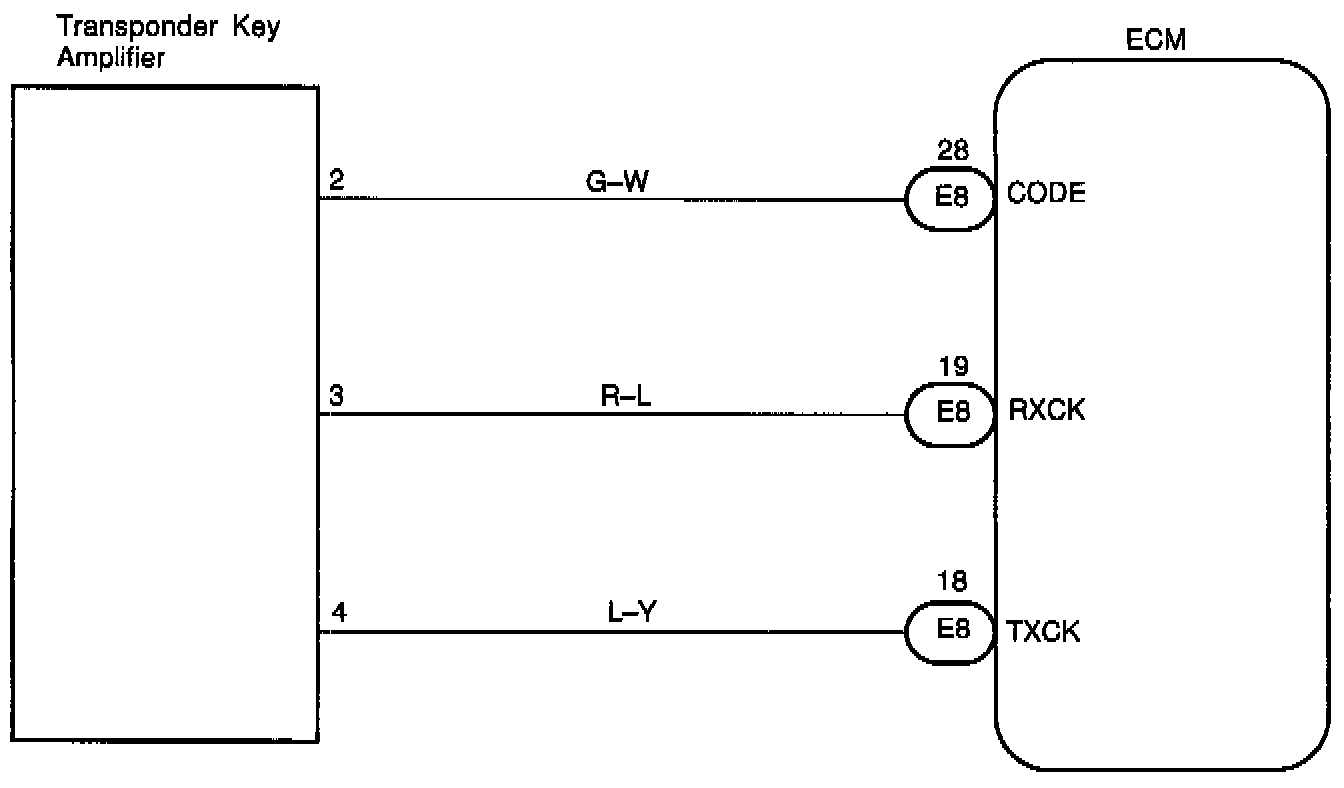

WIRING DIAGRAM

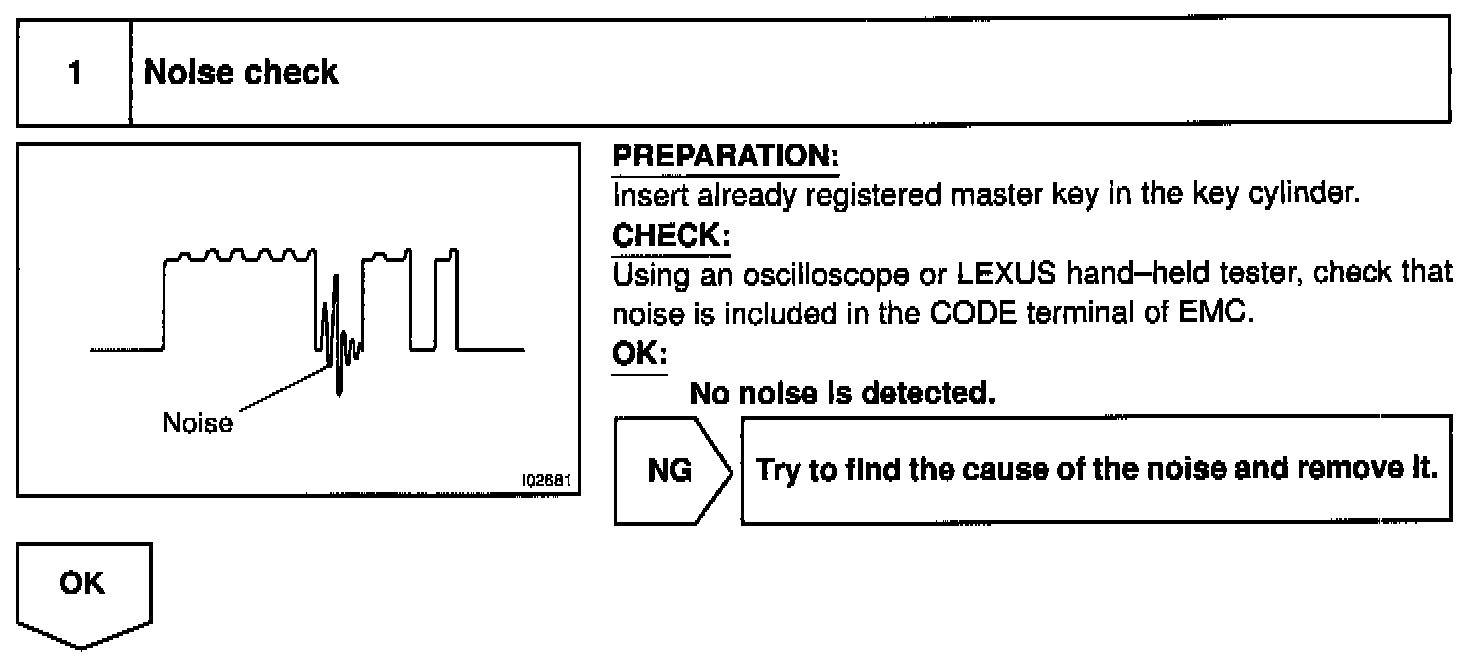

Step 1:

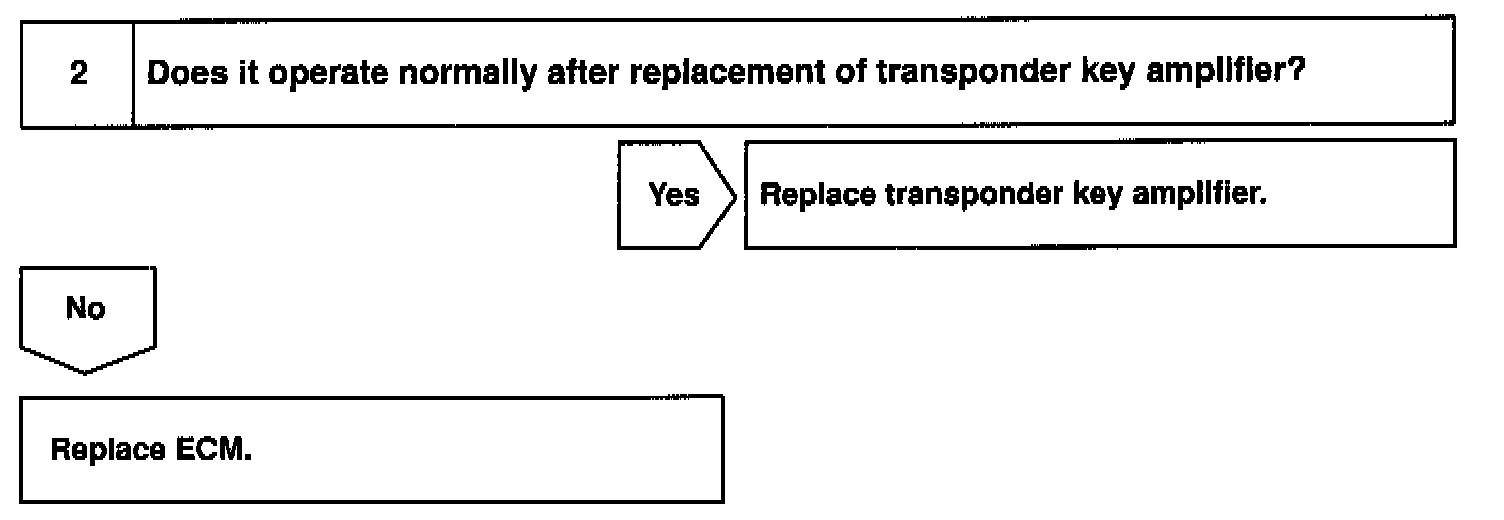

Step 2:

INSPECTION PROCEDURE
