B0103

CIRCUIT DESCRIPTION




The D squib circuit consists of the airbag sensor assembly, spiral cable and steering wheel pad.
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each component, see OPERATION.

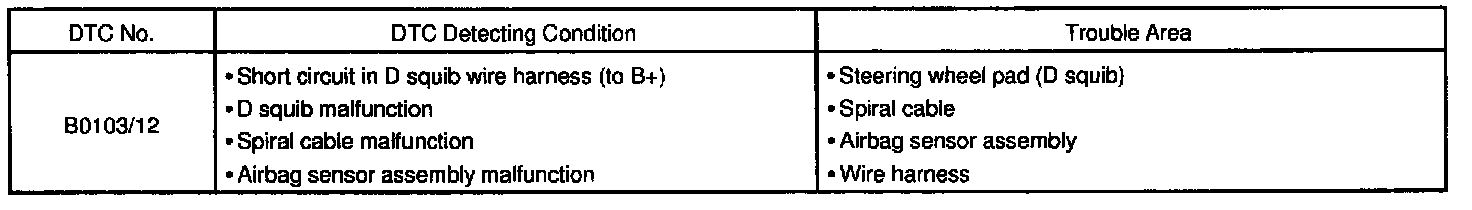

DTC B0103/12 is recorded when a B+ short is detected in the D squib circuit.




WIRING DIAGRAM

INSPECTION PROCEDURE

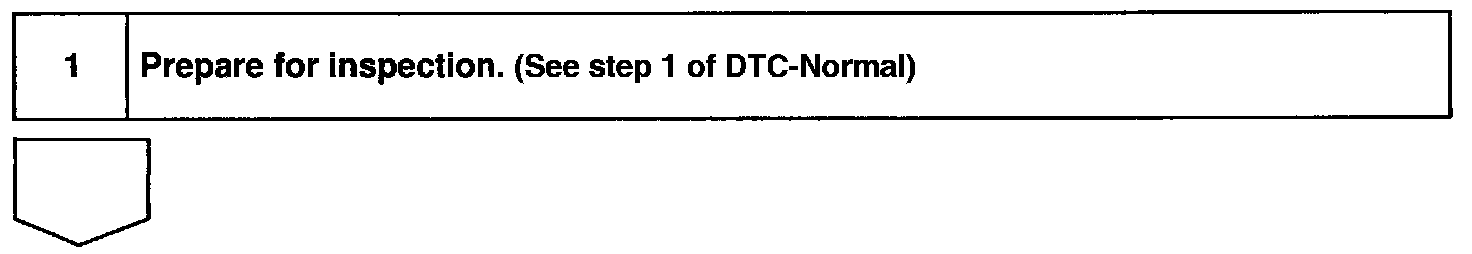

Step 1/Prepare for inspection.

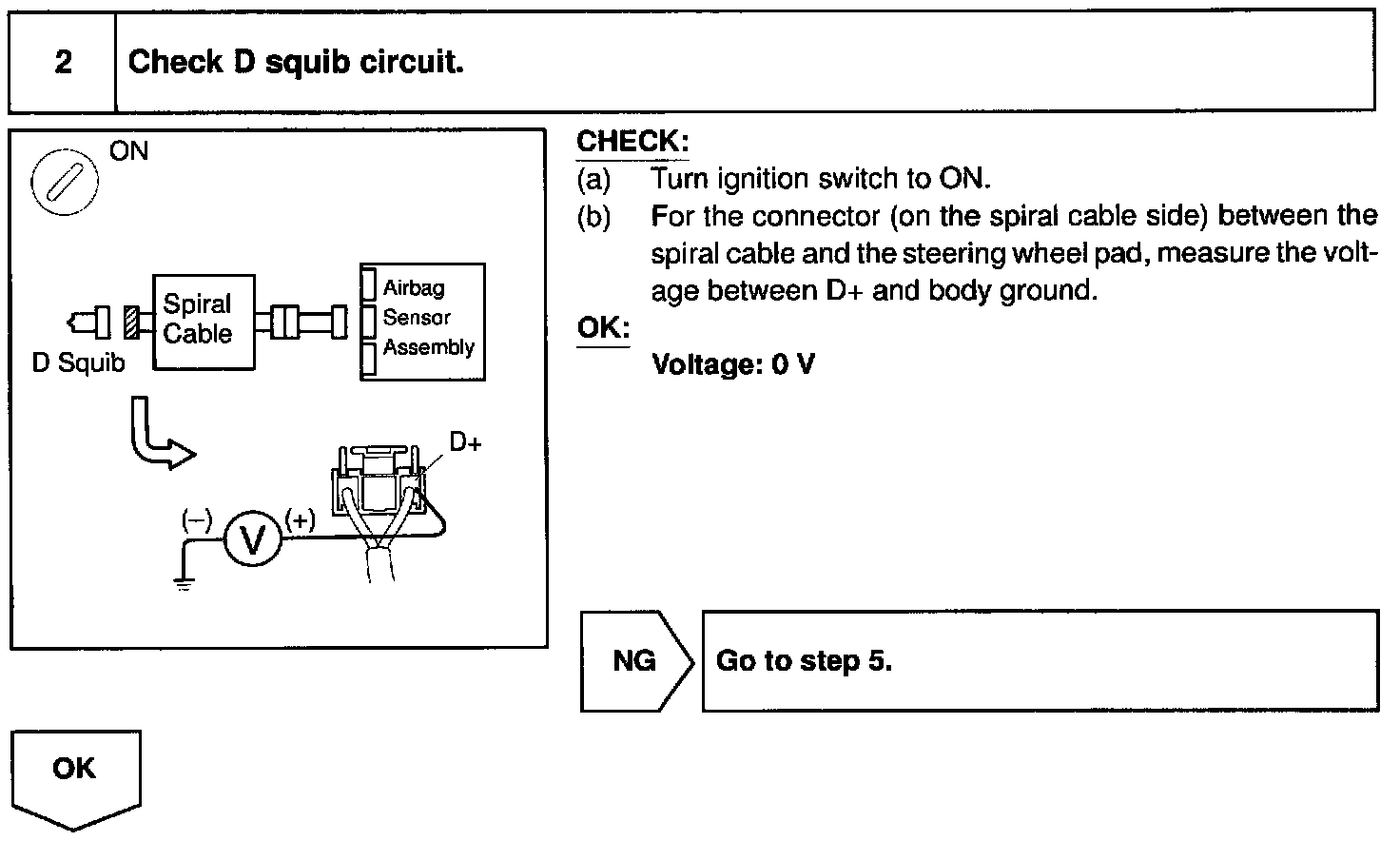

Step 2/Check D squib circuit.

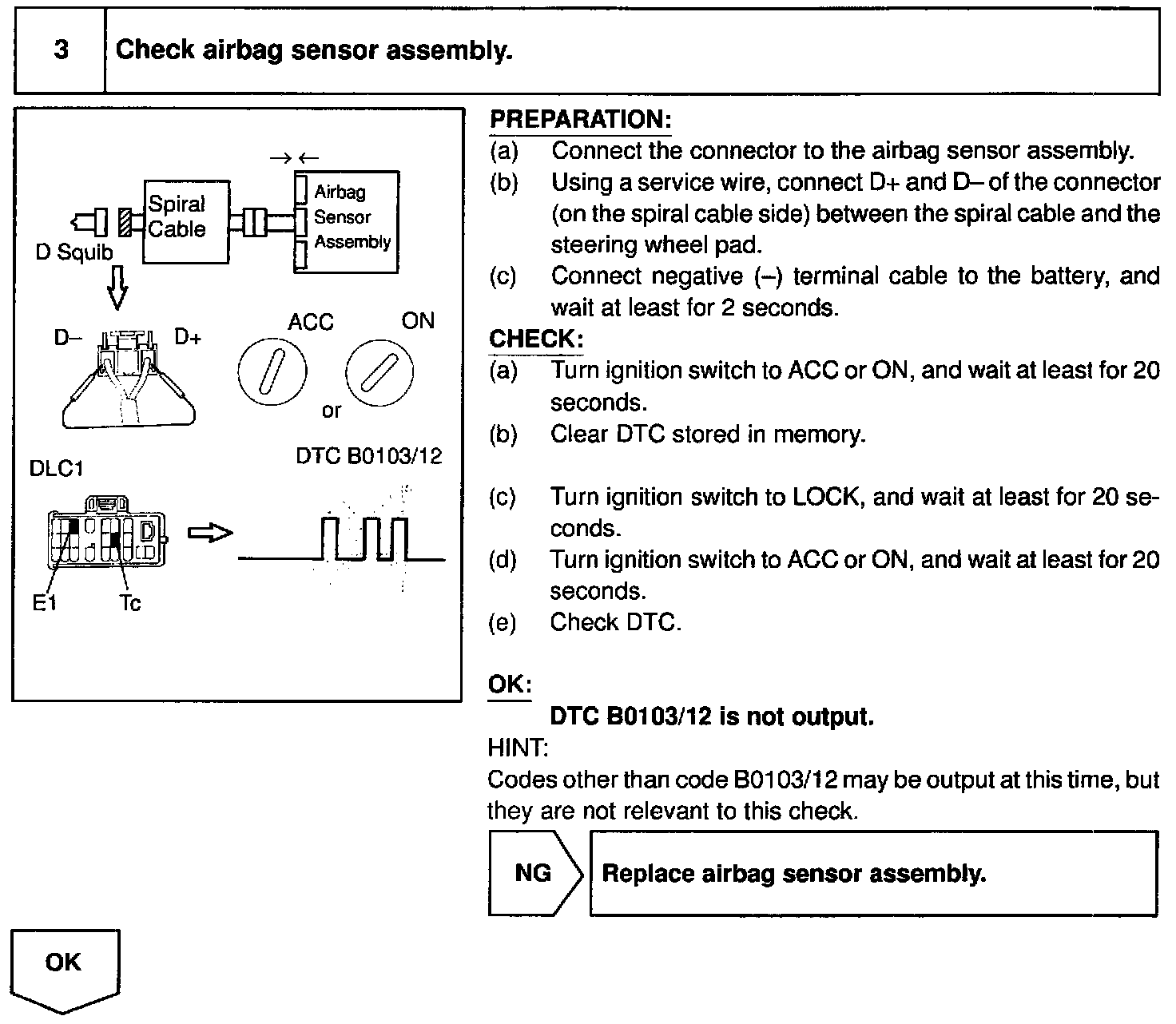

Step 3/Check airbag sensor assembly.

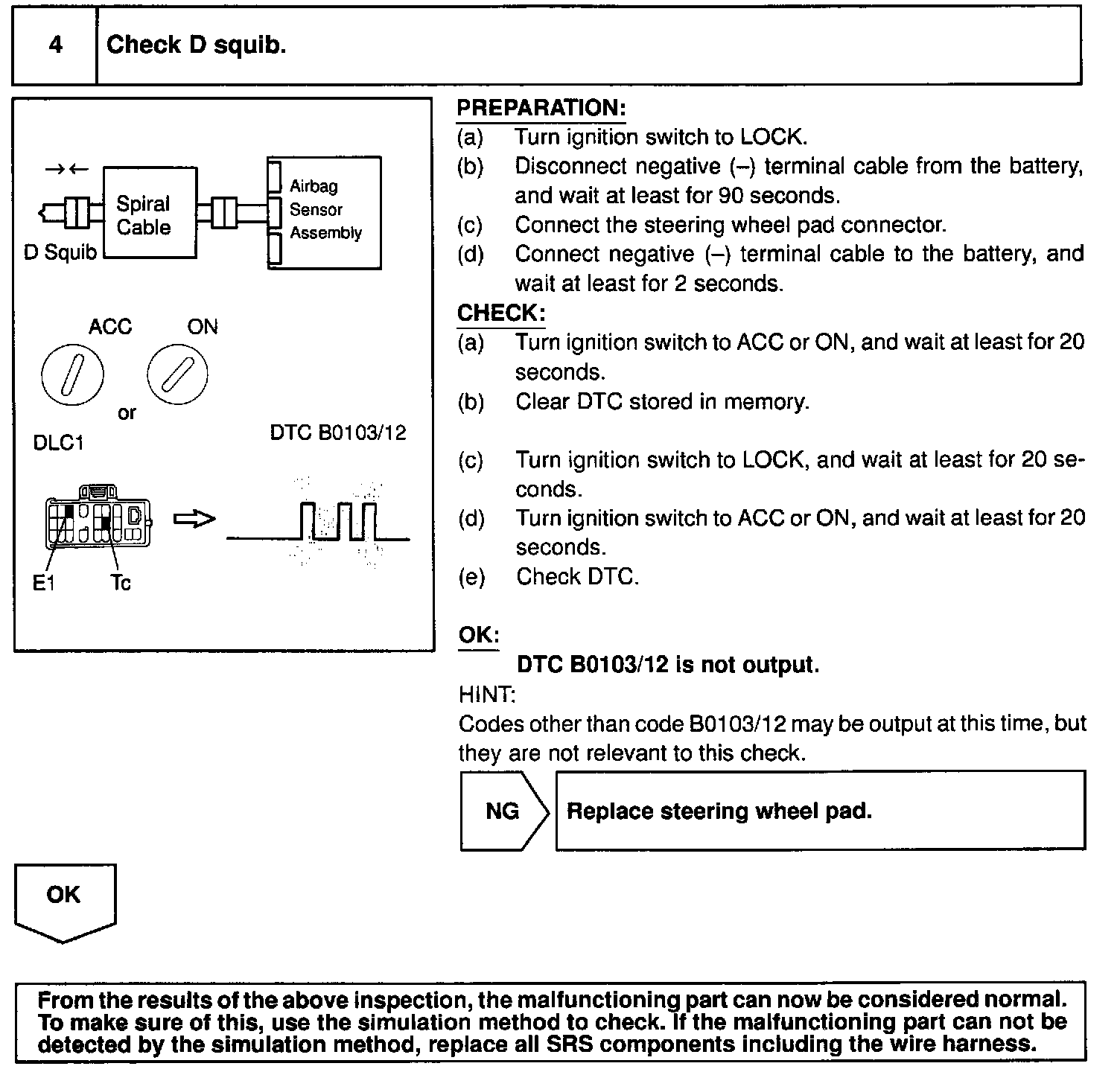

Step 4/Check D squib.

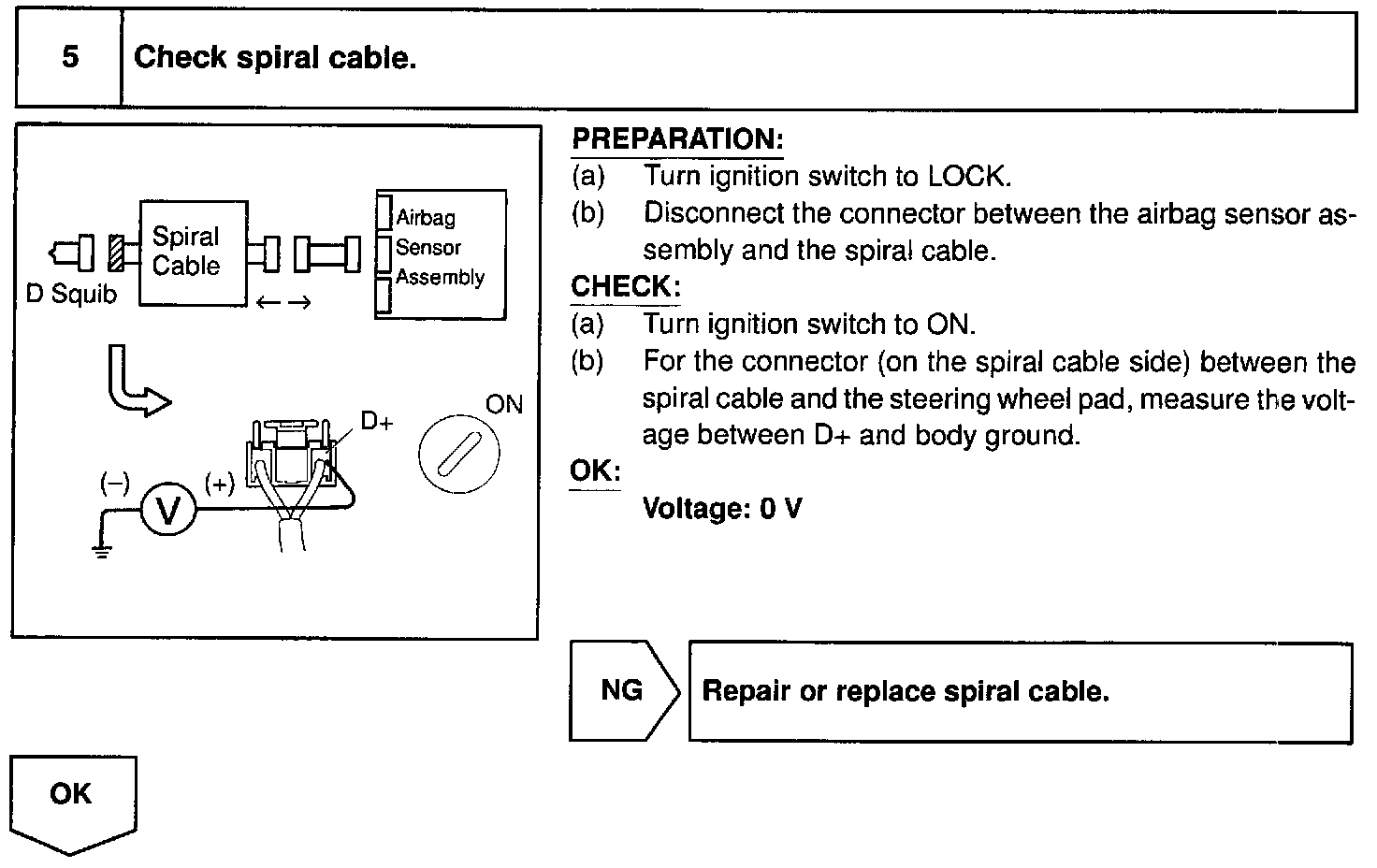

Check spiral cable.

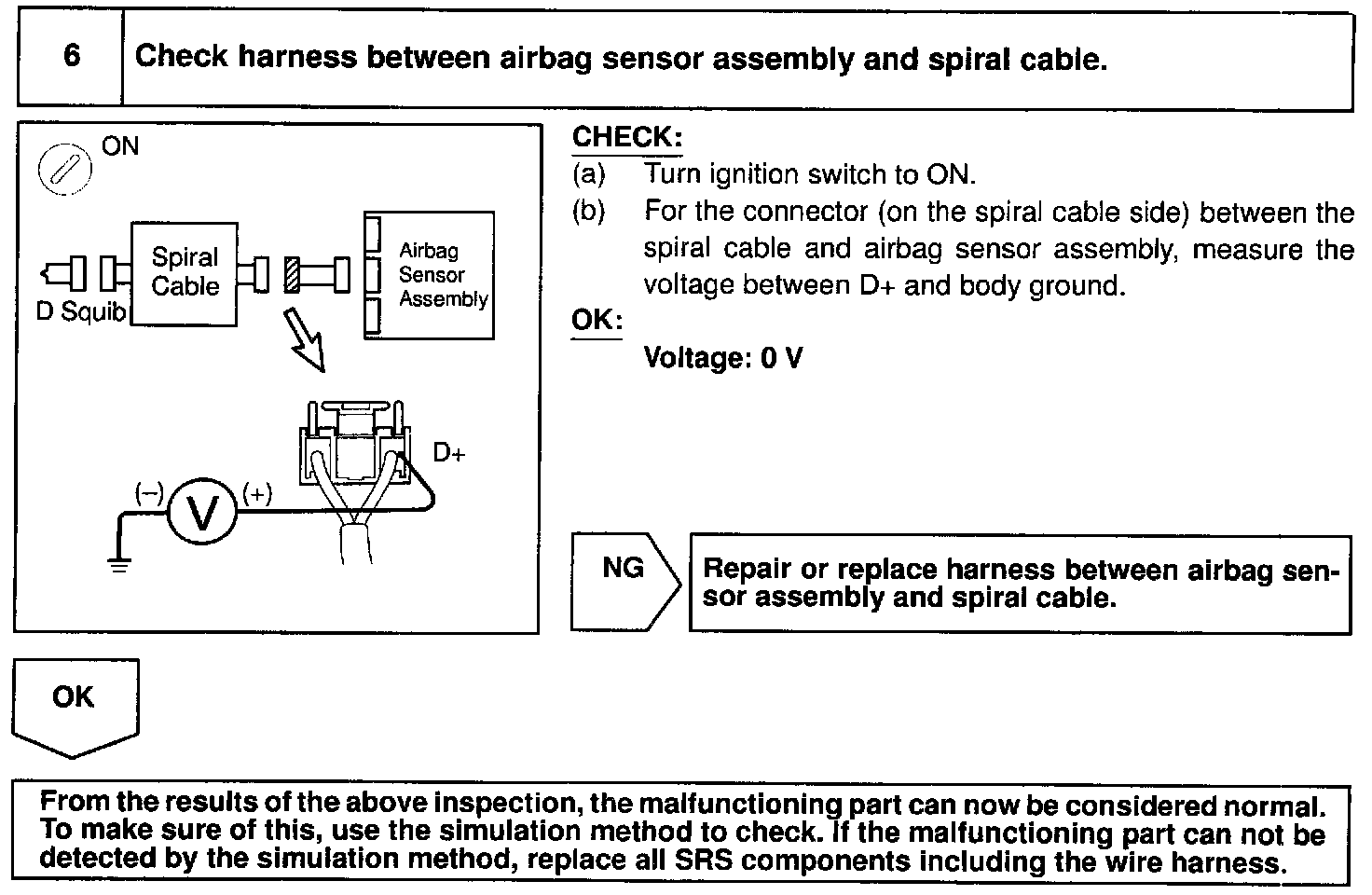

Check harness between airbag sensor assembly and spiral cable.
