B0102

CIRCUIT DESCRIPTION




The D squib circuits consist of the airbag sensor assembly, spiral cable, steering wheel pad.
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each component, see OPERATION.

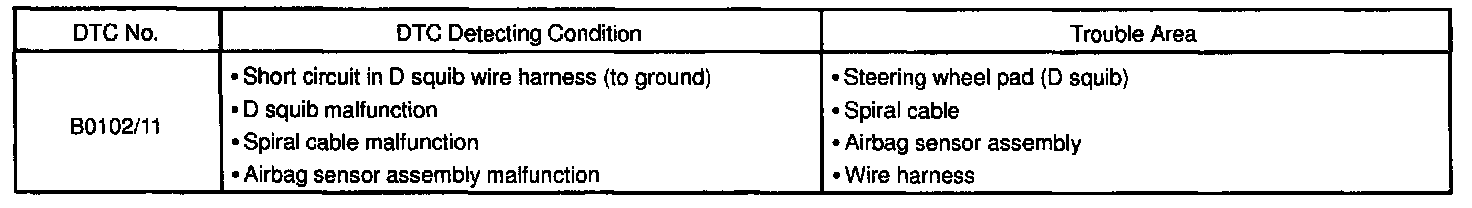

DTC B0102/11 is recorded when ground short is detected in the D squib circuits.




WIRING DIAGRAM

INSPECTION PROCEDURE

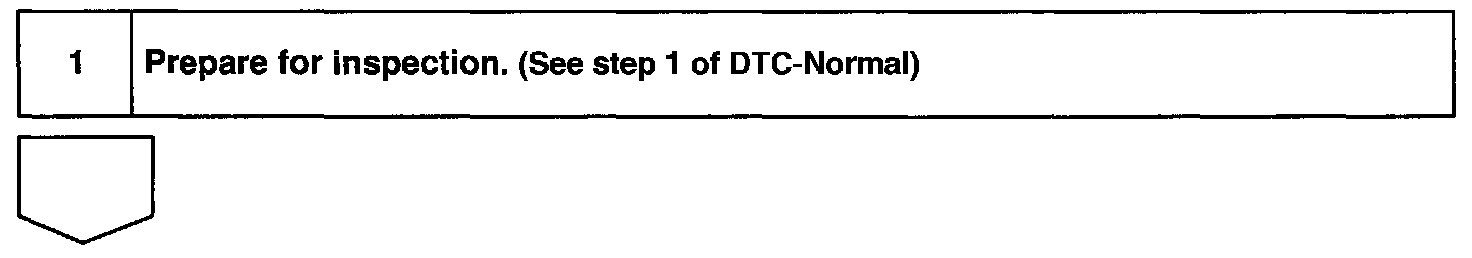

Step 1/Prepare for Inspection

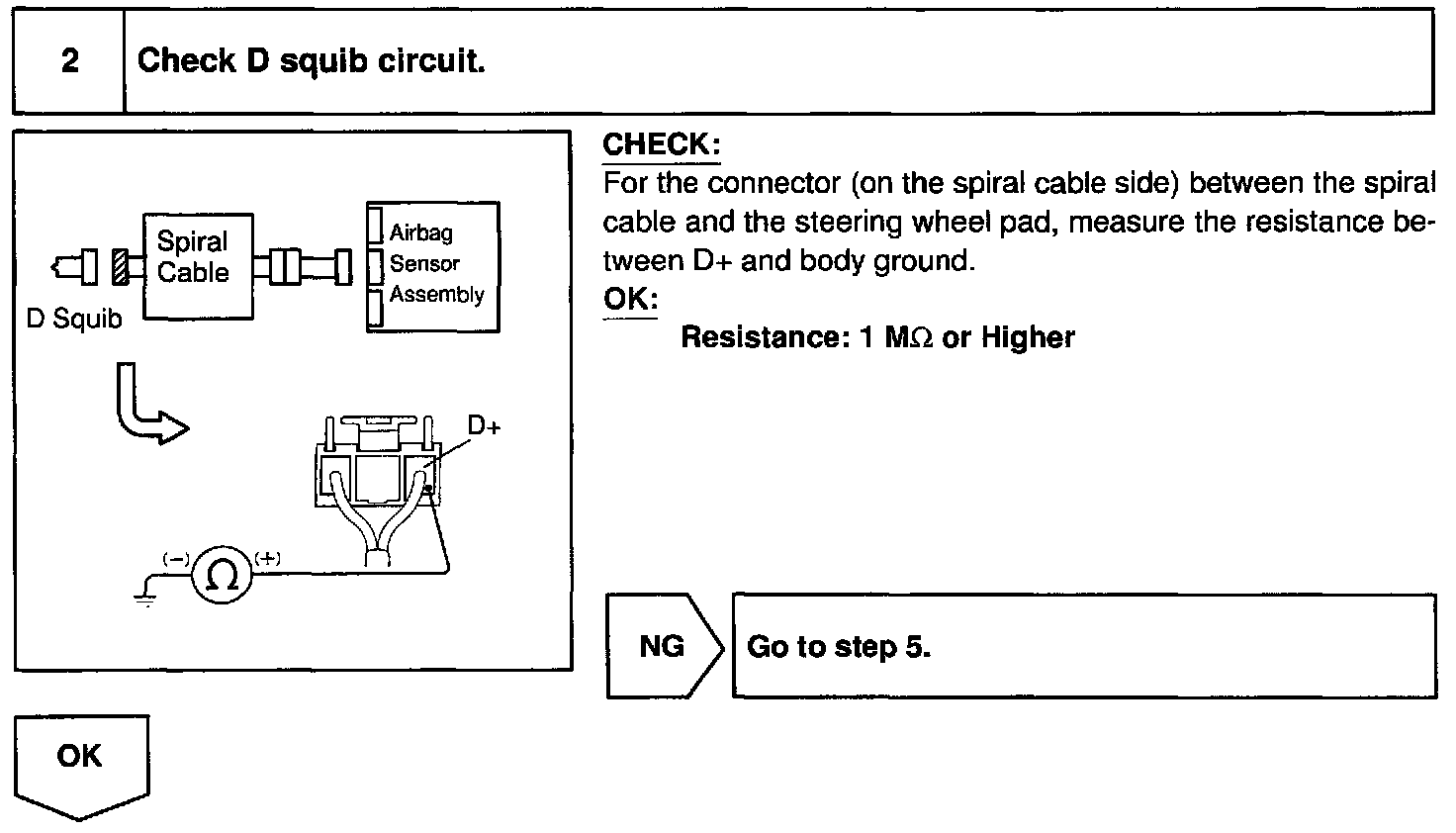

Step 2/Check D squib circuit

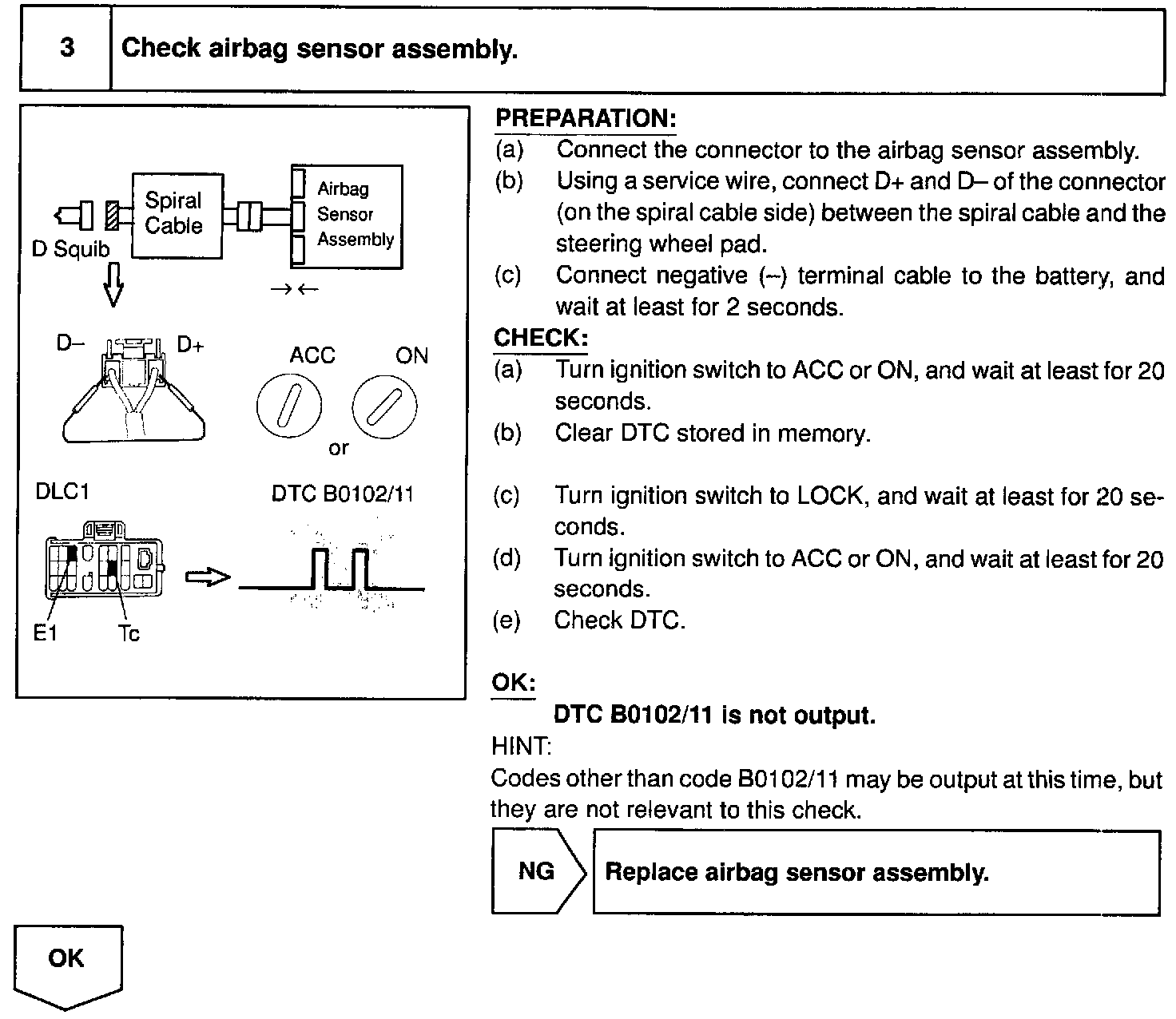

Step 3/Check airbag sensor assembly.

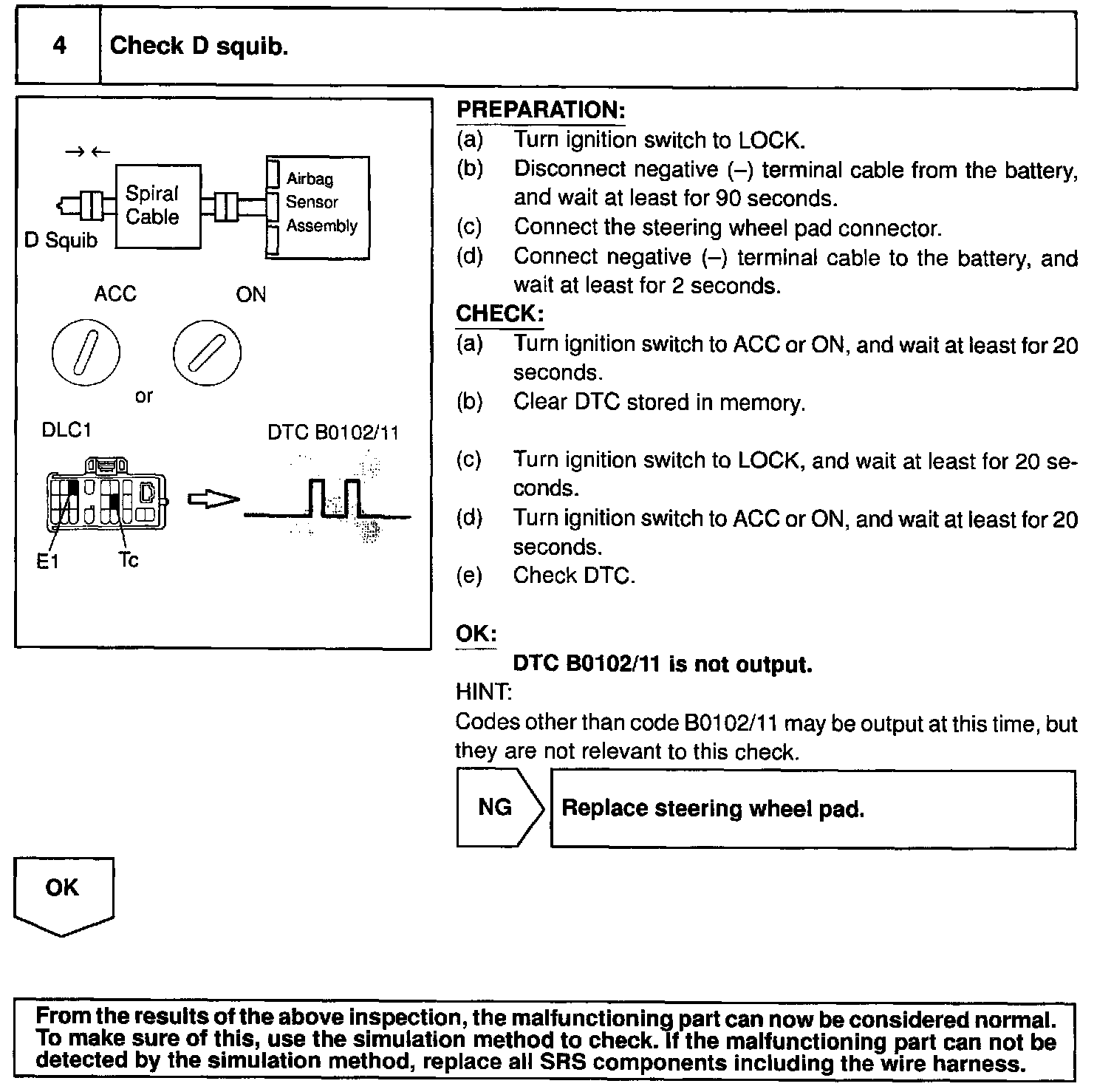

Step 4/Check D squib

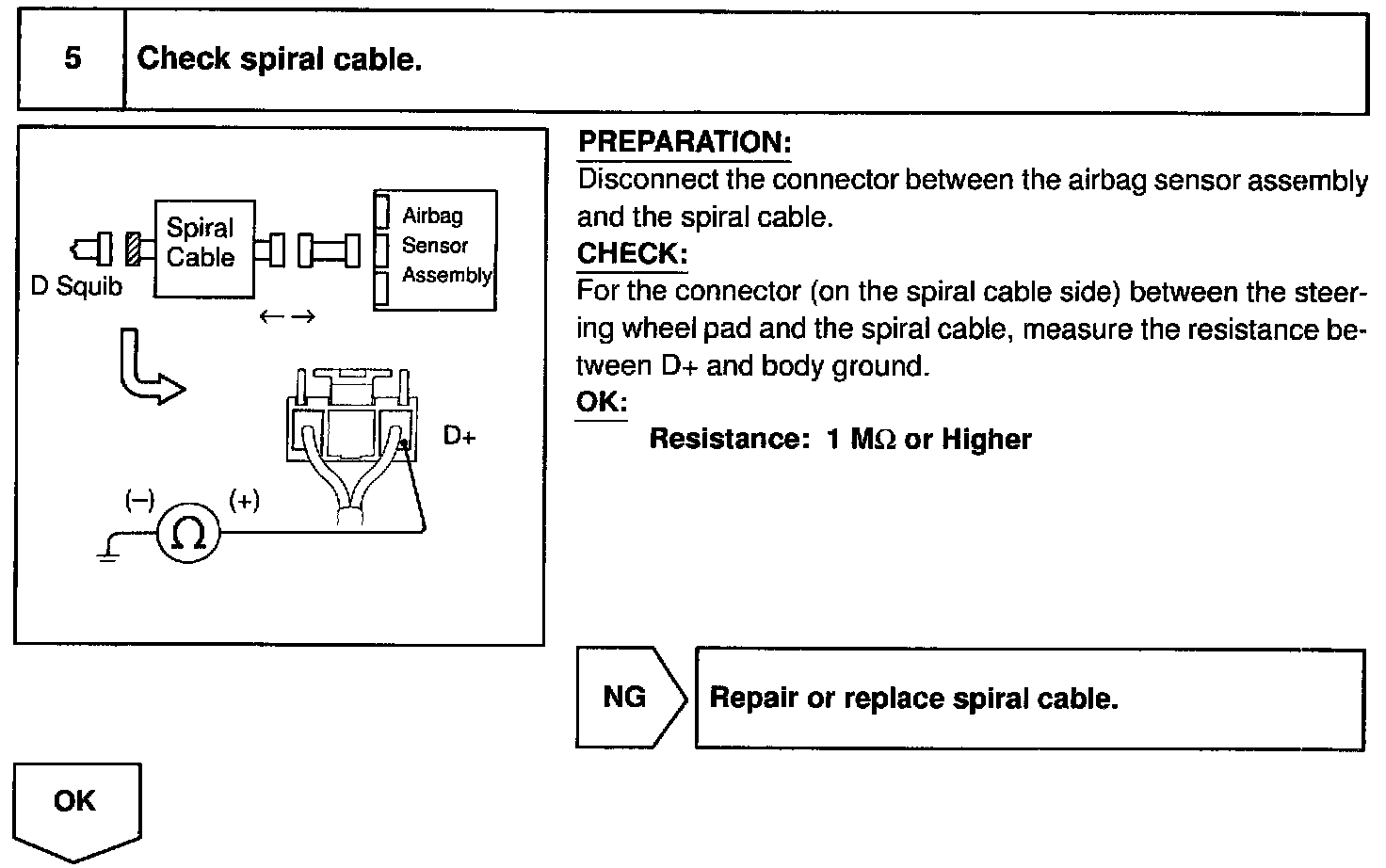

Step 5/Check spiral cable.




Step 6/Check harness between airbag sensor assembly and spiral cable.
