Home >> Lexus >> 1998 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

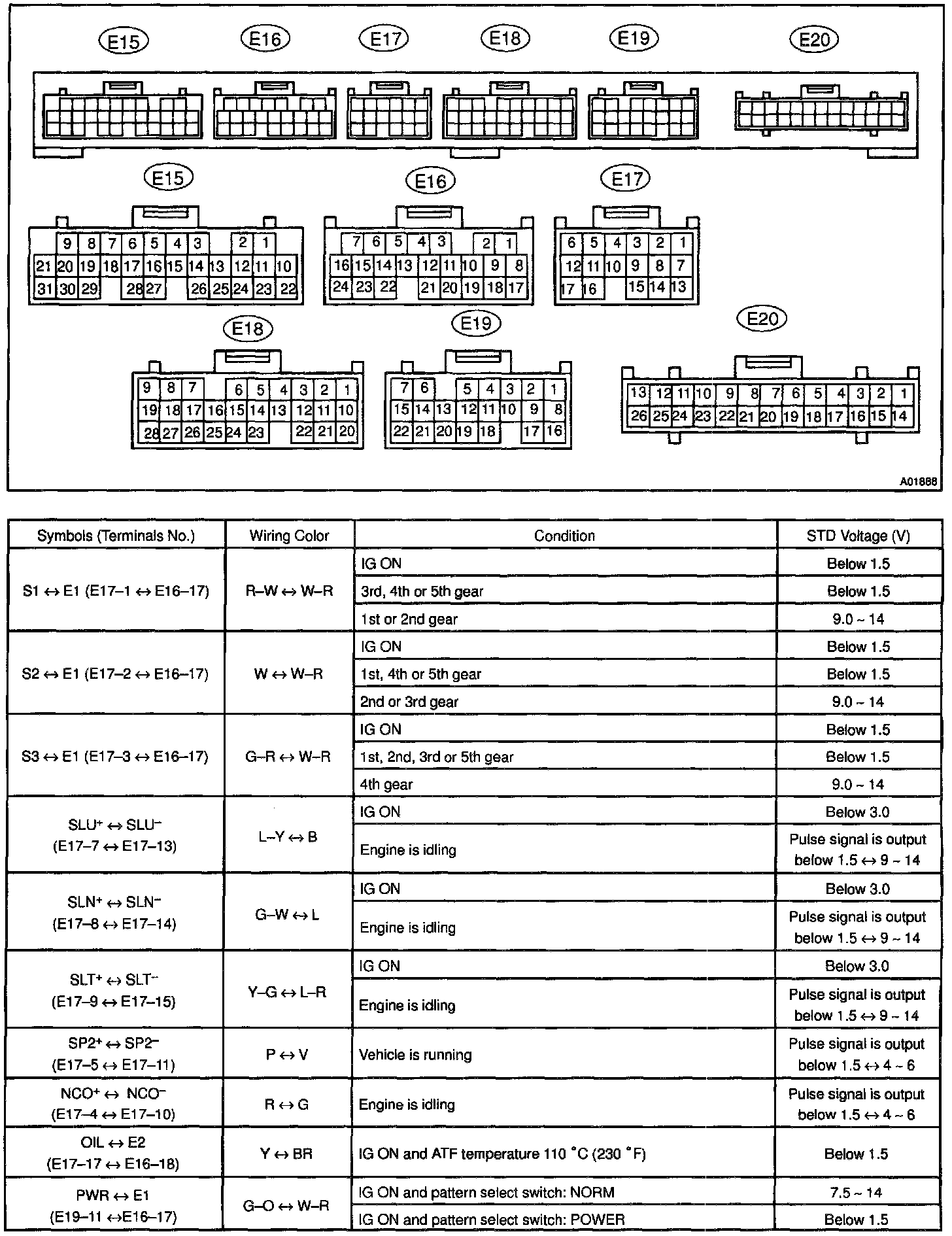

ECM Pinout Values Part 1 Of 2:

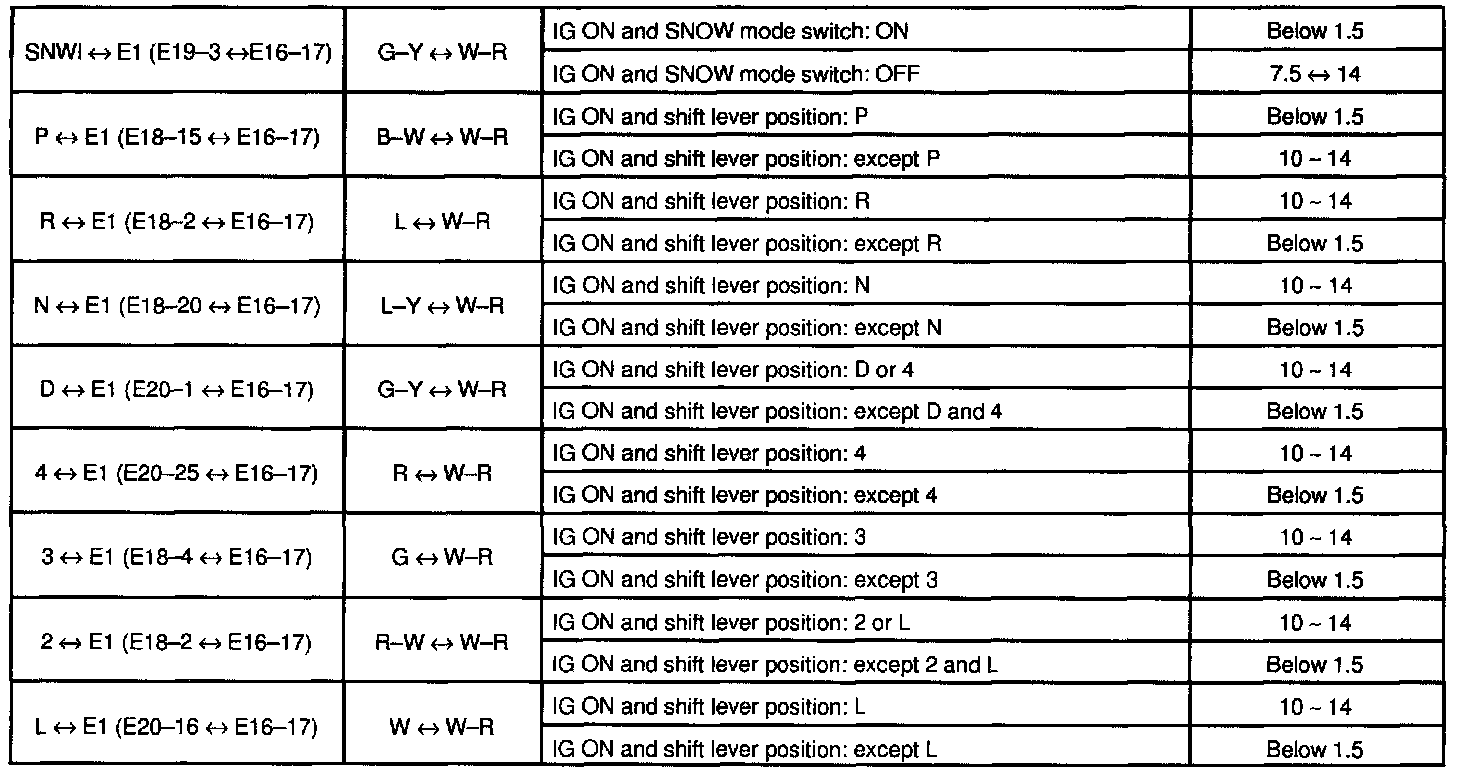

ECM Pinout Values Part 2 Of 2:
