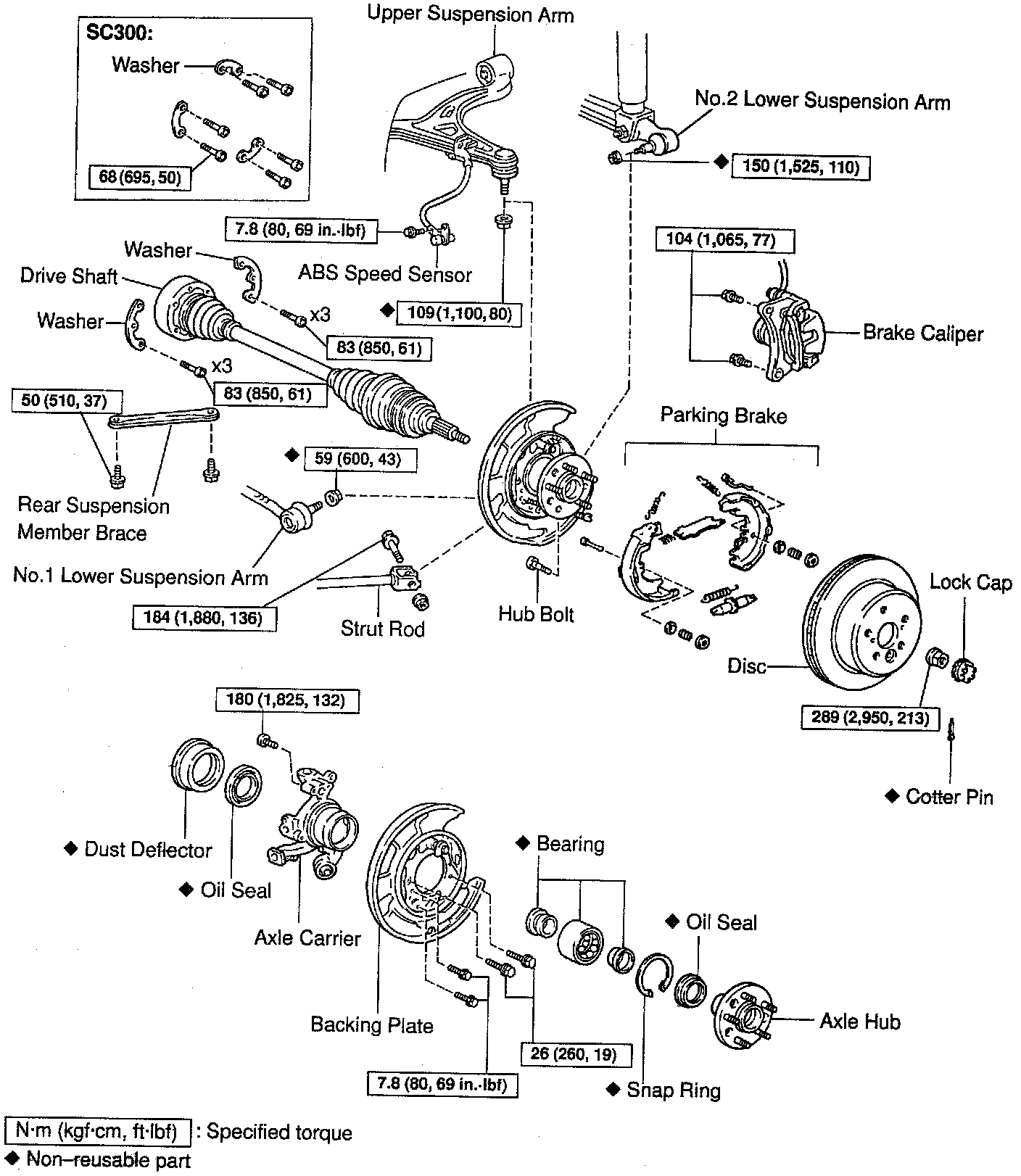

Disassembly and Assembly

DISASSEMBLY
1. Remove dust deflector.
Using a screwdriver, remove the dust deflector.

Fig. 13 Removing Inner Oil Seal:

2. Remove oil seal (inside).
a. Mount the axle carrier in a vise.

HINT: Use a set of soft jaws in the vise to protect the axle carrier.

NOTICE: Do not tighten the vise too tight.

b. Using Special Service Tool (SST) 09308-00010 or equivalent, remove the oil seal.
3. Remove axle hub from carrier. Using SST 09520-00031 or equivalent, remove the axle hub from the axle carrier.





a. Using SST 09520-00031 or equivalent, remove the axle hub.
b. Remove the backing plate.





c. Using SST 09950-40010 (09951-04010, 09952-04010, 09953-04020, 09954-04010, 09955-04010, 09957-04010, 09958-04010), 09950-60010 (09951-00420) or equivalents, remove the inner race (outside) from the axle hub.

Fig. 16 Removing Oil Seal (outer):

4. Remove oil seal (outside).
Using SST 09308-00010 or equivalent, remove the oil seal.
5. Remove bearing.
a. Using snap ring pliers, remove the snap ring.
b. Temporarily install the inner race (inside) to the bearing.





c. Using SST 09950-60010 (09951-00560), 09950-70010 (09951-07150) or equivalent, and a press, remove the bearing.

REASSEMBLY
1. Install bearing.





a. Using SST 09309-36010, 09608-32010 or equivalents, and a press, install the bearing to the axle carrier.

NOTICE: If the inner races come loose from the bearing outer race, be sure to install them on the same side as before.

b. Using snap ring pliers, install a new snap ring.
2. Install oil seal (outside).
a. Install the inner race (outside).





b. Using SST 09608-32010 or equivalent, and a hammer, install a new oil seal.
c. Apply Multipurpose (MP) grease to the oil seal lip.

NOTICE: Be careful not to damage the oil seal.

3. Install axle hub.
a. Temporarily install the backing plate.
b. Install the inner race (inside).





c. Using SST 09608-32010, 09950-60010 (09951-00560) 09950-70010 (09951-07150) or equivalents, and a press, install the axle hub.
4. Install the oil seal (inside).





a. Using SST 09223-15020 or equivalent, and a hammer, install a new oil seal.
b. Apply MP grease to the oil seal lip.





5. Install dust deflector.
Using SST 09950-60020 (09951-01030), 09950-70010 (09951-07150) or equivalents, and a press, install a new dust deflector.

HINT: Align the holes for the Anti-Lock Brake System (ABS) speed sensor in the dust deflector and carrier.
