Unlock Warning Switch Circuit


Unlock Warning Switch Circuit

CIRCUIT DESCRIPTION
Whether or not the key is inserted in the key cylinder is detected and a signal is sent to the ECU. (The switch is ON (closed) when the ignition key is inserted.)

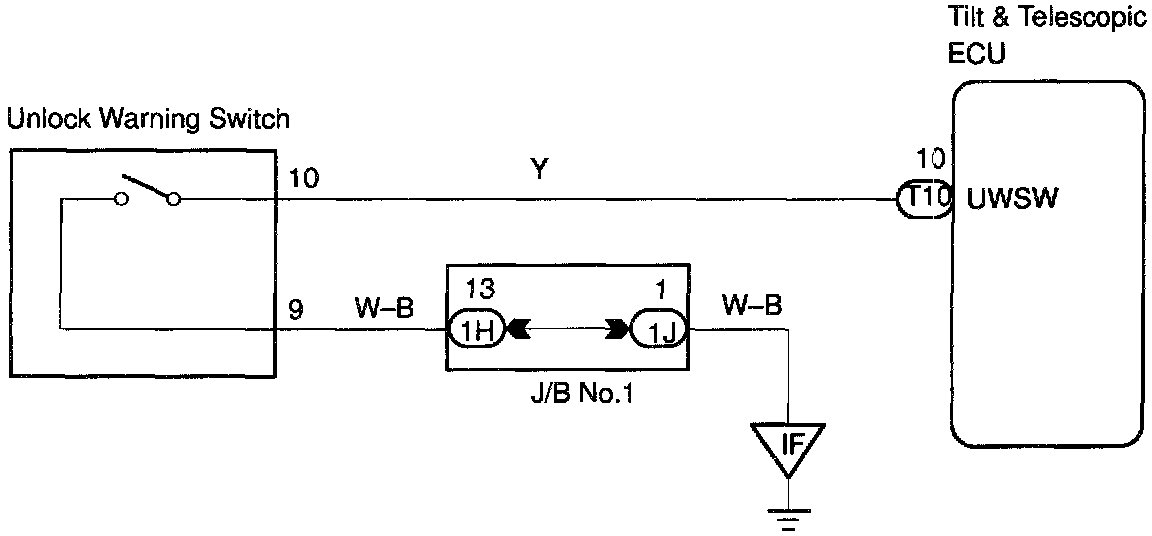

WIRING DIAGRAM

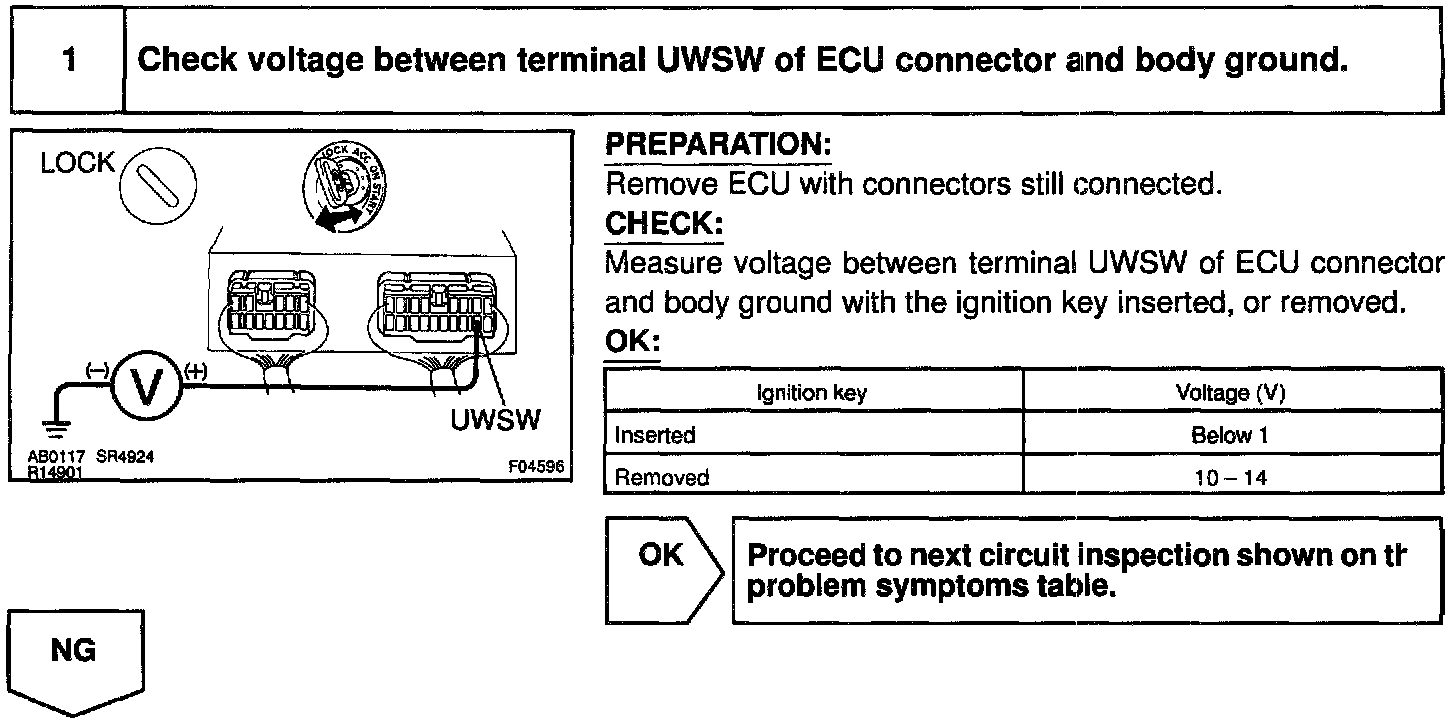

Step 1:

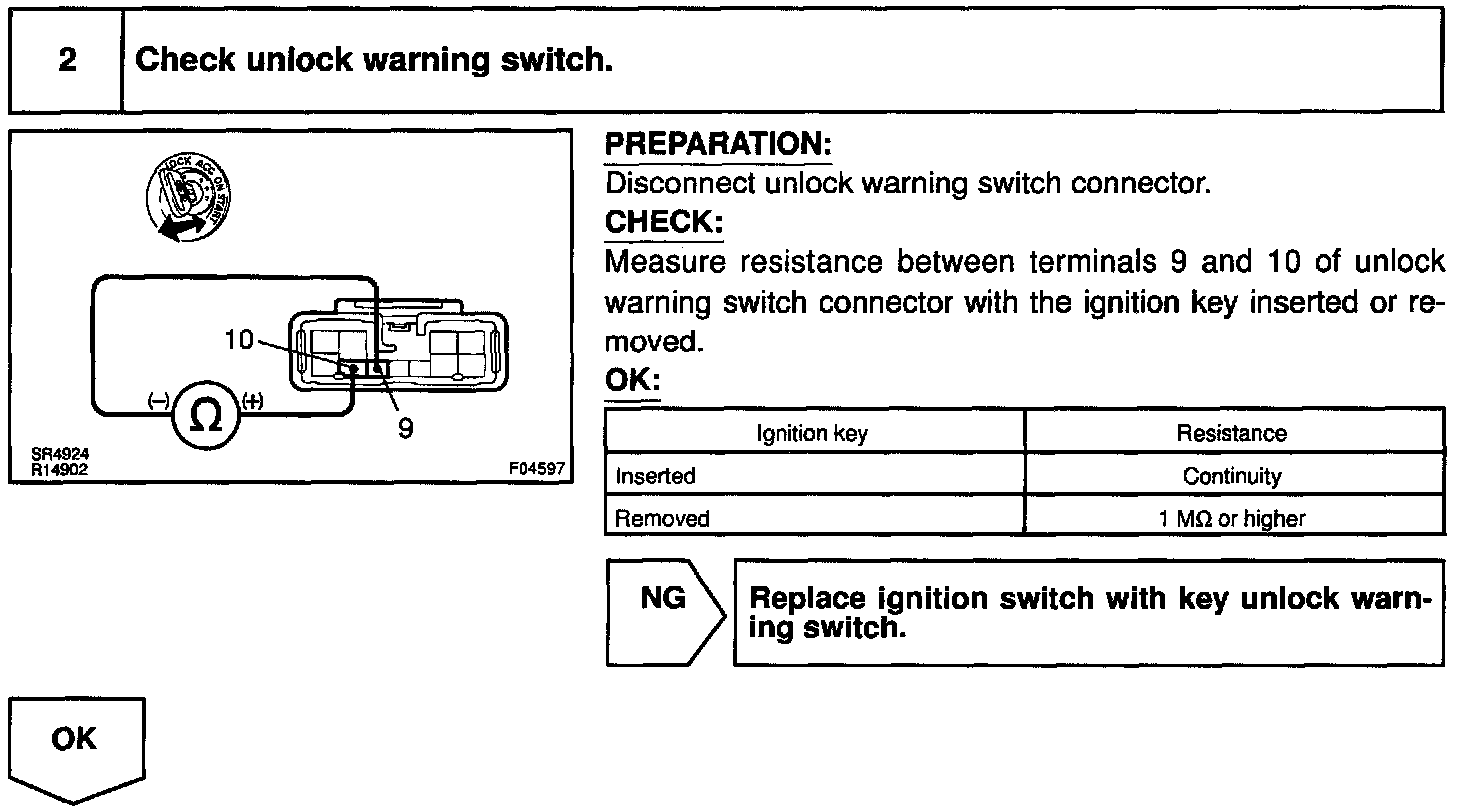

Step 2:

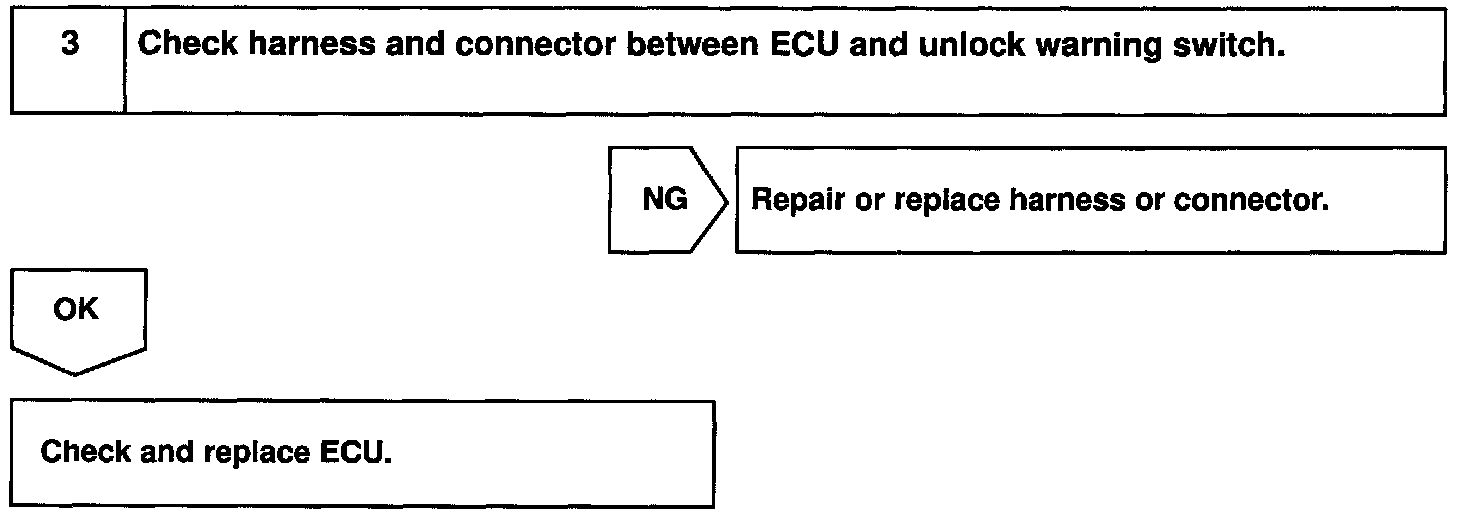

Step 3:





INSPECTION PROCEDURE
