Tilt Motor Circuit
Tilt Motor Circuit
CIRCUIT DESCRIPTION
The ECU provides both +B and ground for the tilt motor. Reversing polarity of the applied voltage reverses the motor.

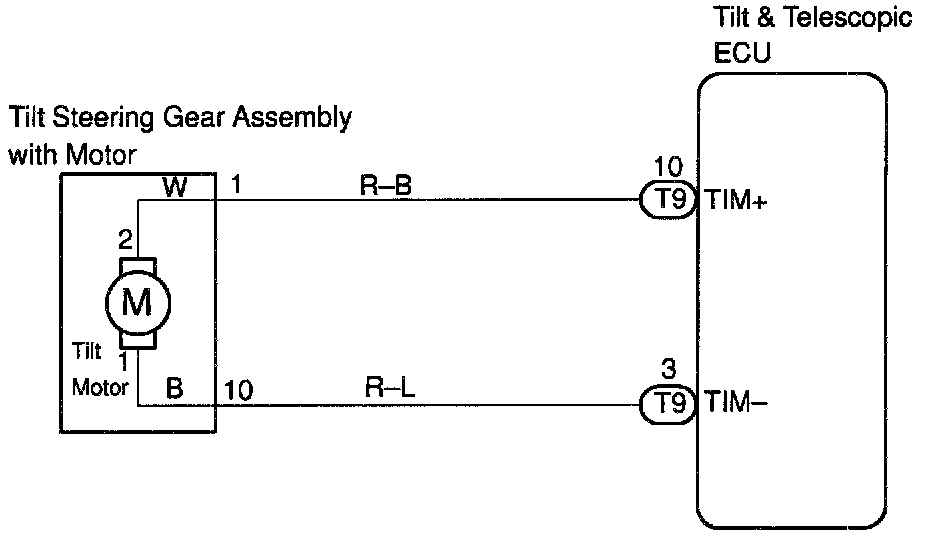

WIRING DIAGRAM

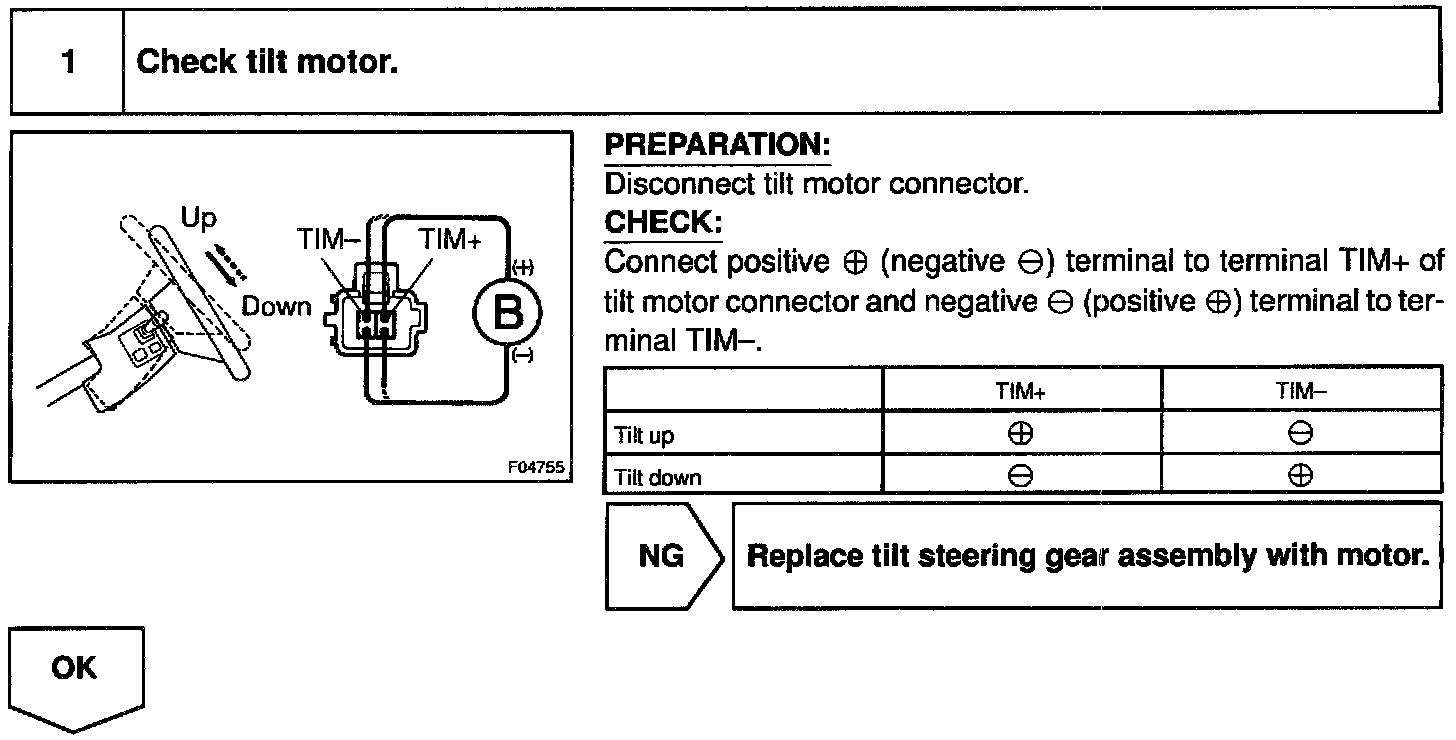

Step 1:

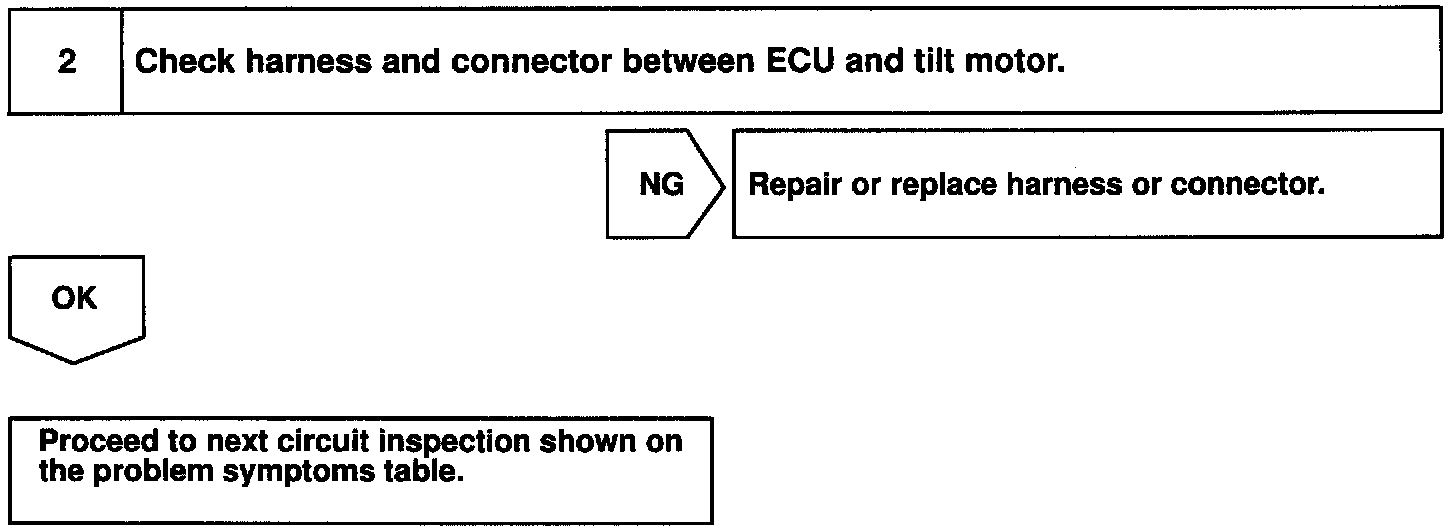

Step 2:
INSPECTION PROCEDURE
Tilt Motor Circuit
CIRCUIT DESCRIPTION
The ECU provides both +B and ground for the tilt motor. Reversing polarity of the applied voltage reverses the motor.
WIRING DIAGRAM
INSPECTION PROCEDURE
