Telescopic Position Sensor Circuit

Telescopic Position Sensor Circuit

CIRCUIT DESCRIPTION
The telescopic position is sent to the ECU as a voltage signal from the position sensor. A constant 5 V supplied to terminal VC of the sensor.

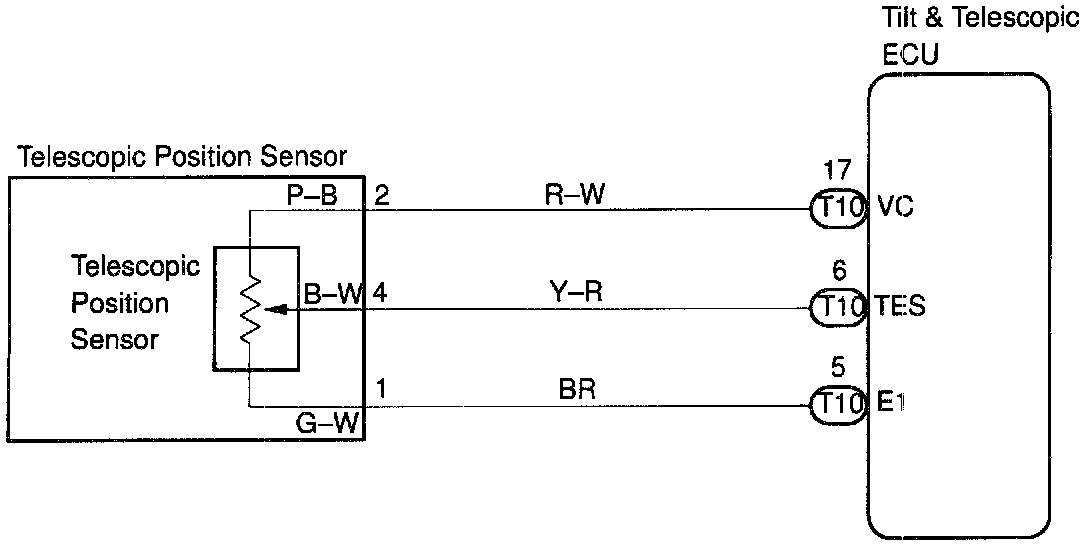

WIRING DIAGRAM

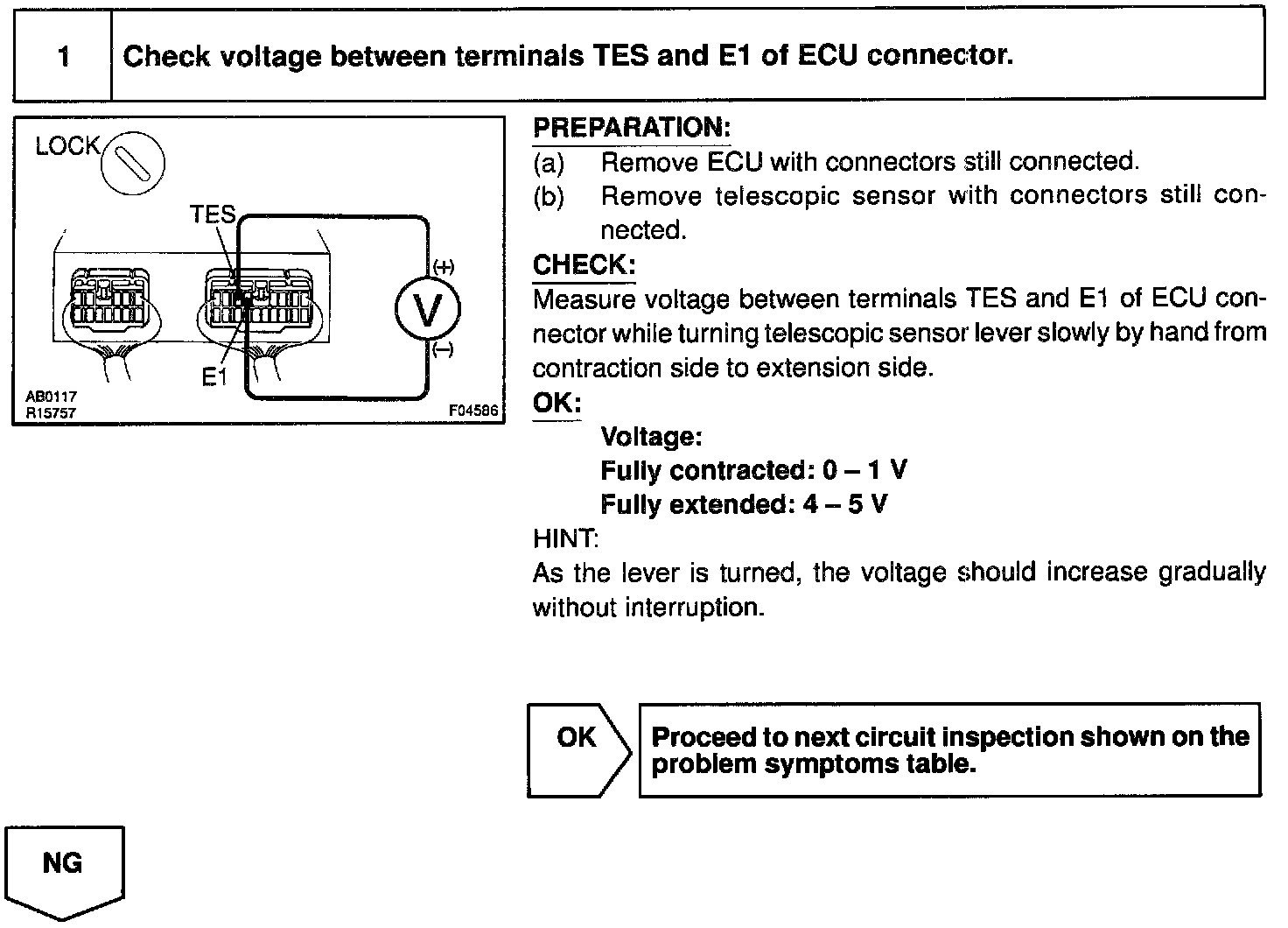

Step 1:

Step 2:

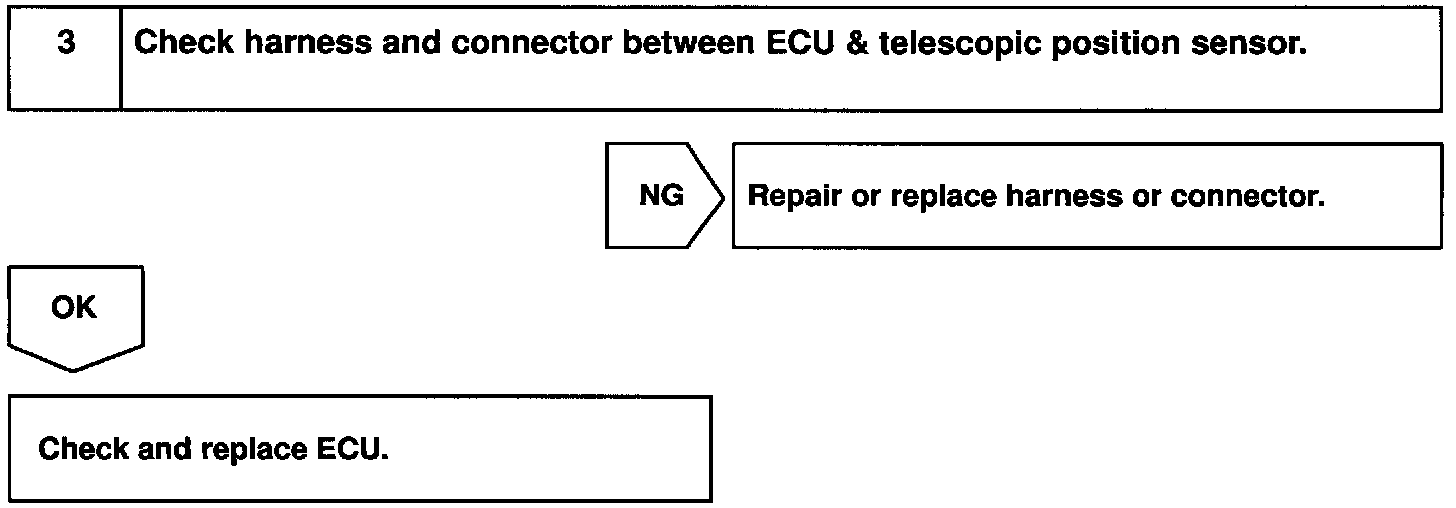

Step 3:

INSPECTION PROCEDURE
