Set Switch Circuit


Set Switch Circuit

CIRCUIT DESCRIPTION
When switch 1 or 2 is pushed while set switch is being pushed ON in memory operation, a signal is sent to the ECU to memorize the present positions of the tilt, telescopic, seat and mirror.

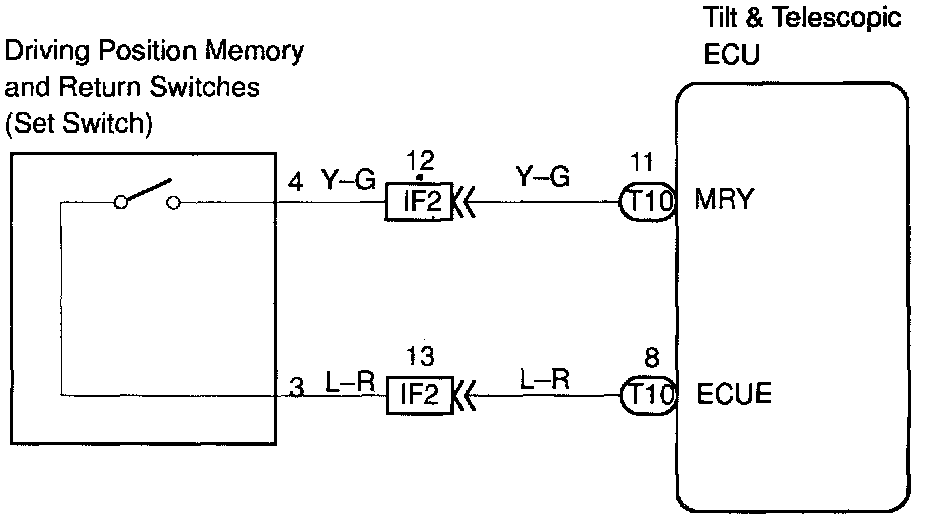

WIRING DIAGRAM

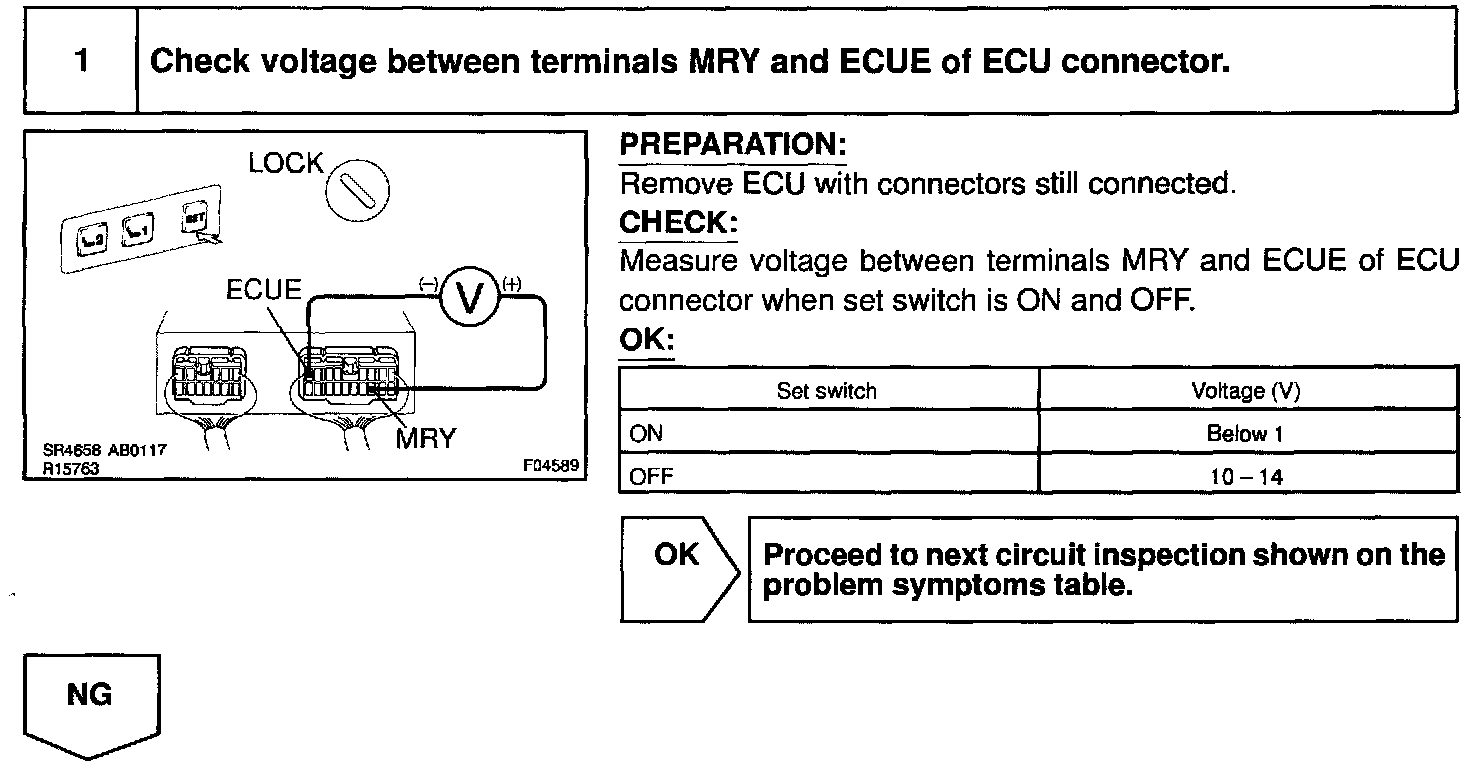

Step 1:

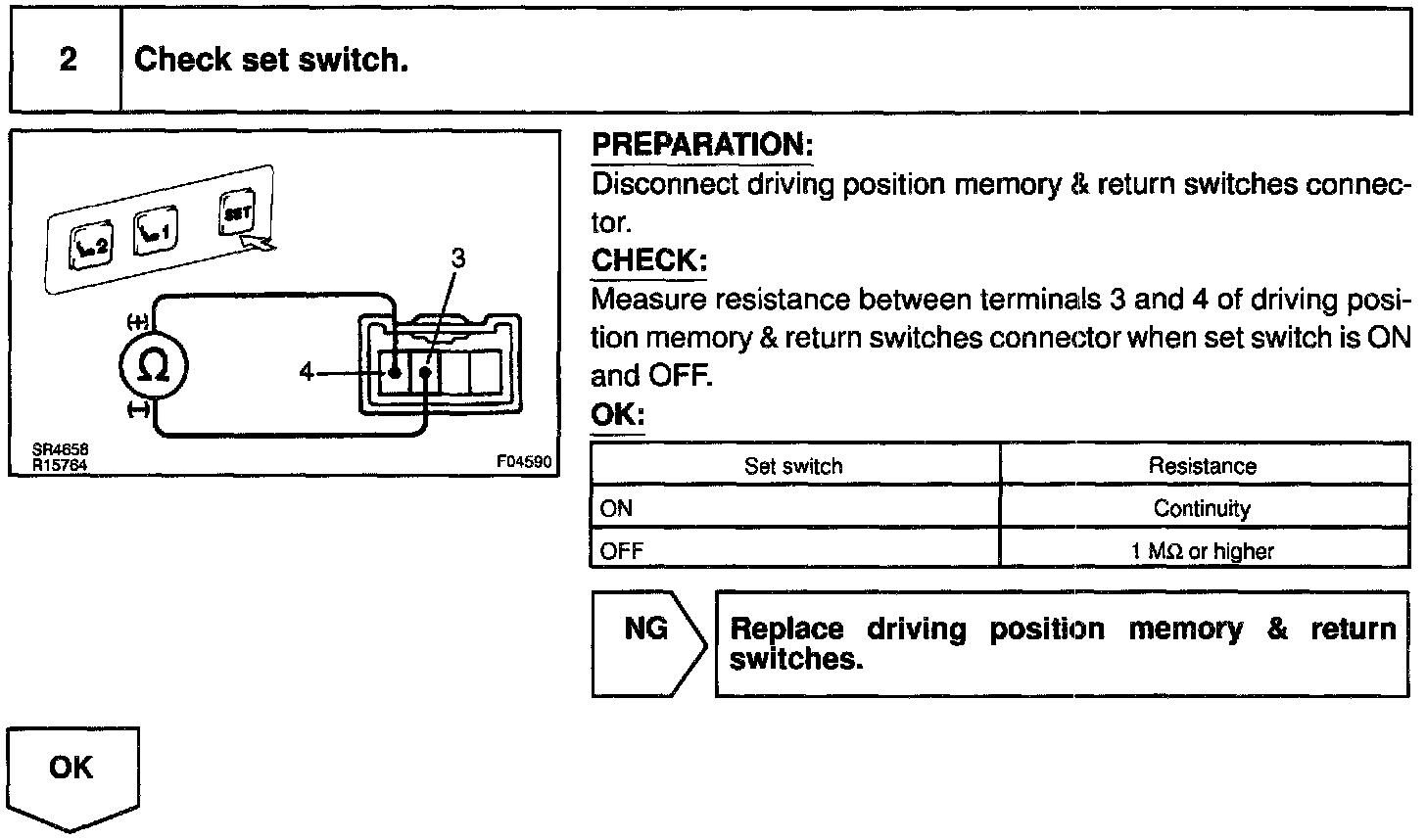

Step 2:

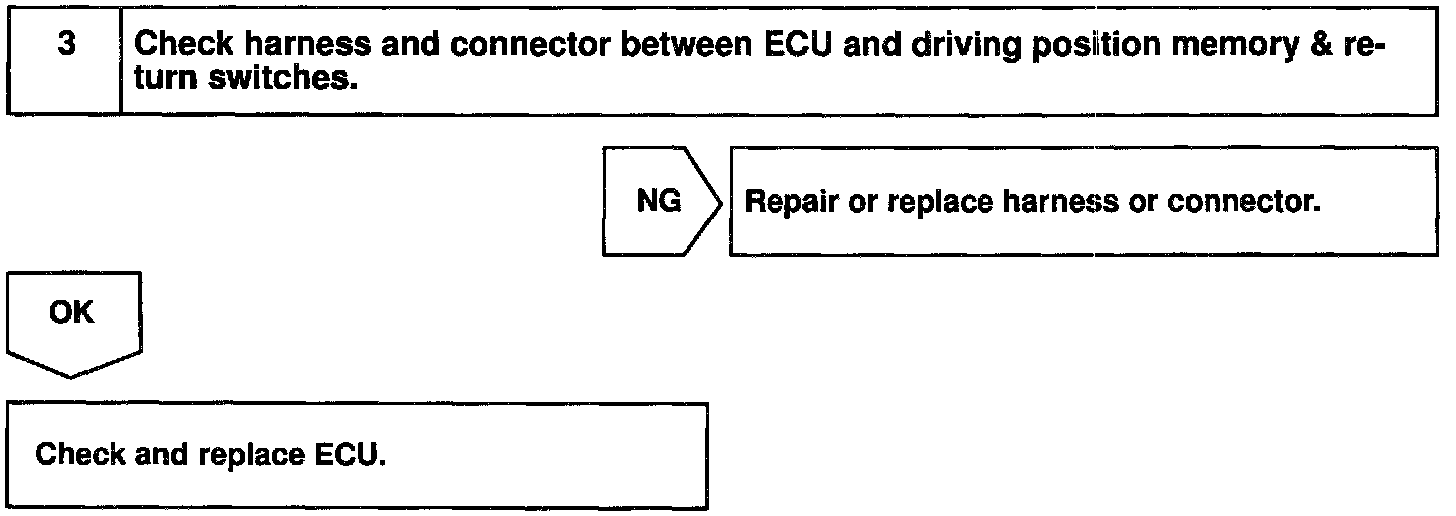

Step 3:





INSPECTION PROCEDURE
