Auto Set Switch Circuit


Auto Set Switch Circuit

CIRCUIT DESCRIPTION
This is the main switch for auto operation. When the switch is OFF, auto operation is prohibited.

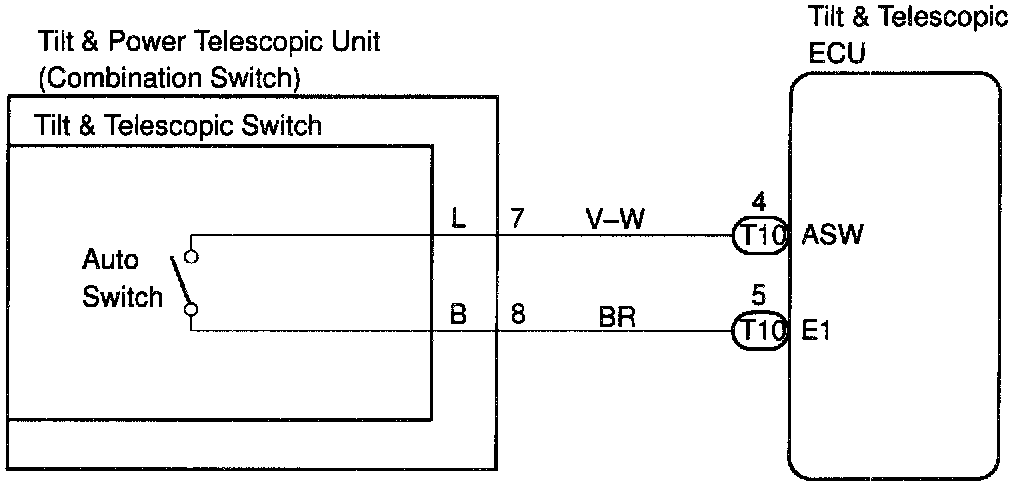

WIRING DIAGRAM

Step 1:




Step 2:




Step 3:

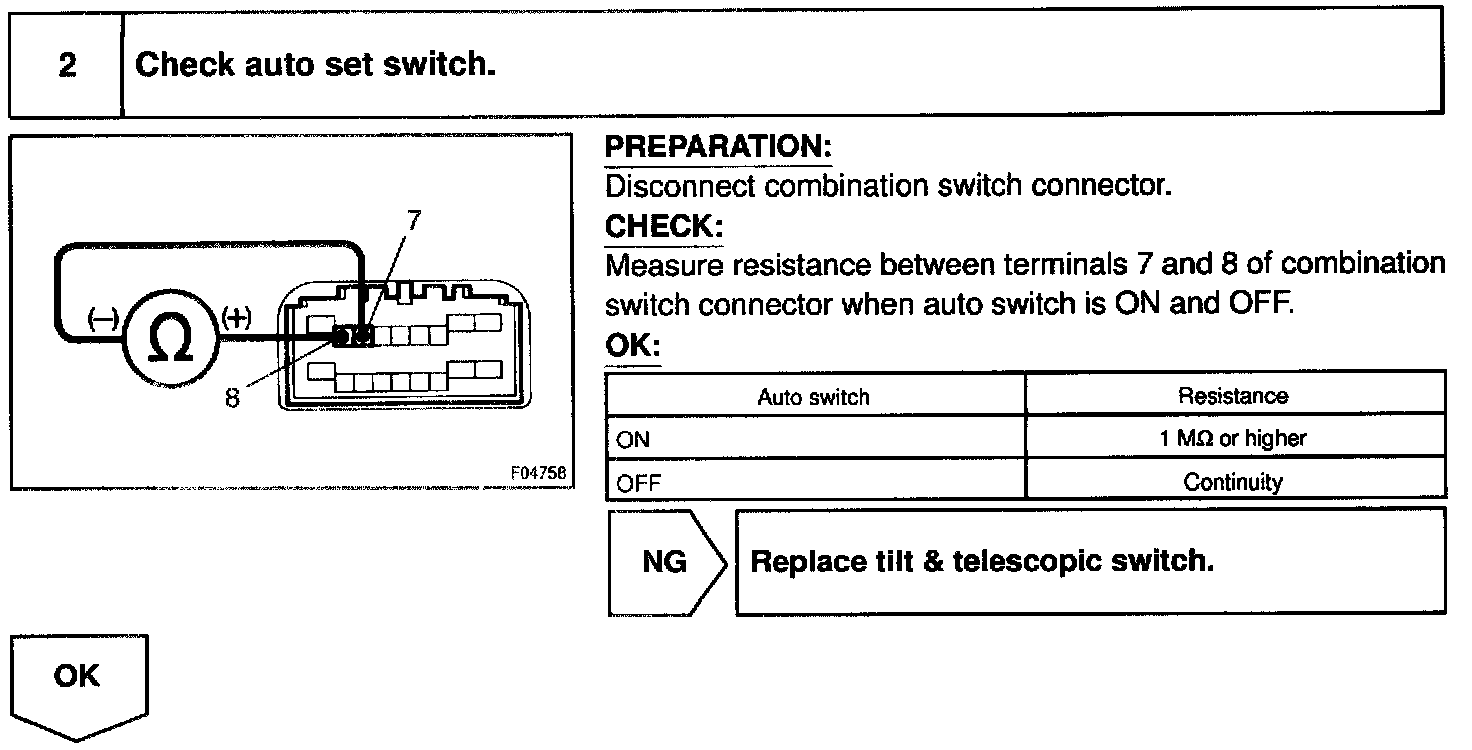

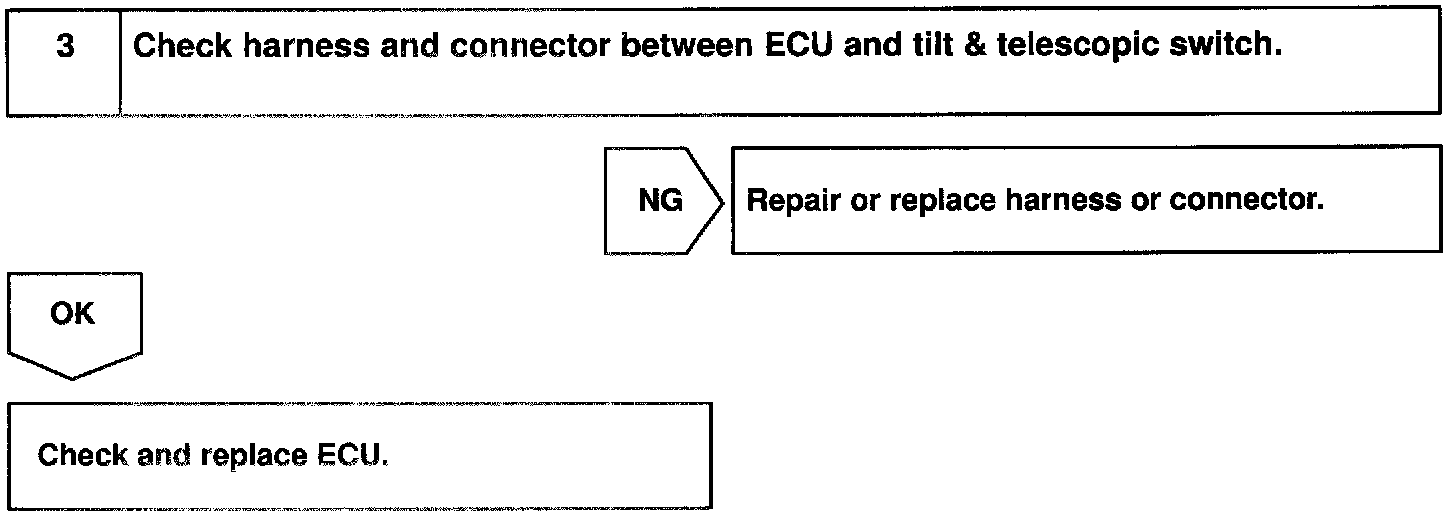

INSPECTION PROCEDURE
