Actuator Power Source Circuit

Actuator Power Source Circuit

CIRCUIT DESCRIPTION
This is the power source for the motor.

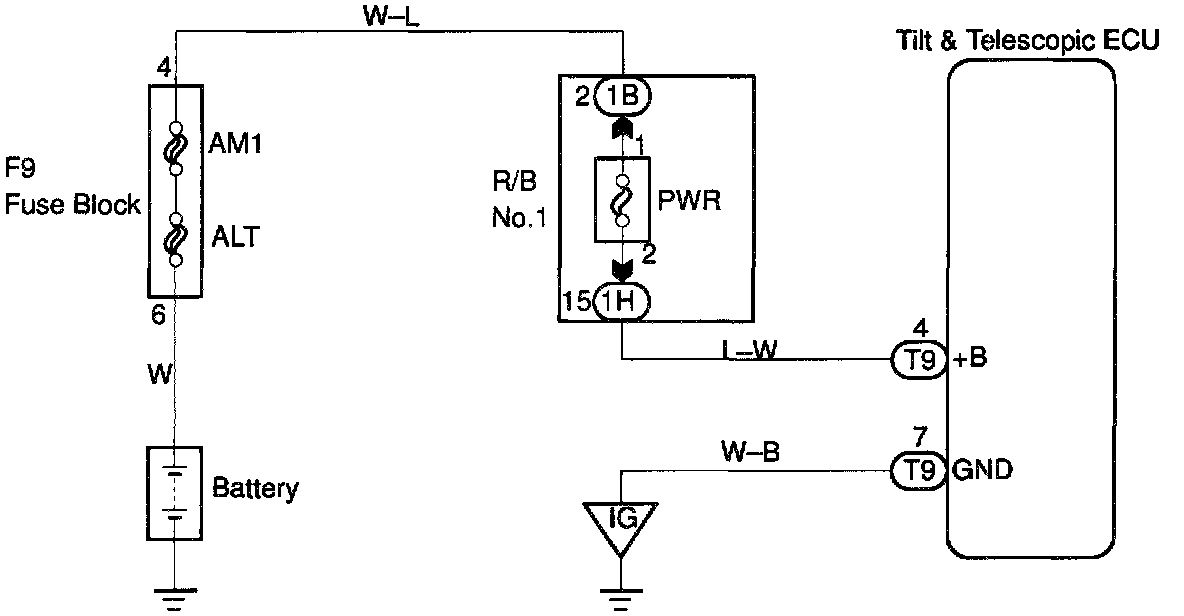

WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

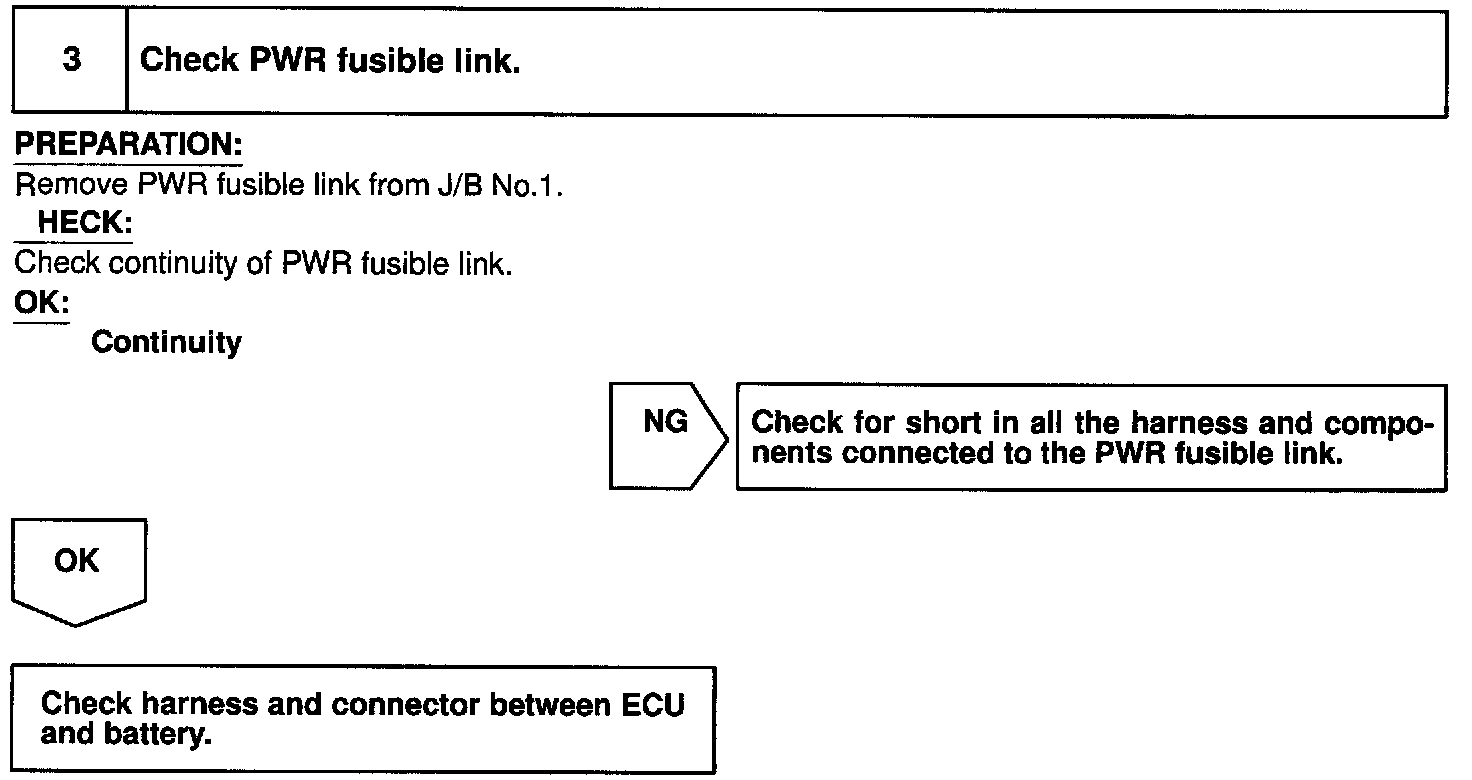

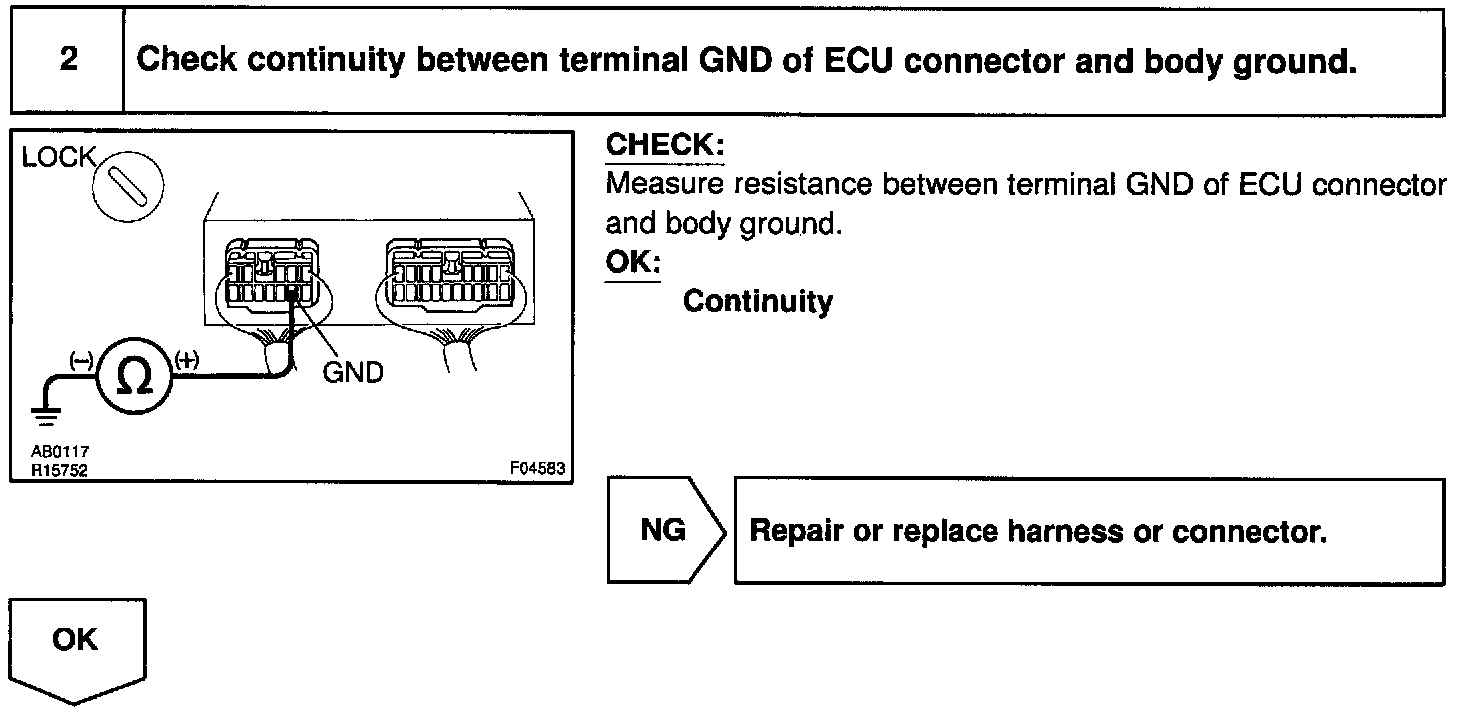

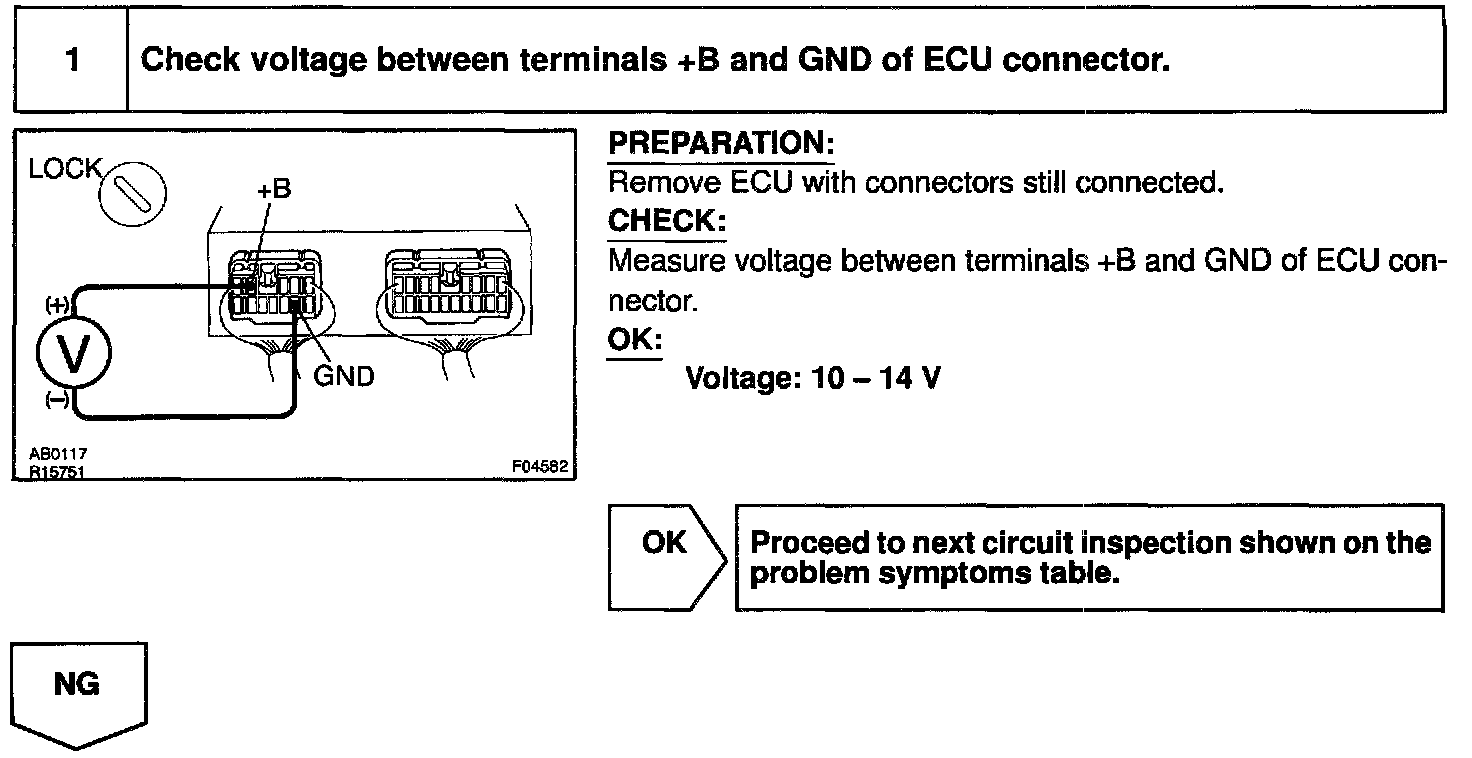

INSPECTION PROCEDURE
