Ground Point Diagrams

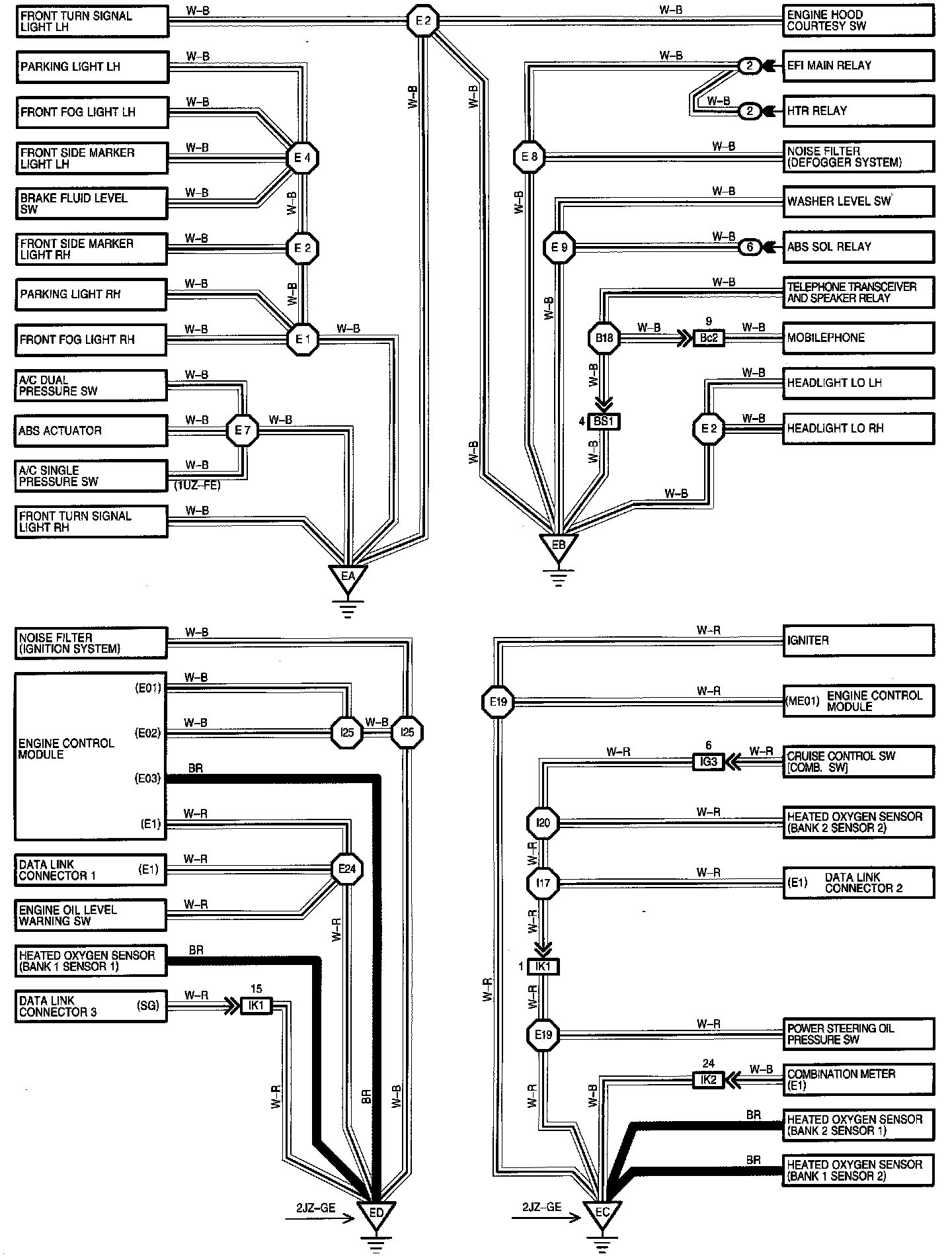

Ground Point (Part 1 Of 4):

Ground Point (Part 1 of 4)
ABS Sol Relay
A/C Dual Pressure SW
A/C Single Pressure SW
Brake Fluid Level SW
Combination Meter
Cruise Control SW
Data Link Connector
EFI Main Relay
Engine Control Module
Engine Hood Courtesy SW
Engine Oil Level Warning SW
Front Turn Signal Light
Front Fog Light
Front Side Marker Light
Heated Oxygen Sensor
Headlight
HTR Relay
Igniter
Mobile Phone
Noise Filter
Parking Light
Power Steering Oil Pressure SW
Telephone Transceiver And Speaker Relay
Washer Level SW

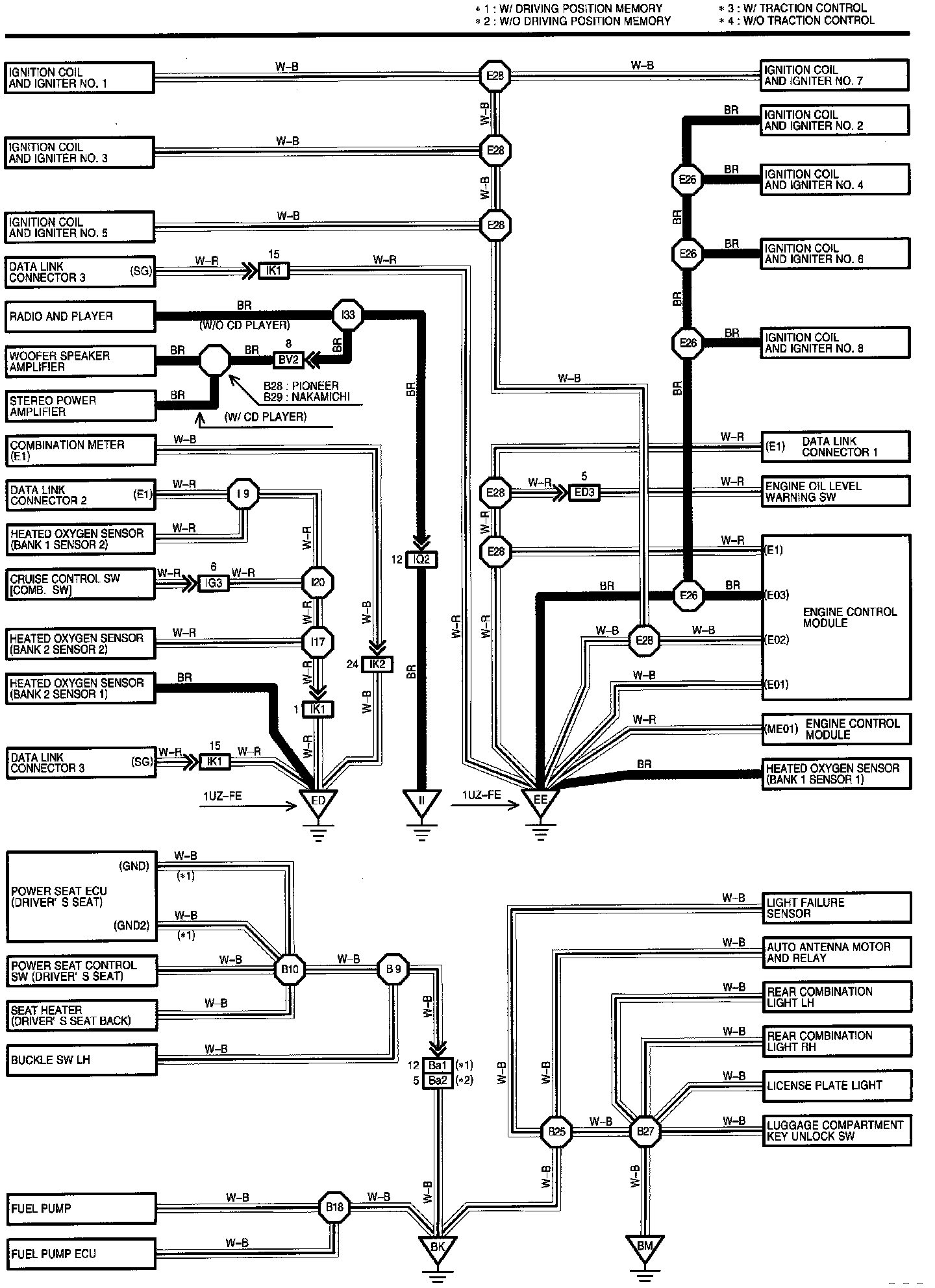

Ground Point (Part 2 Of 4):

Ground Point (Part 2 of 4)
Auto Antenna Motor And Relay
Buckle SW
Cruise Control SW
Fuel Pump
Fuel Pump ECU
Ignition Coil And Igniter
Light Failure Sensor
License Plate Light
Luggage Compartment Key Unlock SW
Power Seat ECU
Power Seat Control SW
Radio And Player
Rear Combination Light
Seat Heater
Stereo Power Amplifier
Woofer Speaker Amplifier

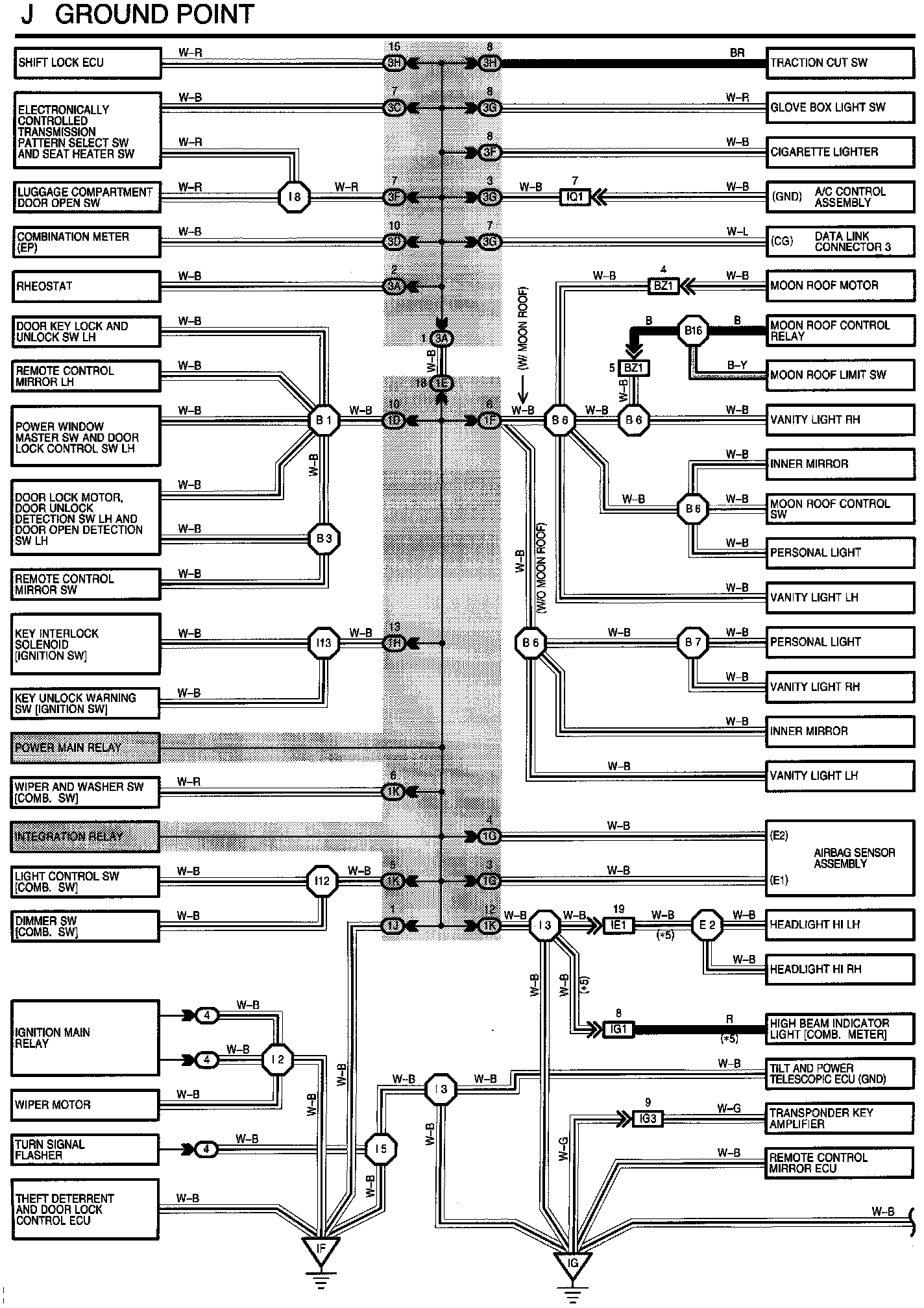

Ground Point (Part 3 Of 4):

Ground Point (Part 3 of 4)
A/C Control Assembly
Airbag Sensor Assembly
Cigarette Lighter
Dimmer SW
Door Key Lock And Unlock SW
Electronically Controlled Transmission Pattern Select SW And Seat Heater SW
Glove Box Light SW
High Beam Indicator Light
Ignition Main Relay
Inner Mirror
Integration Relay
Key Interlock Solenoid
Key Unlock Warning SW
Light Control SW
Luggage Compartment Door Open SW
Moon Roof Motor
Moon Roof Control Relay
Moon Roof Limit SW
Moon Roof Control SW
Personal Light
Power Main Relay
Power Window Master SW And Door Lock Control SW
Remote Control Mirror
Remote Control Mirror SW
Rheostat
Shift Lock ECU
Theft Deterrent And Door Lock Control ECU
Tilt And Power Telescopic ECU
Traction Cut SW
Transponder Key Amplifier
Turn Signal Flasher
Vanity Light
Wiper And Washer SW
Wiper Motor

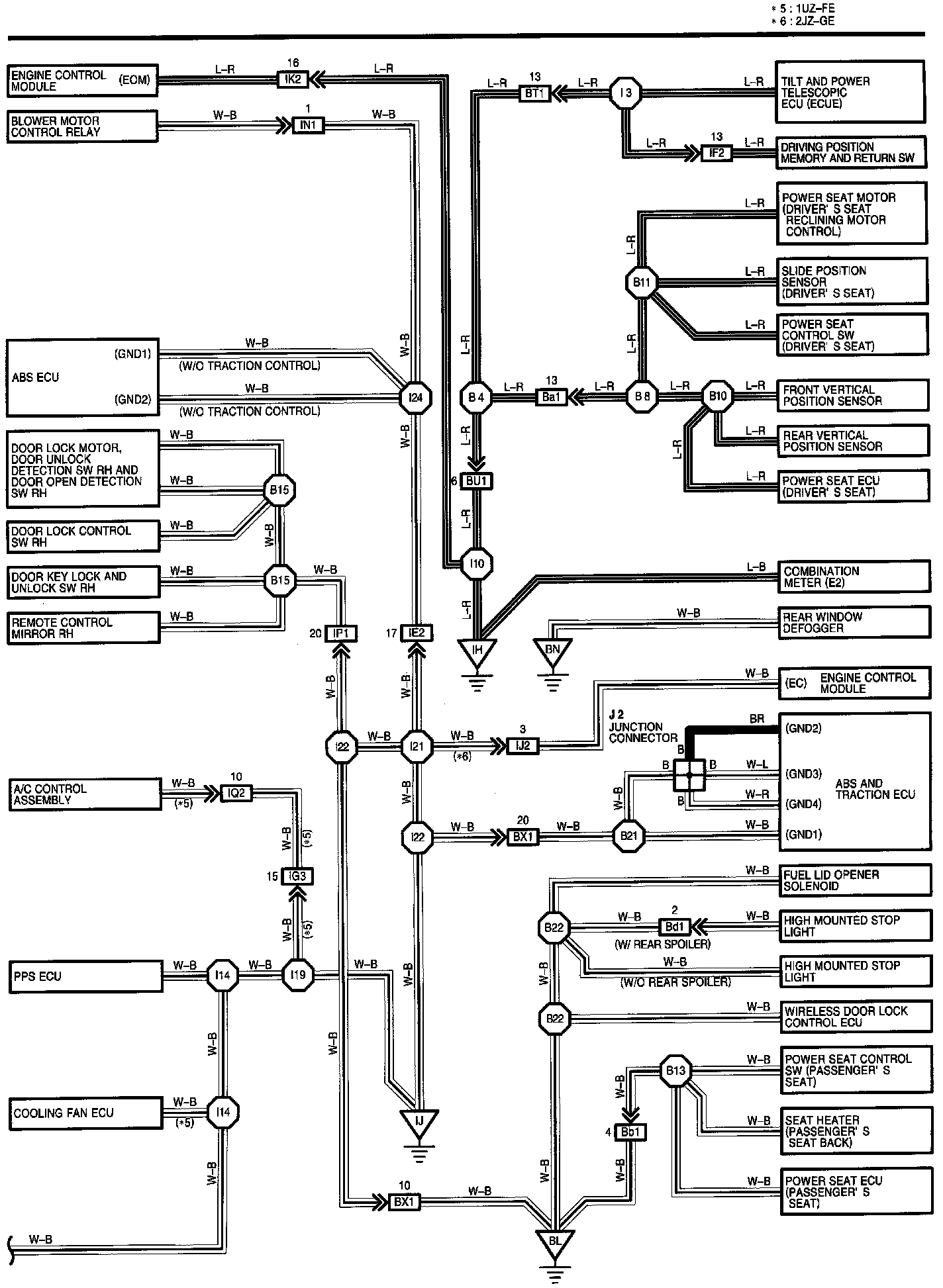

Ground Point (Part 4 Of 4):

Ground Point (Part 4 of 4)
ABS ECU
Blower Motor Control Relay
Cooling Fan ECU
Door Lock Motor, Door Unlock Detection SW
Driving Position Memory And Return SW
Fuel Lid Opener Solenoid
High Mounted Stop Light
Power Seat Motor
PPS ECU
Rear Window Defogger
Slide Position Sensor
Tilt And Power Telescopic ECU
Wireless Door Lock Control ECU
