Removal and Installation

COMPONENTS

REMOVAL
1. REMOVE ENGINE UNDER COVER AND ENGINE UNDER COVER NO.2

2. REMOVE GENERATOR DRIVE BELT
Loosen the belt tension by turning the belt tensioner counterclockwise, and remove the drive belt.

HINT: The pulley bolt for the belt tensioner has a left-hand thread.

3. REMOVE PS VANE PUMP PULLEY

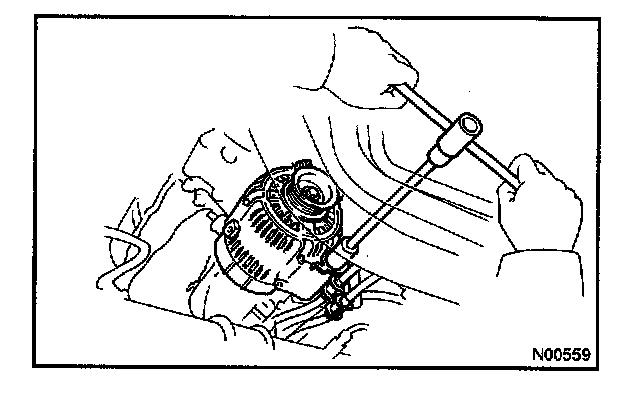

4. REMOVE GENERATOR
a. Disconnect the generator connector.
b. Remove the rubber cap and nut, and disconnect the generator wire.
c. Disconnect the generator wire clamp from the cord clip on the generator.
d. Remove the bolt, and disconnect transmission oil cooler pipe bracket from the generator.
e. Remove the nut and generator.

INSTALLATION




1. INSTALL GENERATOR
a. Install the generator and transmission oil cooler bracket with the bolt and nut.
Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)
b. Connect the generator connector.
c. Connect the generator wire with the nut and rubber cap.
d. Install the generator wire clamp to the cord clip on the generator.
2. INSTALL PS VANE PUMP PULLEY

3. INSTALL GENERATOR DRIVE BELT
Install the drive belt by turning the drive belt tensioner counterclockwise.

HINT: The pulley bolt for the belt tensioner has a left - hand thread.

4. PERFORM ON-VEHICLE INSPECTION
5. INSTALL ENGINE UNDER COVER AND ENGINE UNDER COVER NO.2
