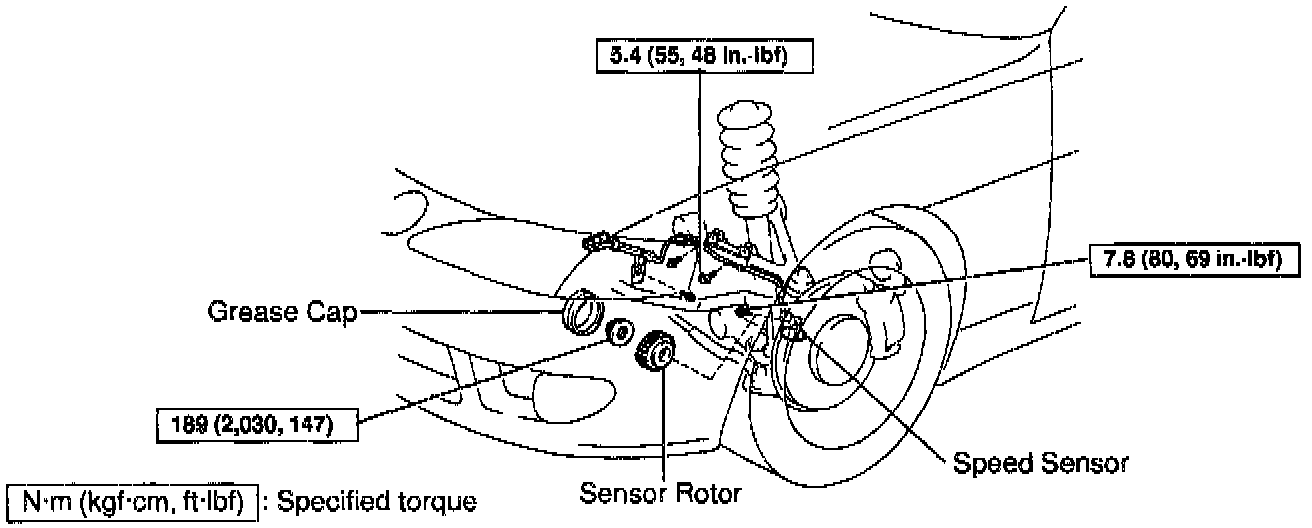

Speed Sensor, Front

REMOVAL





1. Disconnect speed sensor connector.
a. Remove the opening moulding.
b. Remove the fender liner.
c. Disconnect the speed sensor connector.
2. Remove speed sensor.

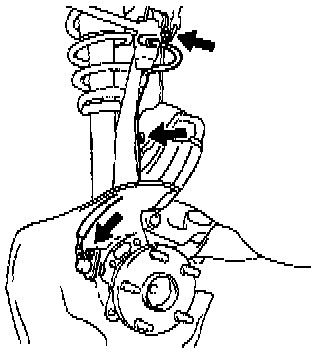

a. Remove the 3 clamp bolts holding the sensor harness to the body and upper arm.
Torque: 5.4 Nm (48 inch lbs.)
b. Remove the speed sensor from the steering knuckle.
Torque: 7.8 Nm (69 inch lbs.)


INSTALLATION
Installation is in the reverse order of removal. After installation, check speed sensor signal.
