Blower Motor Relay: Testing and Inspection

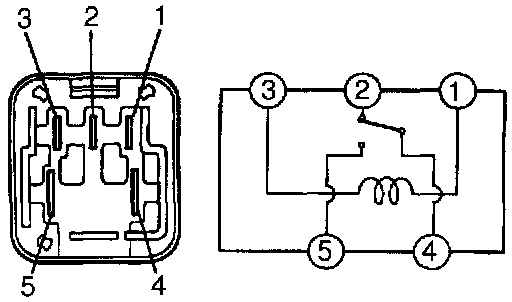

INSPECT HEATER MAIN RELAY (Marking: HTR) CONTINUITY

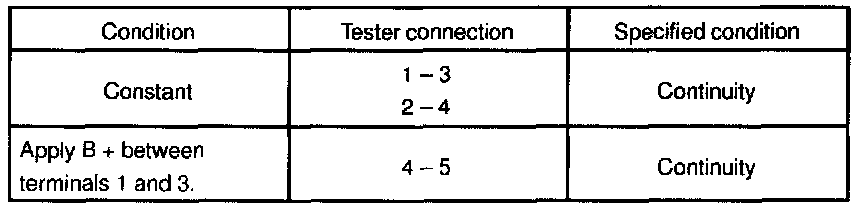

If continuity is not as specified, replace the relay.
