Ignition System: Testing and Inspection

ON-VEHICLE INSPECTION

NOTICE: "Cold" and "Hot" in these sentences express the temperature of the coils themselves. "Cold" is from -10°C (14°F) to 50°C (122°F) and "Hot" is from 5O°C (122°F) to 100°C (212°F).

INSPECT IGNITION COIL WITH IGNITER AND SPARK TEST
Check that the spark occurs.
(1) Remove the ignition coil with igniters.
(2) Using a 16 mm plug wrench, remove the spark plugs.
(3) Install the spark plugs to each ignition coil with igniter, and connect the ignition coil with igniter connector.
(4) Disconnect the infector connector.

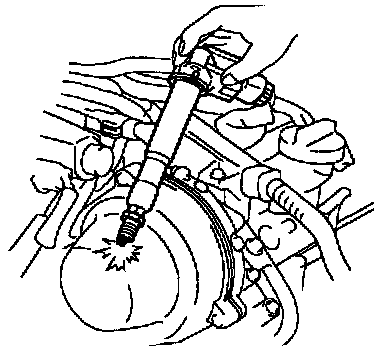

(5) Ground the spark plug.
(6) Check if spark occurs while engine is being cranked.

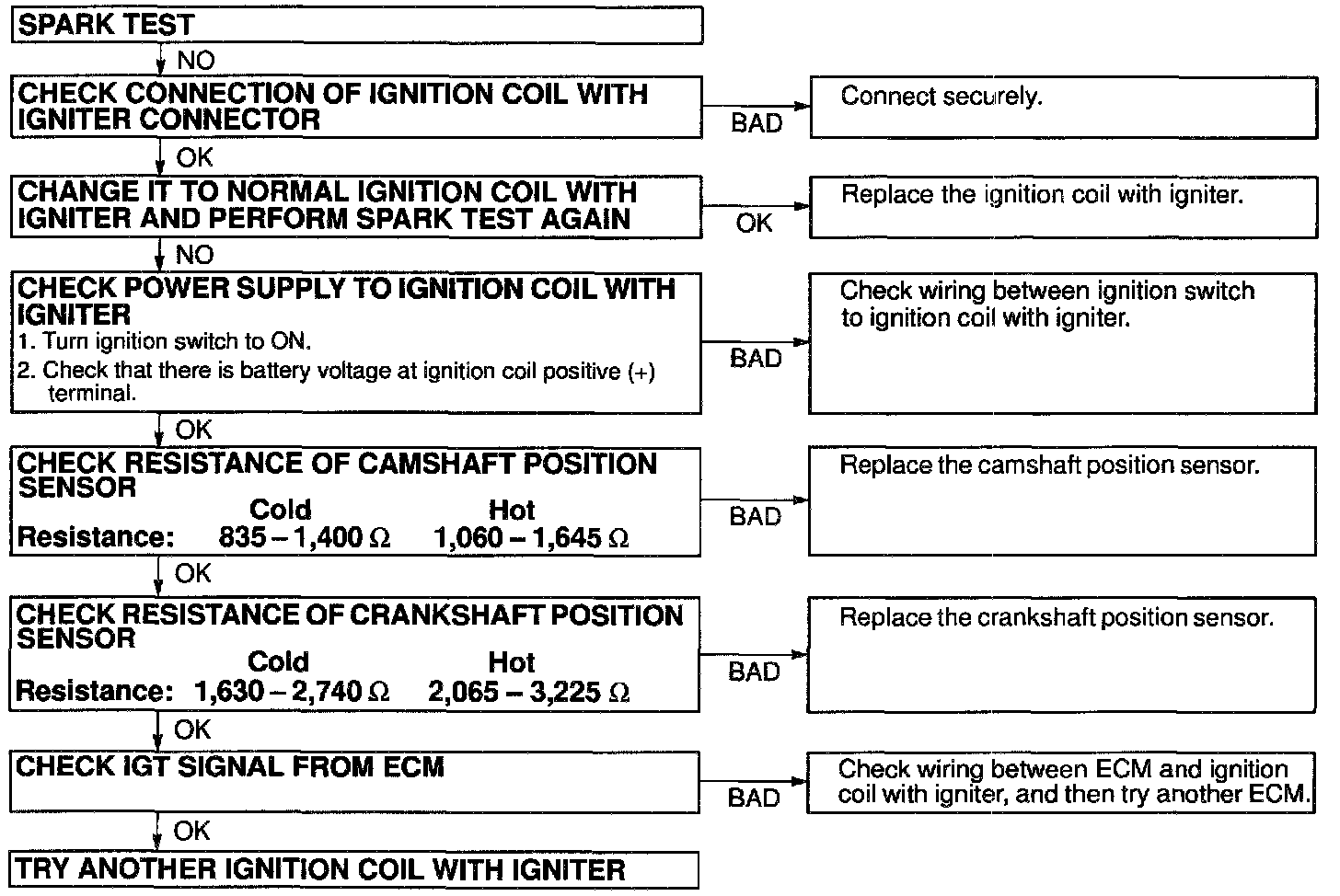

NOTICE: To prevent gasoline from being injected from injectors during this test, crank the engine for no more than 5 - 10 seconds at time. If the spark done not occur, do the test as shown above.

(7) Using a 16 mm plug wrench, install the spark plugs.

Torque: 17.5 N.m (180 kgf.cm, 13 ft.lbf)

(8) Reinstall the ignition coil with igniters.
