Ignition Coil: Service and Repair

REMOVAL

1. REMOVE V-BANK COVER
2. REMOVE INTAKE AIR CONNECTOR

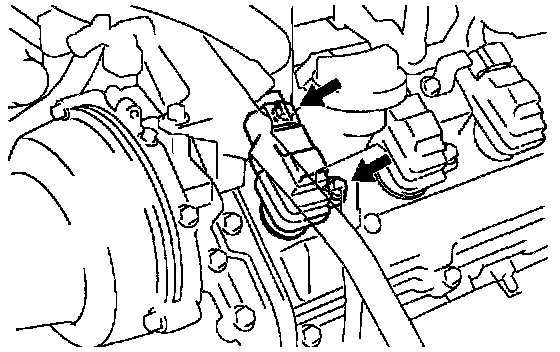

3. DISCONNECT IGNITION COIL WITH IGNITER CONNECTORS





4. REMOVE IGNITION COIL WITH IGNITERS FROM SPARK PLUGS
Remove the bolt.

Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)

INSTALLATION
Installation is in the reverse order of removal.
