Component Inspection

INSPECTION

INSPECT INTAKE AIR CONTROL VALVE
(a) Install the air control valve and actuator to the upper intake manifold.

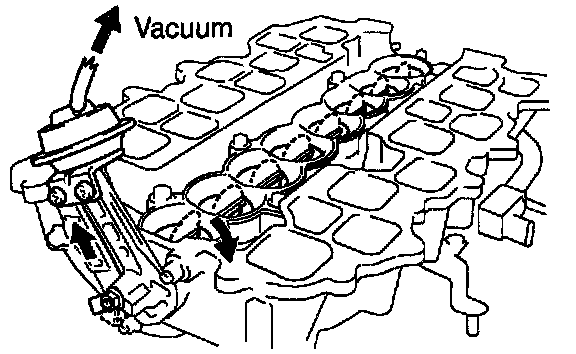

(b) With 39.9 kPa (300 mmHg, 11.8 in.Hg) of vacuum applied to the actuator, check that the actuator rod moves.
(c) One minute after applying the vacuum in (a), check that the actuator rod does not return.
If the operation is not as specified, replace the intake air control valve actuator
