Fuel Injector: Service and Repair

REMOVAL

1. REMOVE V-BANK COVER
2. REMOVE INTAKE AIR CONNECTOR
3. DISCONNECT ACCELERATOR CABLE

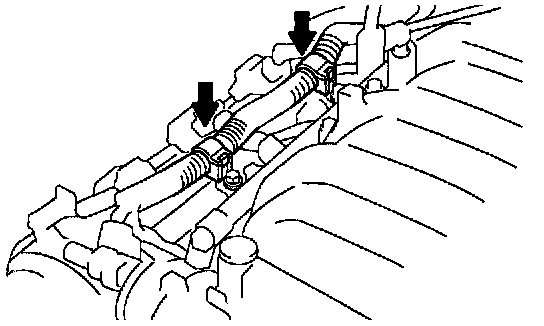

4. REMOVE FUEL PRESSURE PULSATION DAMPERS
5. DISCONNECT ENGINE WIRE FROM DELIVERY PIPE





(a) Disconnect the 2 wire clamps from the wire clamp bracket on the RH delivery pipe.
(b) Disconnect the 8 injector connectors.
6. DISCONNECT VVT SENSOR CONNECTORS
7. REMOVE DELIVERY PIPES AND INJECTORS

NOTICE:
- Be careful not to drop the injectors when removing the delivery pipes.
- Pay attention to put any hung load on the injector to and from the side direction.

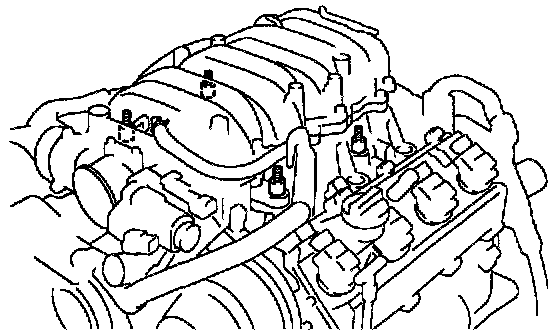

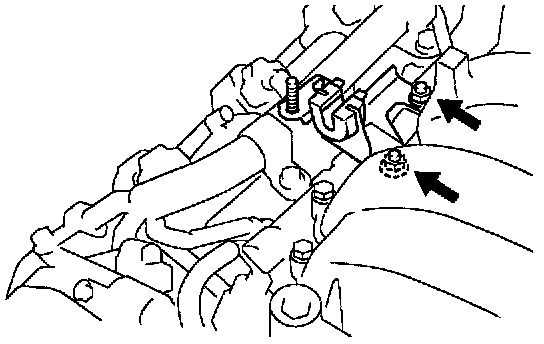

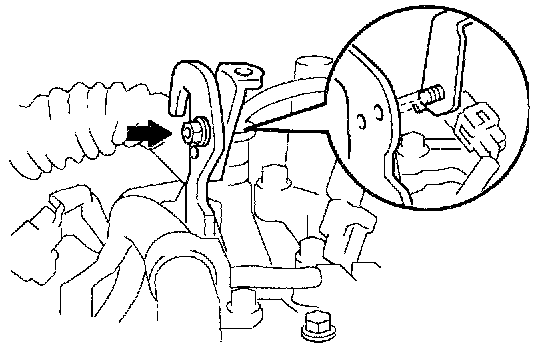

(a) Remove these parts:
- VSV for EVAP
- Accelerator cable bracket
- RH rear V-bank cover bracket

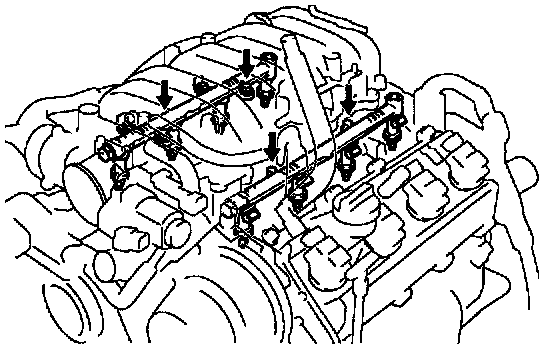

(b) Remove the 4 nuts holding the delivery pipe to the intake manifold.
(c) Remove the 2 delivery pipes and 8 injectors assembly and 4 spacers.
(d) Pull out the 8 injectors from the delivery pipes.
(e) Remove the 2 O-rings, grommet and insulator from each injector.

INSTALLATION

1. INSTALL INJECTORS AND DELIVERY PIPES

NOTICE:
- Be careful not to drop the injectors when installing the delivery pipes.
- Pay attention to put any hung load on the injector to and from the side direction.

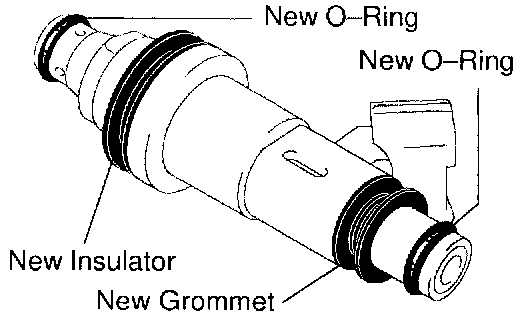

(a) Install a new grommet and new insulator to each injector.
(b) Apply a light coat of gasoline to 2 new O-rings and install them to each injector.

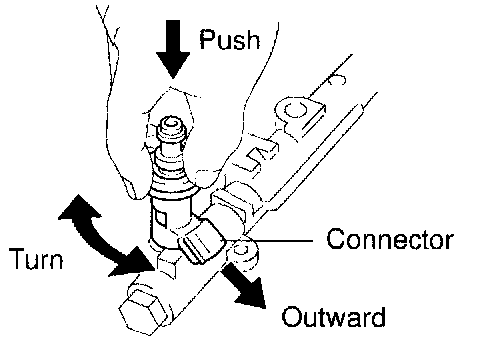

(c) While turning the injector clockwise and counterclockwise, push it to the delivery pipes. Install the 8 injectors.

HINT: Install the injector with cover for No. 5, 6, 7 and 8 cylinders.

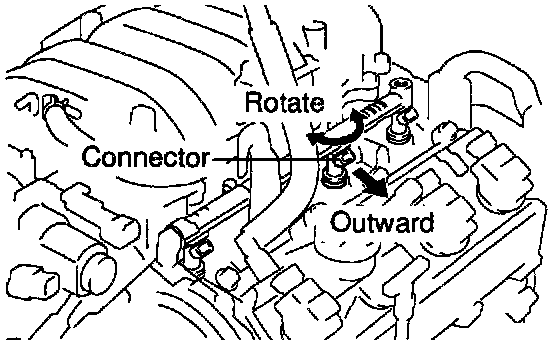

(d) Position injector connector outward.





(e) Place the 4 spacers on the intake manifold.
(f) Place the 8 injectors and 2 delivery pipes assembly in position on the intake manifold.





(g) Temporarily install the 4 nuts.
(h) Check that the injectors rotate smoothly.

HINT: If injectors do not rotate smoothly, the probable cause is incorrect installation of O-rings. Replace the O-rings.





(i) Position injector connector outward.
(j) Tighten the 4 nuts holding the delivery pipes to the intake manifold.

Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)

(k) Install these parts:





- Accelerator cable bracket

Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)





- RH rear V-bank cover bracket

Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)

2. CONNECT ENGINE WIRE TO DELIVERY PIPE
(a) Connect the 8 injector connectors.





(b) Connect the 2 wire clamps to the wire clamp bracket on the RH delivery pipe.
3. INSTALL FUEL PRESSURE PULSATION DAMPER
4. CONNECT ACCELERATOR CABLE
5. INSTALL INTAKE AIR CONNECTOR
6. INSTALL V-BANK COVER
