Normal Scan Data Values

ENGINE OPERATING CONDITION

NOTICE: The values given below for "Normal Condition" are representative values, so a vehicle may still be normal even if its value varies from those listed here. So do not decide whether a part is faulty or not solely according to the "Normal Condition" here.

Part 1 Of 2:

Part 2 Of 2:

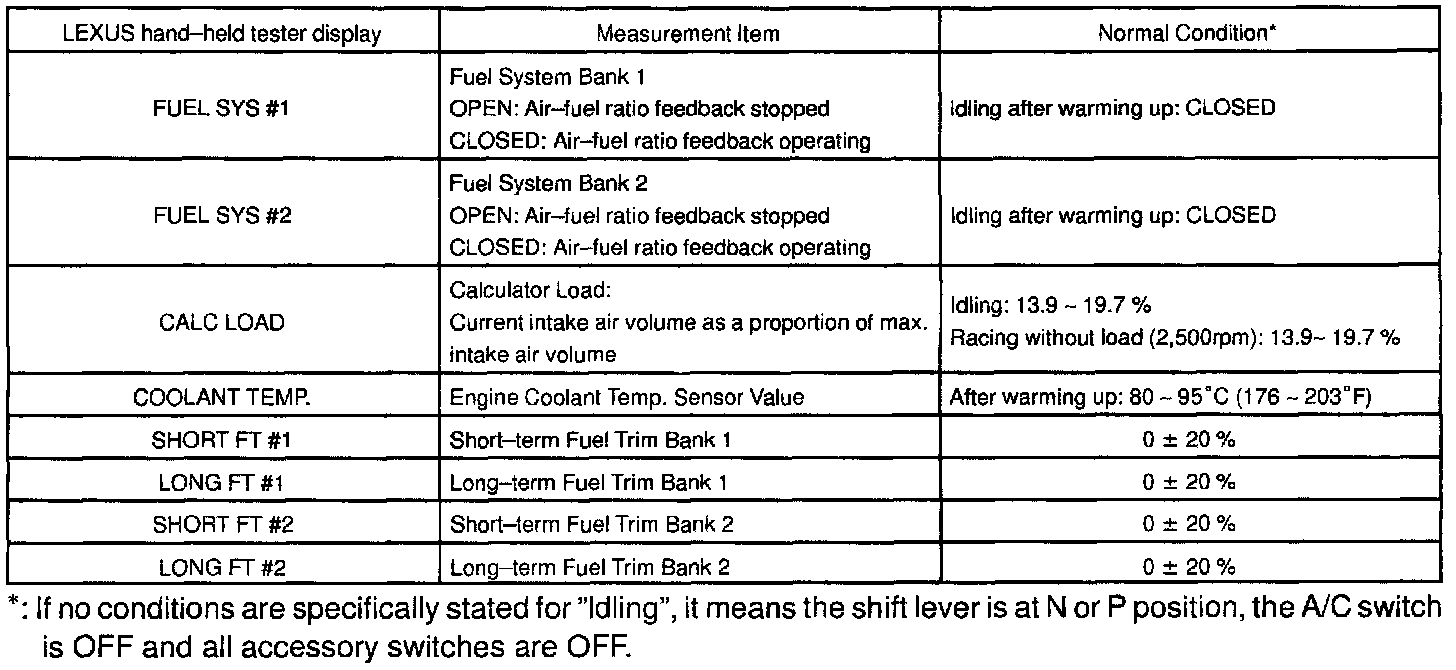

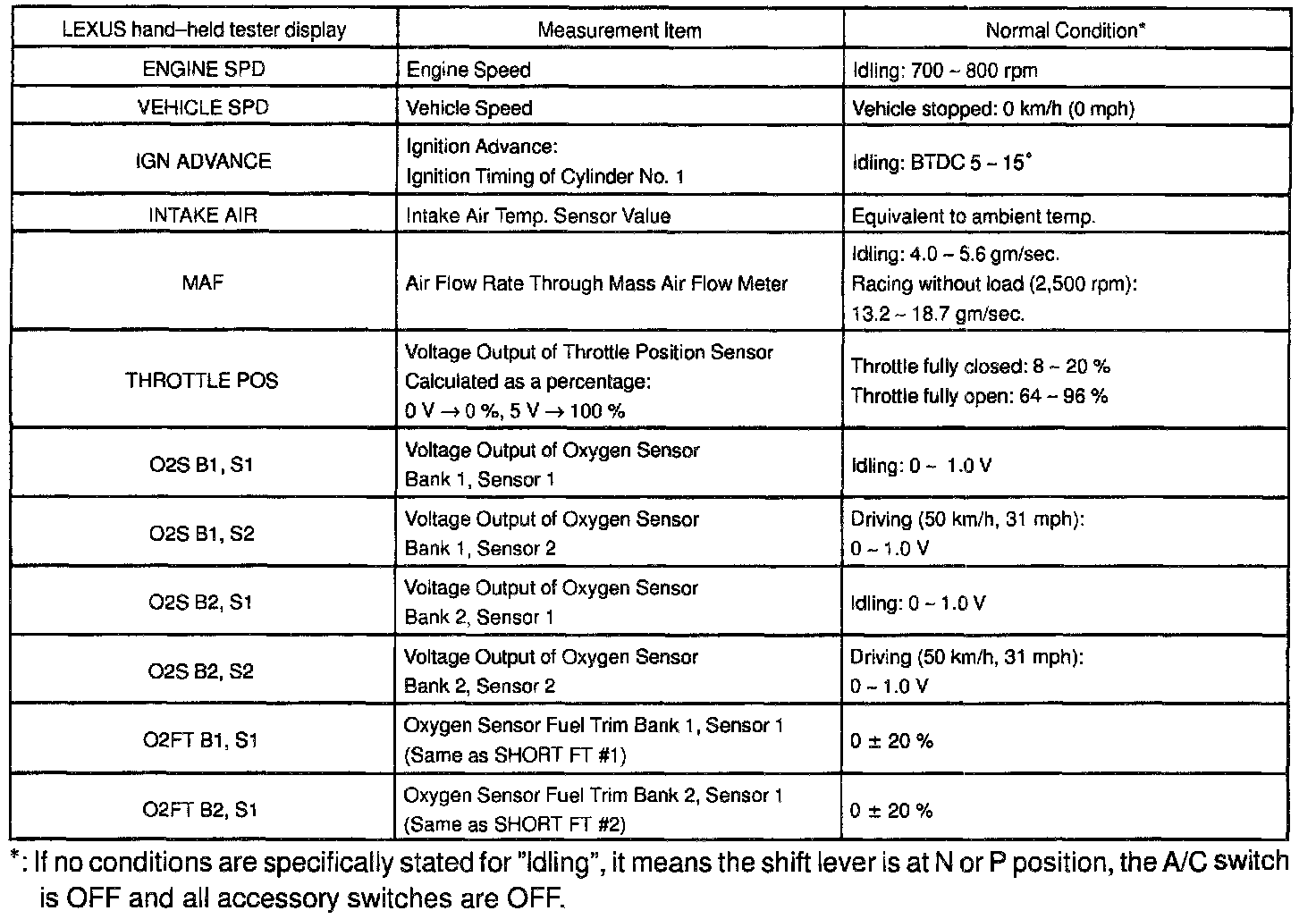

(a) CARB mandated signals.

Part 1 Of 2:

Part 2 Of 2:

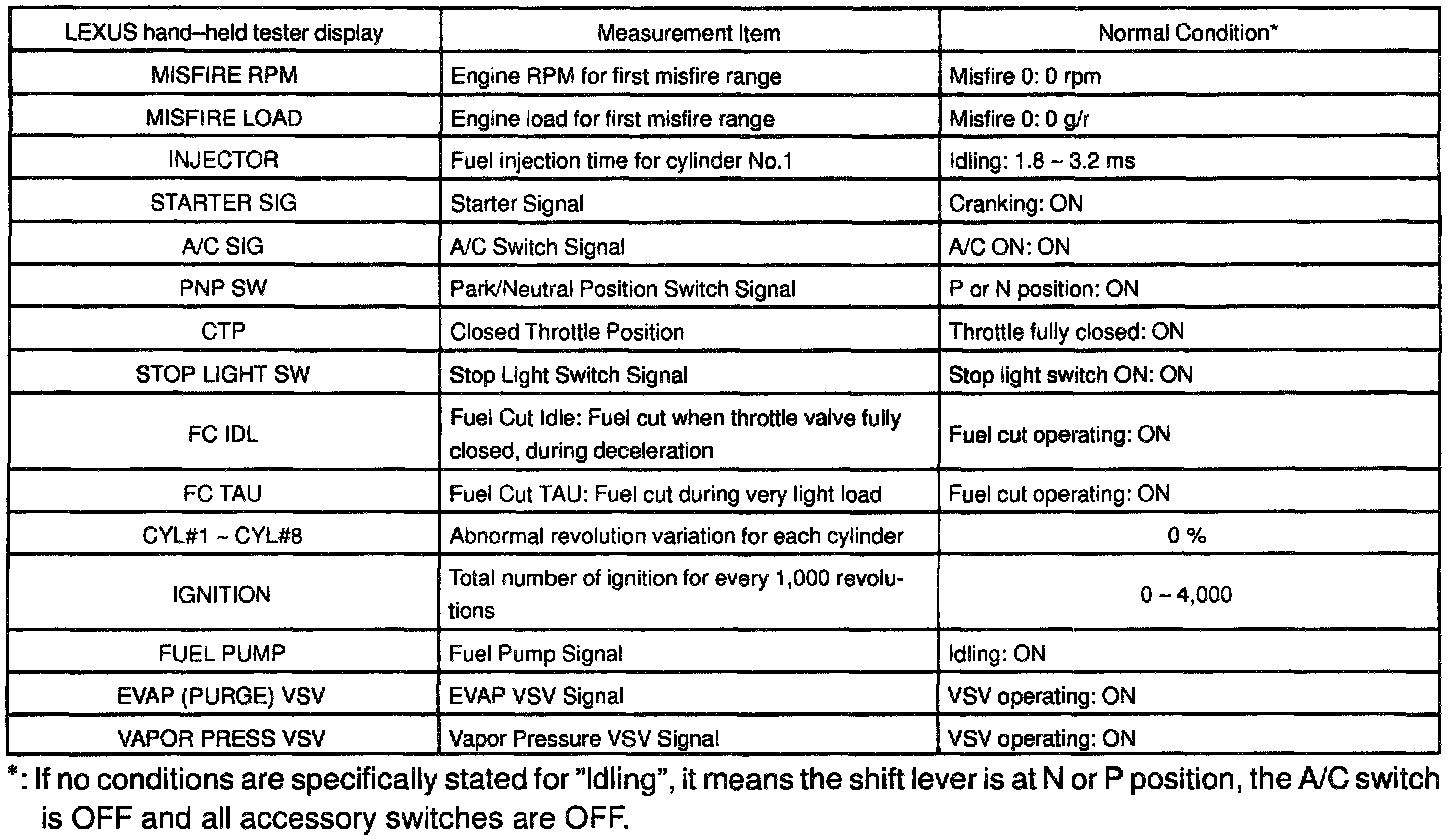

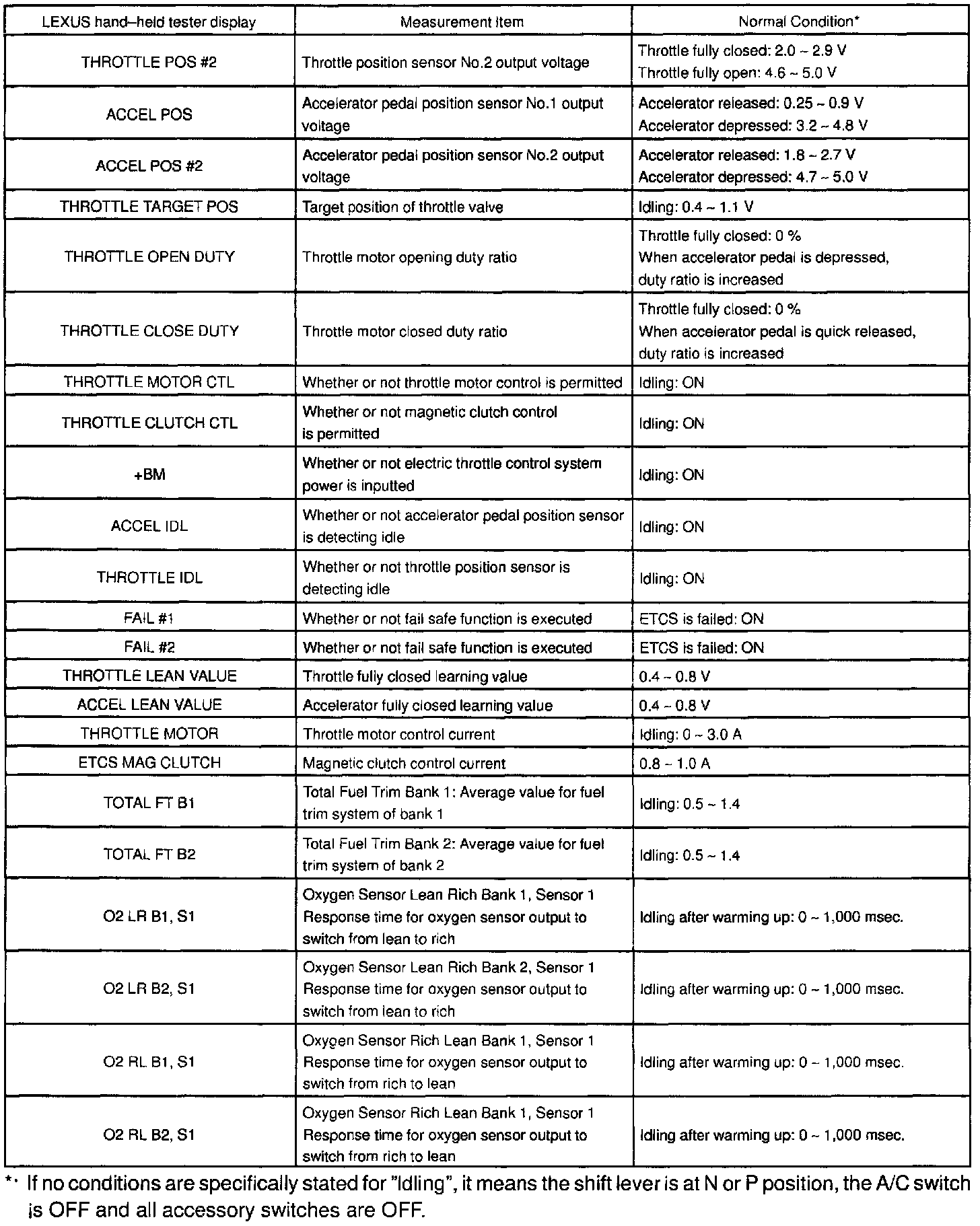

(b) LEXUS Enhanced Signals
