SC 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Diagrams
>>
Connector Views
>>
Light Auto Turn Off
Light Auto Turn Off

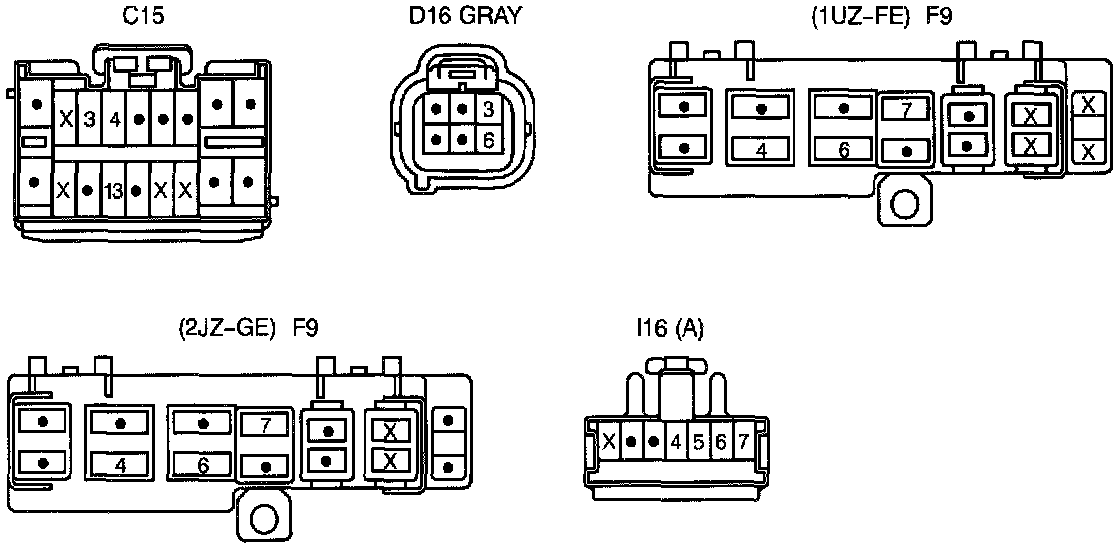

Light Auto Turn Off-Connectors:
