IG Power Source Circuit


IG Power Source Circuit

CIRCUIT DESCRIPTION
This is the power source for the A/C control assembly (contains the A/C control assembly) and servomotor, etc.

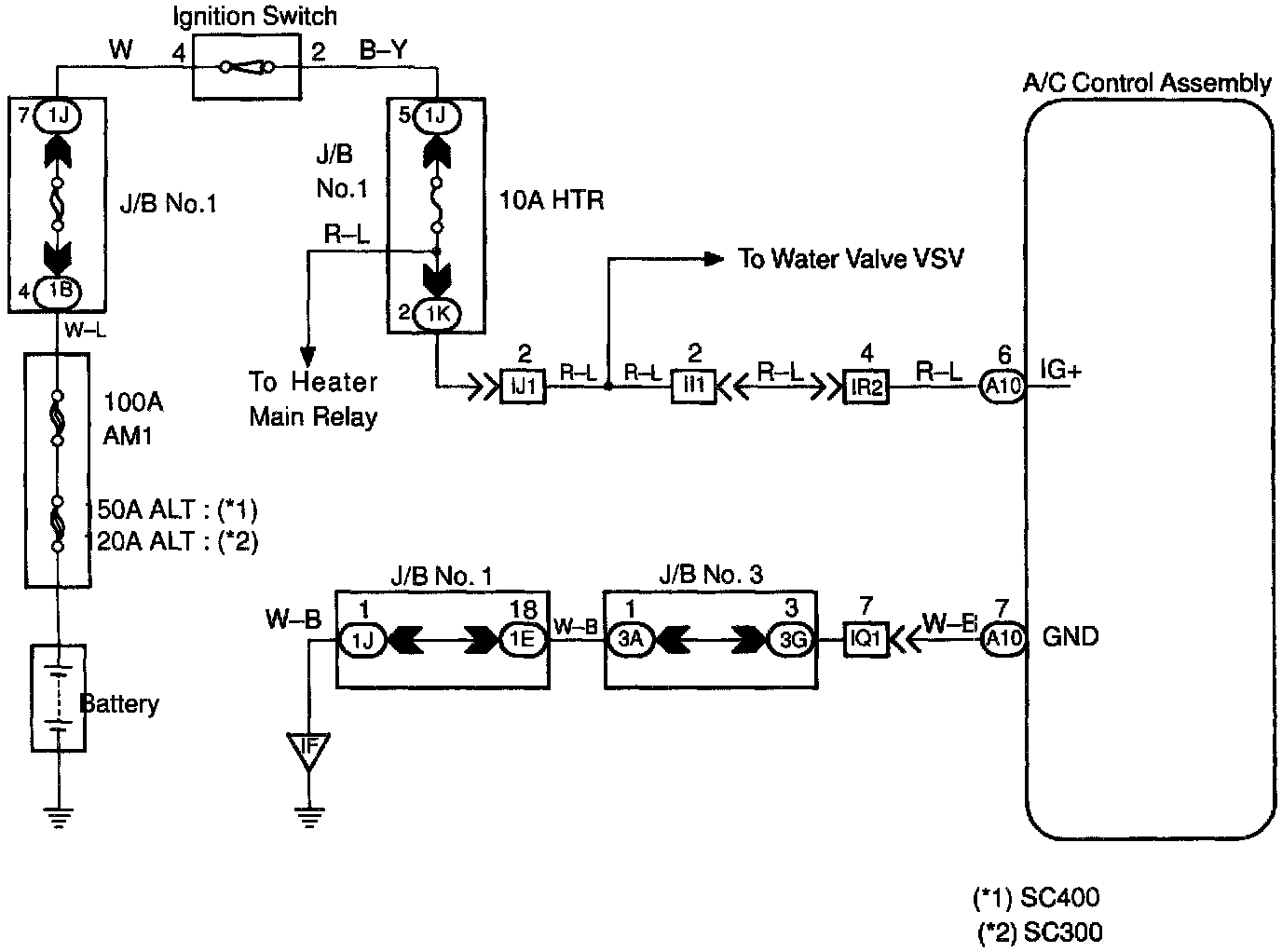

WIRING DIAGRAM

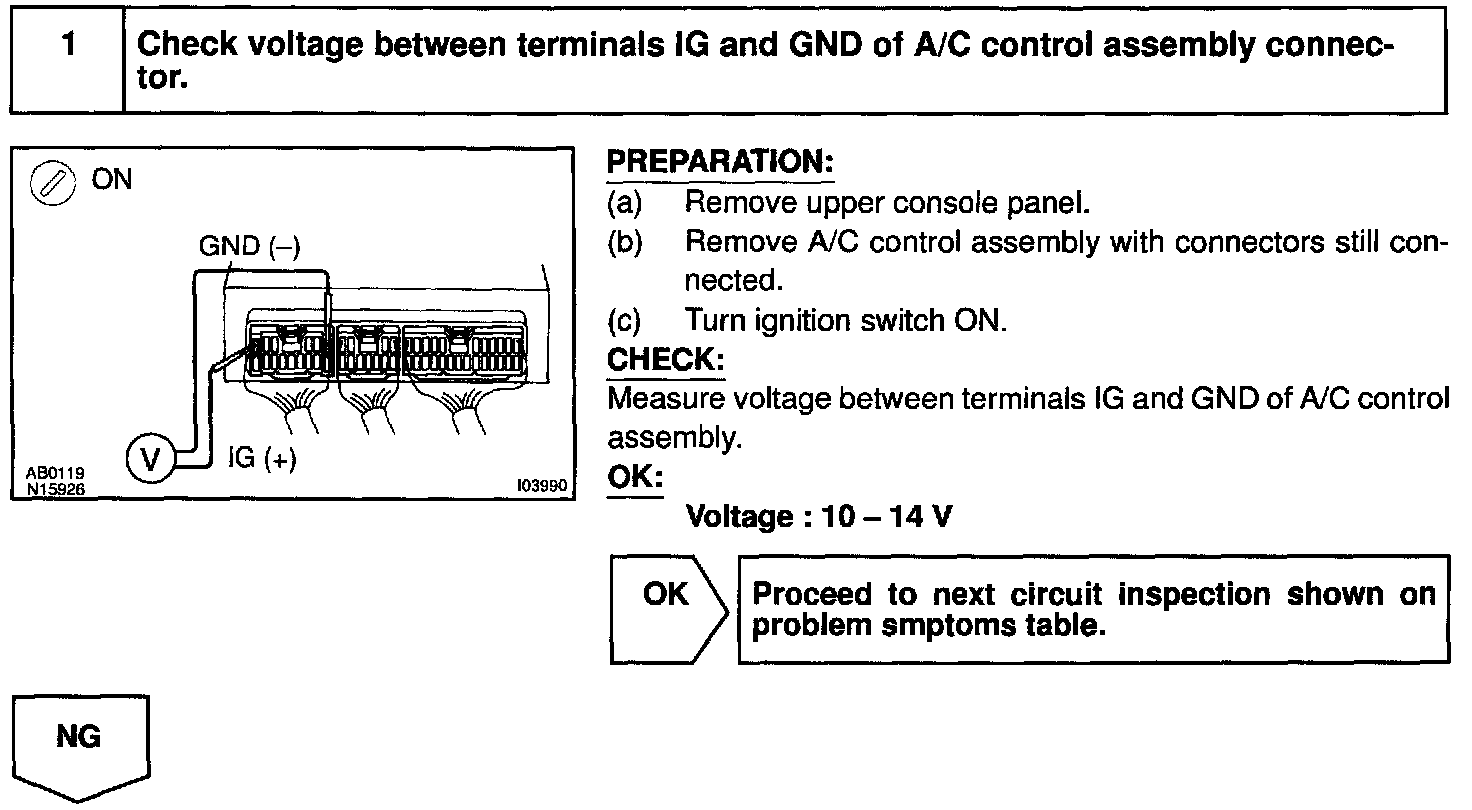

Step 1:

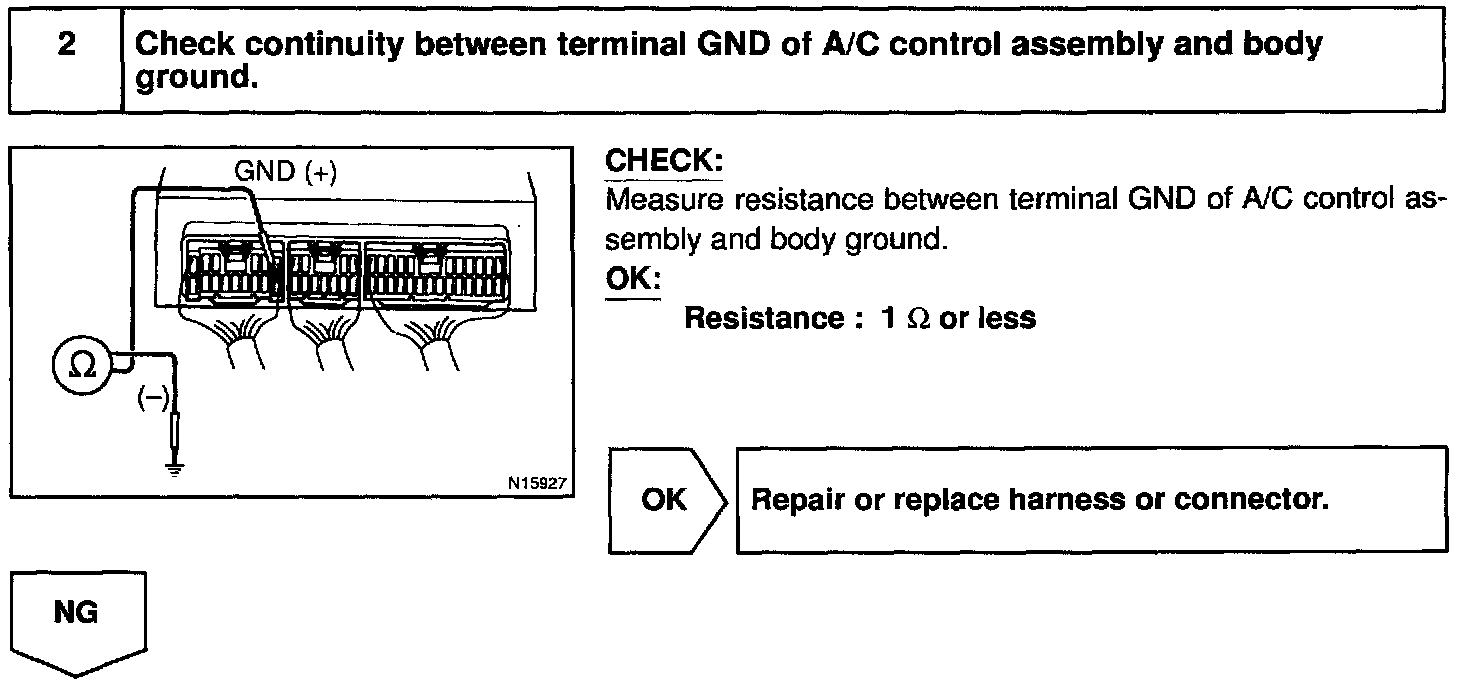

Step 2:

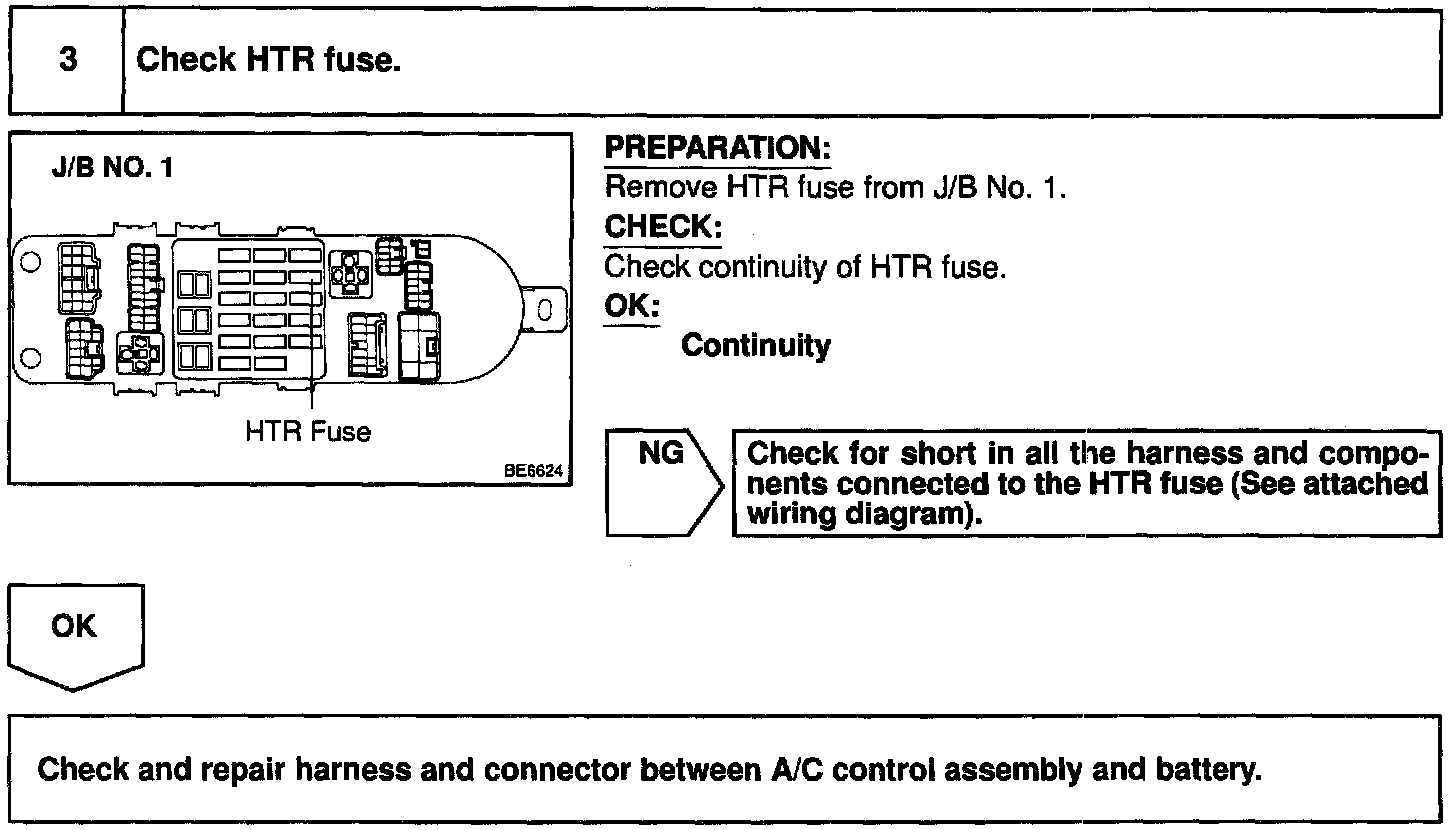

Step 3:





INSPECTION PROCEDURE
