Heater Main Relay Circuit

Heater Relay Circuit

CIRCUIT DESCRIPTION
The heater relay is switched ON by signals from the A/C control assembly. It supplies power to the blower motor.

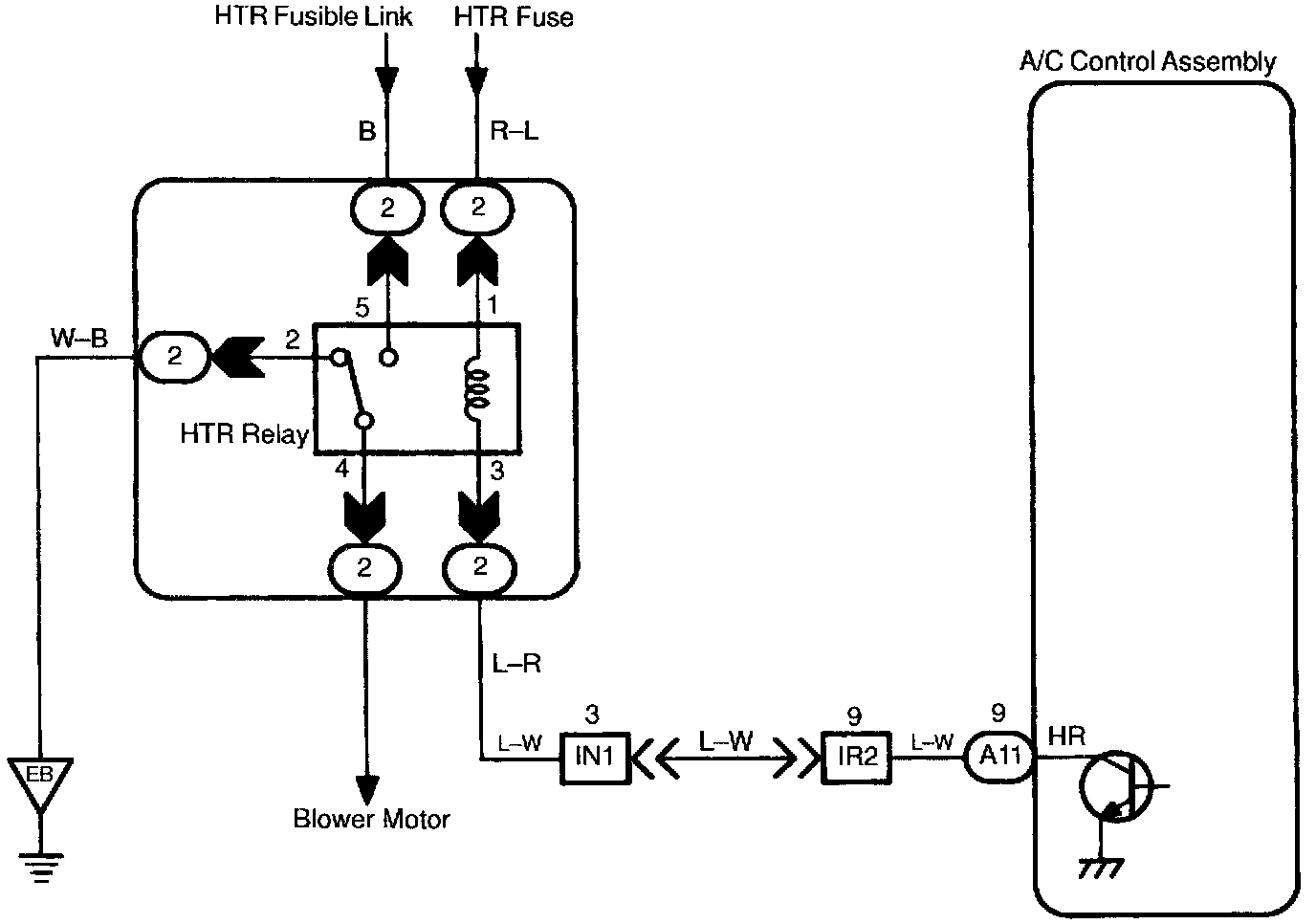

WIRING DIAGRAM

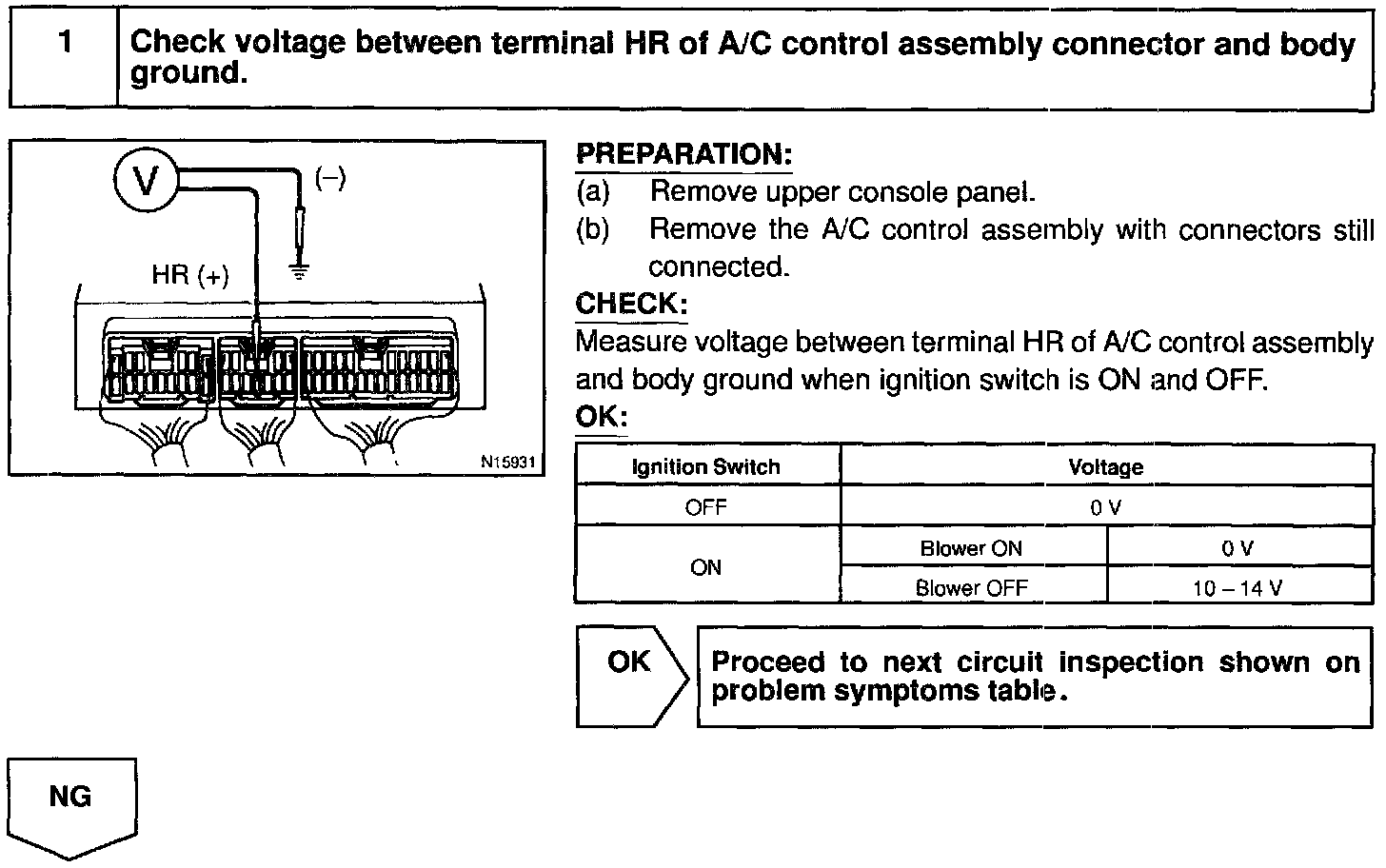

Step 1:

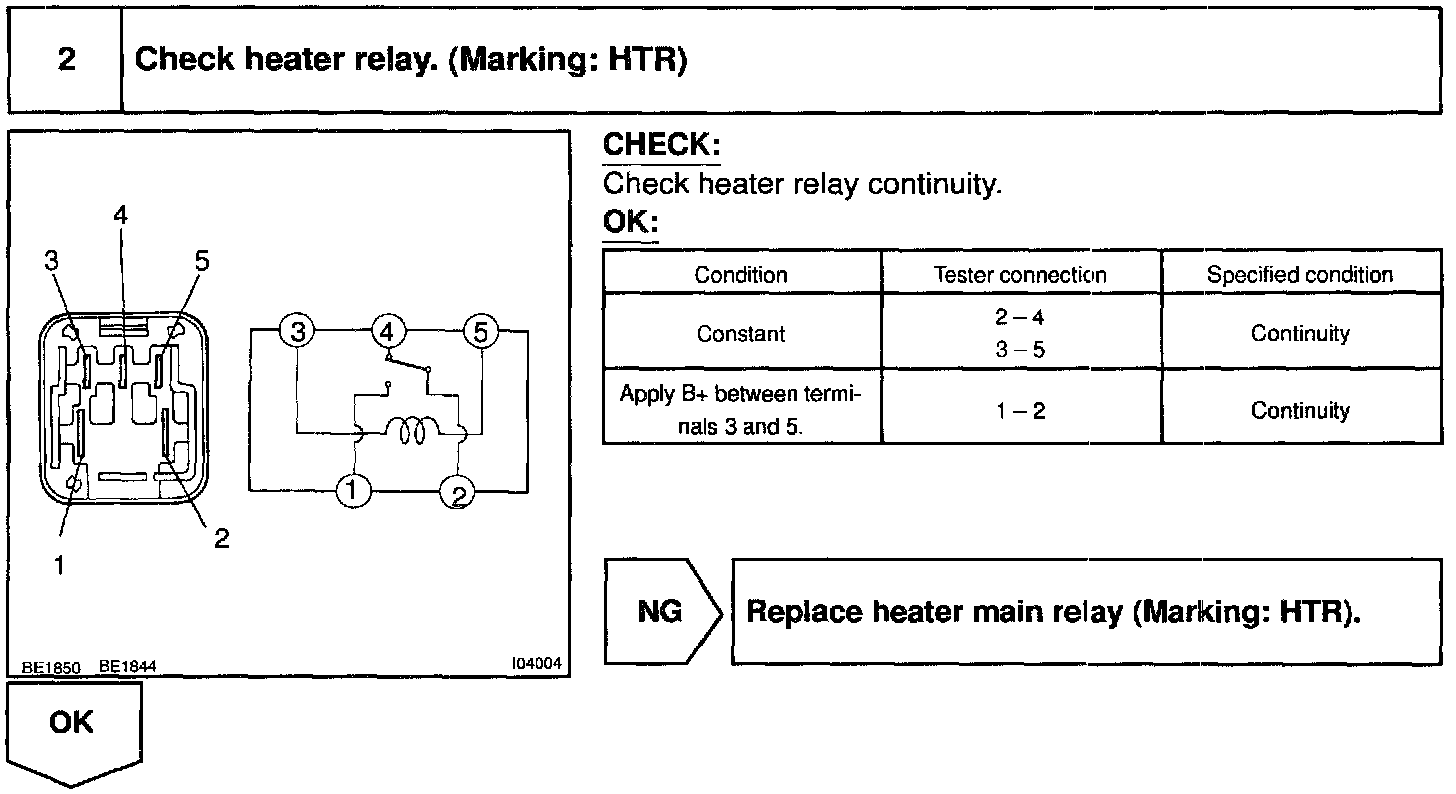

Step 2:

Step 3:

INSPECTION PROCEDURE
