Back-Up Power Source Circuit

Back-Up Power Source Circuit

CIRCUIT DESCRIPTION

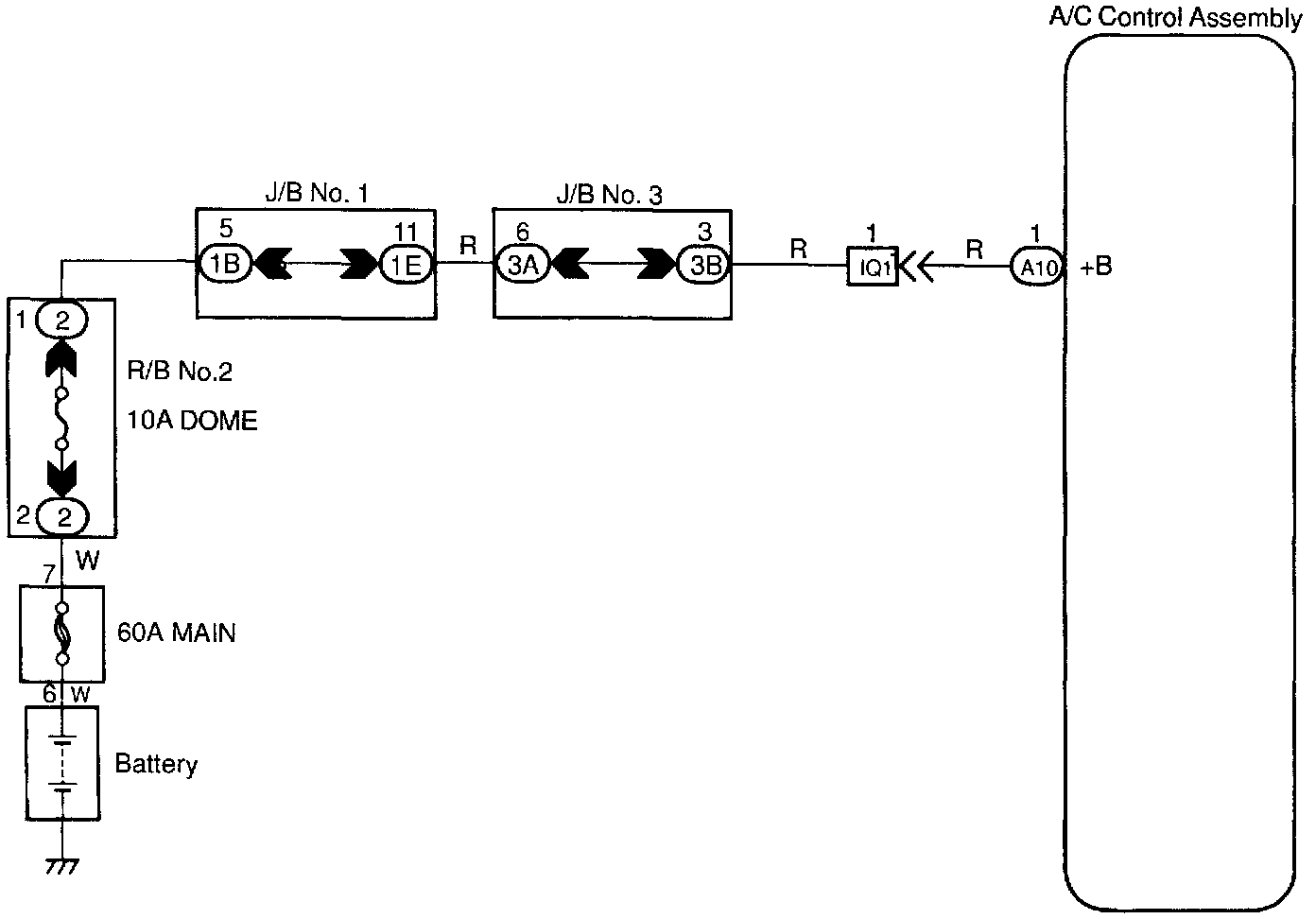

This is the back-up power source for the NC control assembly. Power is supplied even when the ignition switch is off and is used for DTC memory, etc.
