Actuator Check

LIST OF OPERATION METHODS

By operating each of the A/C control switches as shown in the diagram below, it is possible to enter the diagnosis check mode.


ACTUATOR CHECK

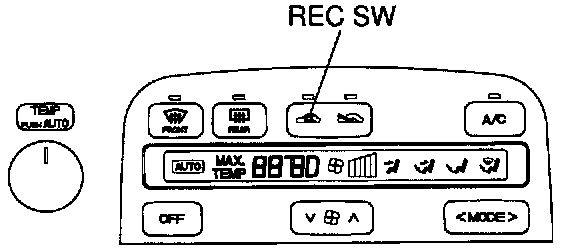

(a) After entering the DTC check mode sensors check mode (Refer to How to Display and Read Diagnostic Trouble Codes/Without Scan Tool), press the REC switch.

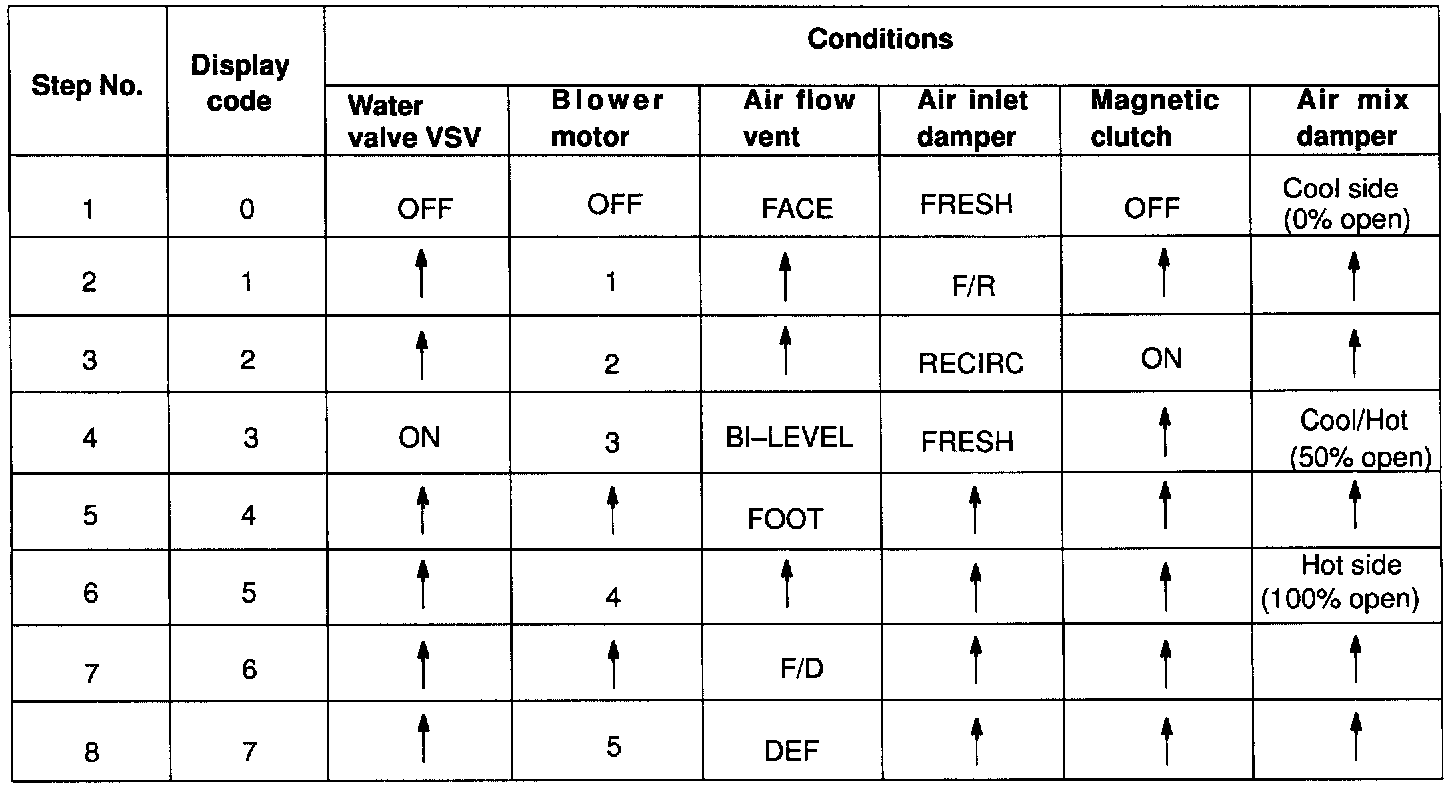

(b) Since each damper, motor and relay automatically operates at 1 second intervals beginning in order from 20 in the temperature display, check the temperature and air flow visually and by hand.

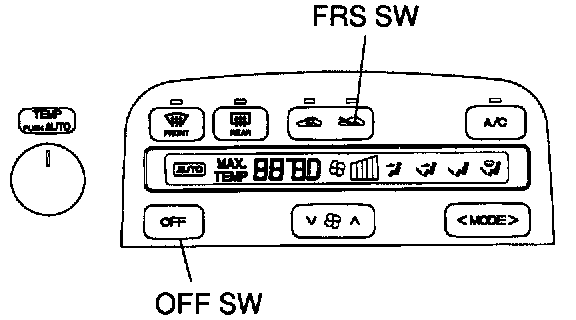

If the slower display is desired, press the FRS switch and change it to step operation. Each time the FRS switch is pressed, the display changes by 1 step.

HINT:
- Codes are displayed in order from the smaller to the larger numbers.
- To cancel the check mode, press the OFF switch.
