ACC Power Source Circuit

ACC Power Source Circuit

CIRCUIT DESCRIPTION
This circuit supplies power to the A/C control assembly (contains the A/C control assembly).

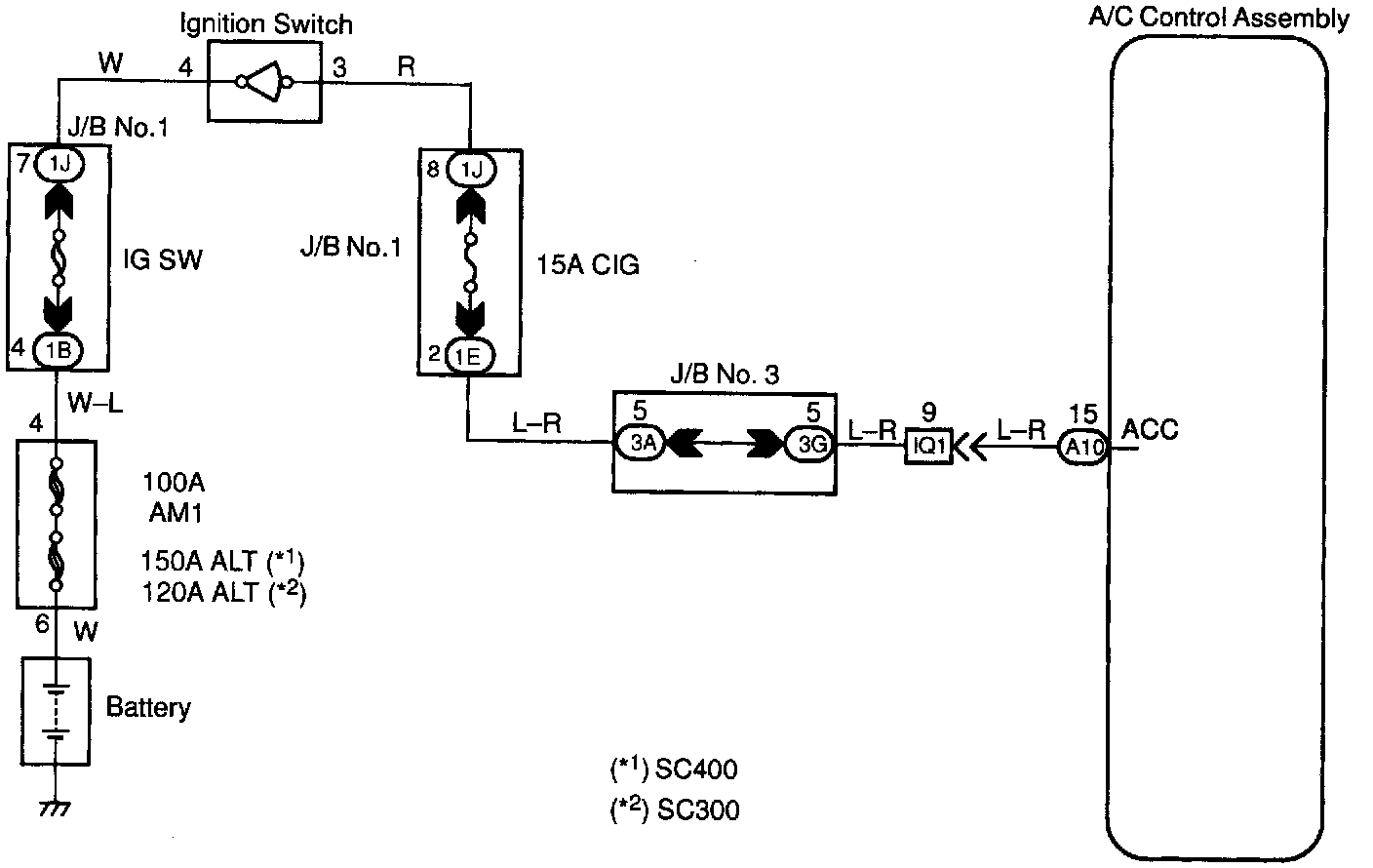

WIRING DIAGRAM

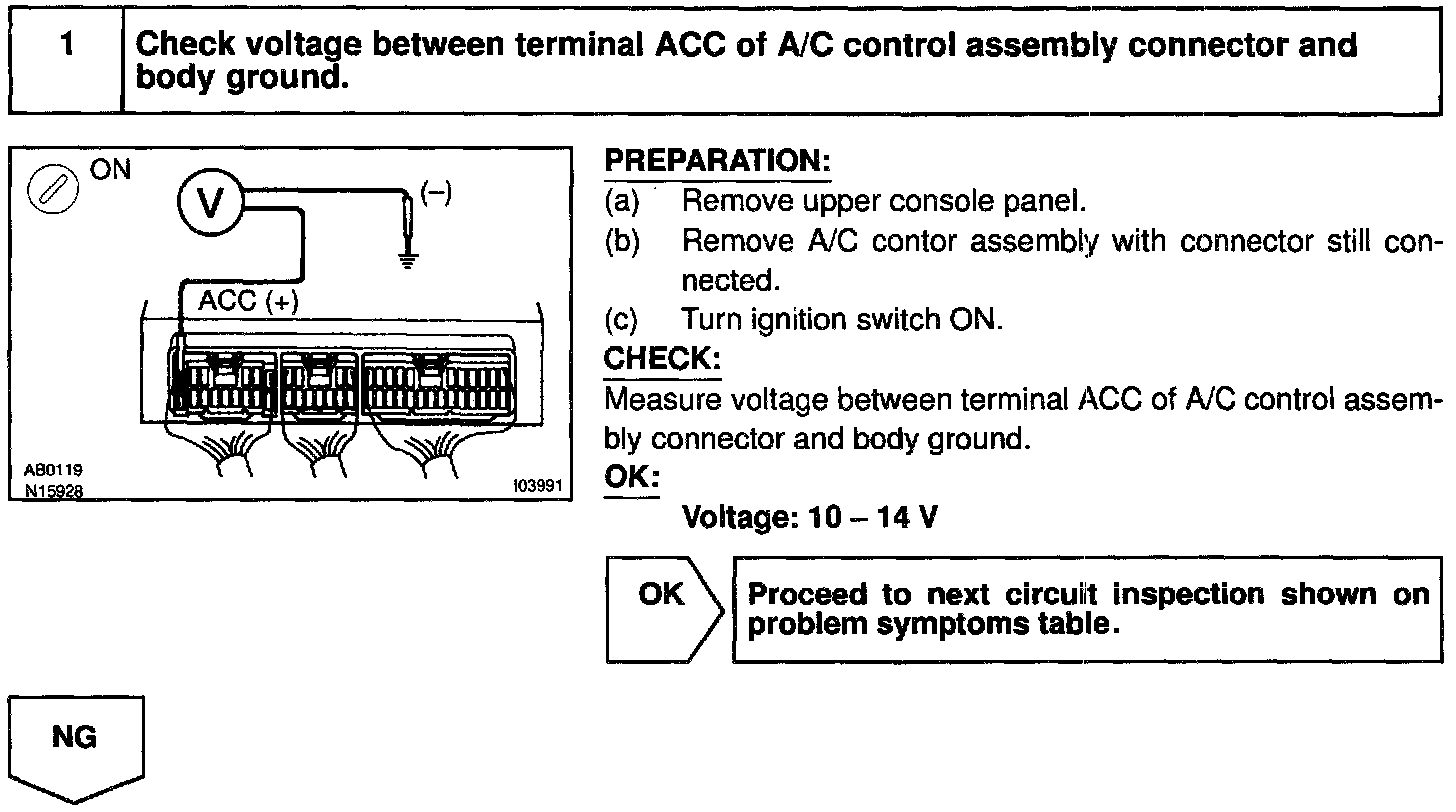

Step 1:

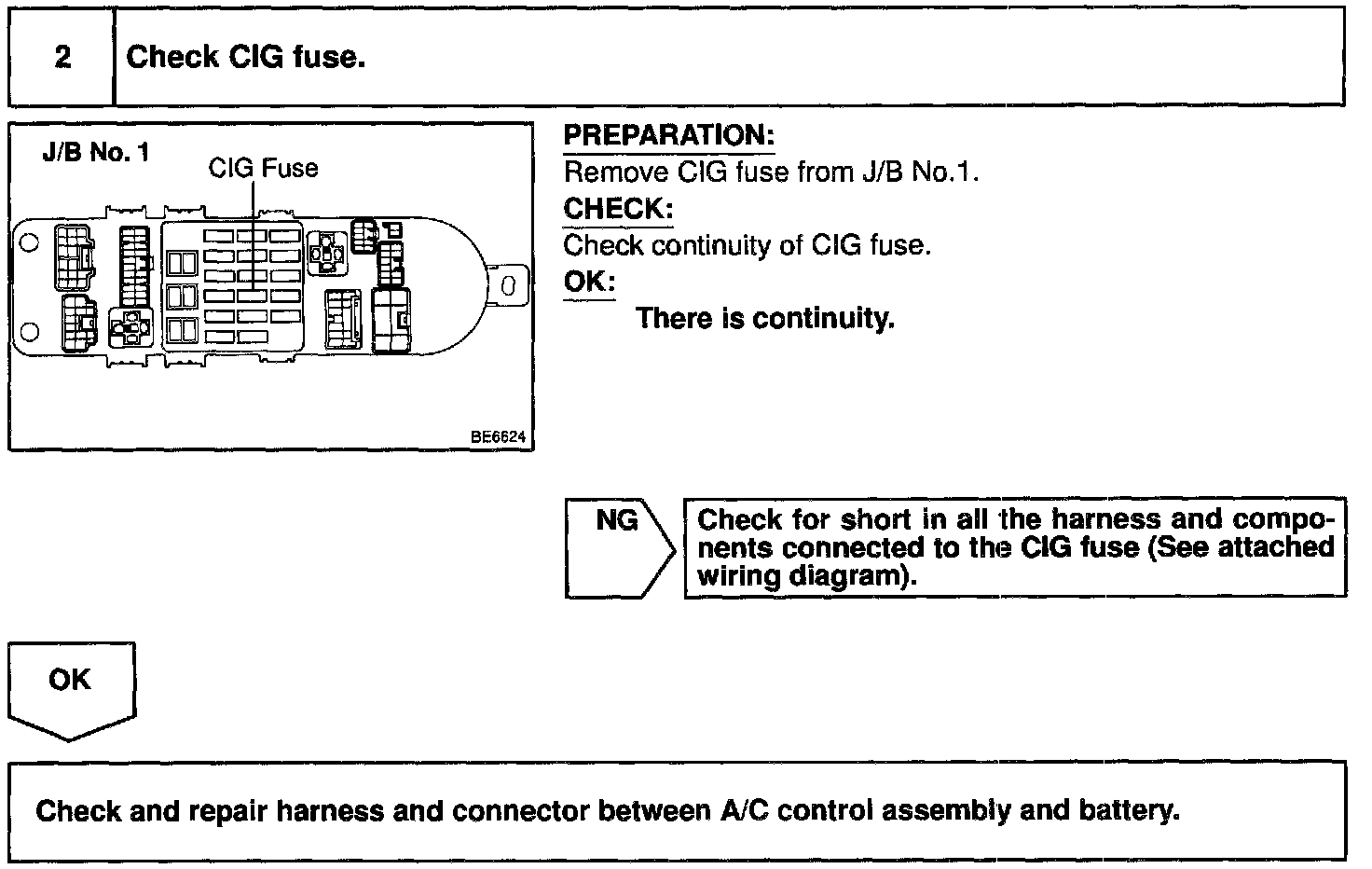

Step 2:

INSPECTION PROCEDURE
