Air Mix Control Motor Position Sensor
CIRCUIT DESCRIPTION

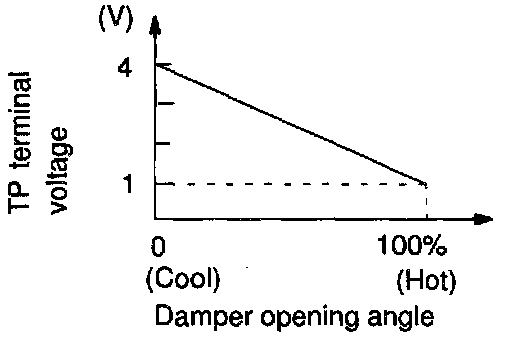

This sensor detects the position of the air mix damper and sends the appropriate signals to the A/C control assembly. The position sensor is built into the air mix servomotor assembly.
CIRCUIT DESCRIPTION
This sensor detects the position of the air mix damper and sends the appropriate signals to the A/C control assembly. The position sensor is built into the air mix servomotor assembly.
