Hydraulic Cooling Fan Fluid Cooler: Service and Repair

REMOVAL





1. REMOVE FENDER LINER

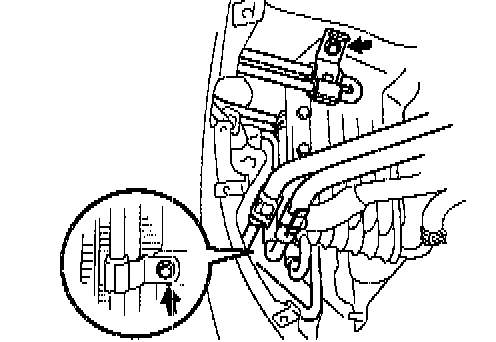

2. DISCONNECT POWER STEERING (PS) OIL COOLER FROM COOLING FAN OIL COOLER
Remove the 2 bolts, and disconnect the PS oil cooler from the cooling fan oil cooler.





3. DISCONNECT HOSES FROM COOLING FAN OIL COOLER
Disconnect these hoses:
1) Inlet hose (from reservoir tank)
2) Outlet hose (from hydraulic motor)
4. REMOVE COOLING FAN OIL COOLER
Remove the 3 bolts and oil cooler.

Torque: 18 Nm (13 ft. lbs.)

INSPECTION

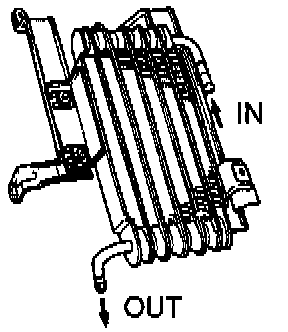

1. INSPECT OIL COOLER





Check the oil cooler for damage or clogging. If necessary, replace the oil cooler.

INSTALLATION
Installation is in the reverse order of removal.
