Water Pump

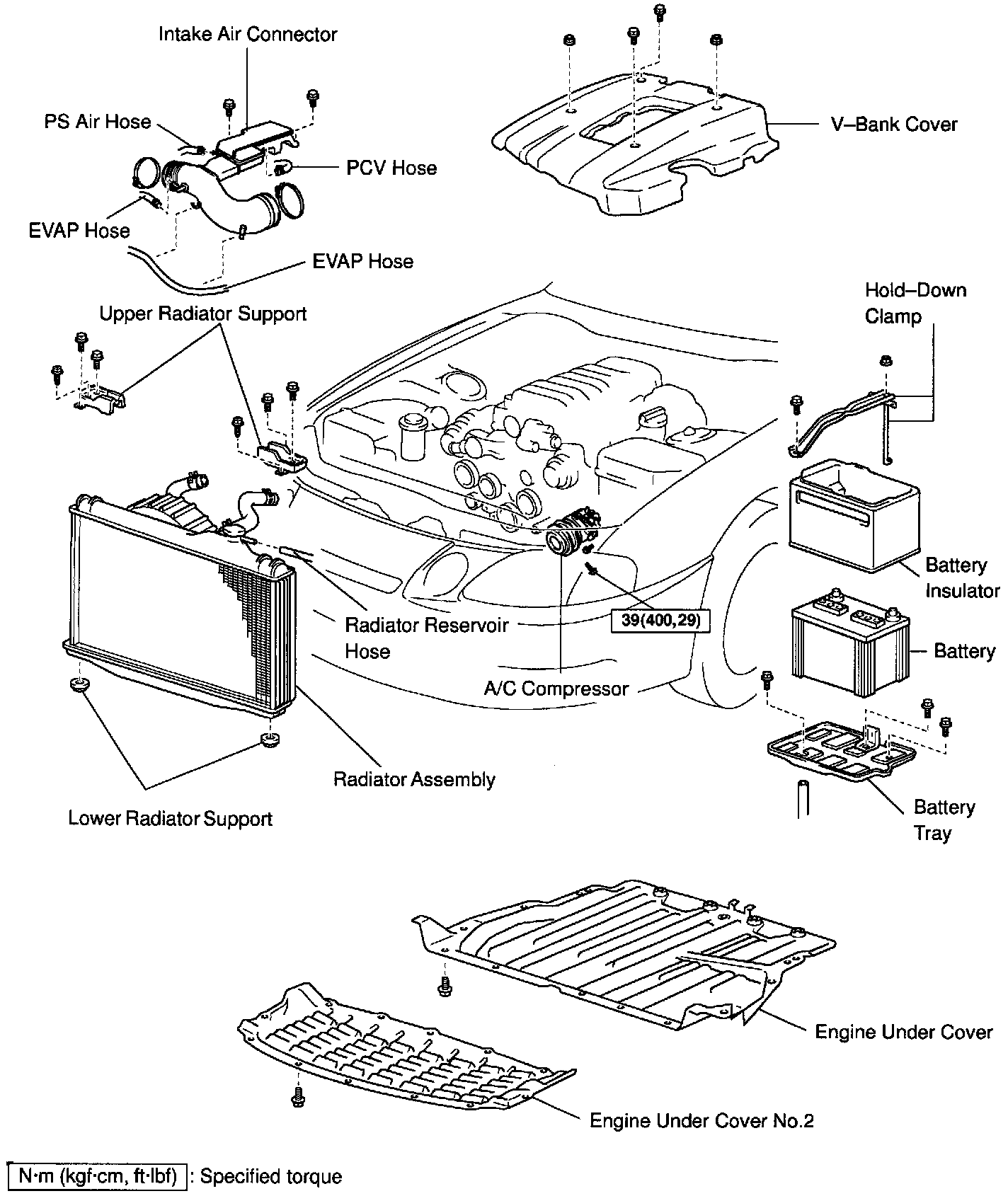

UNDERHOOD VIEW

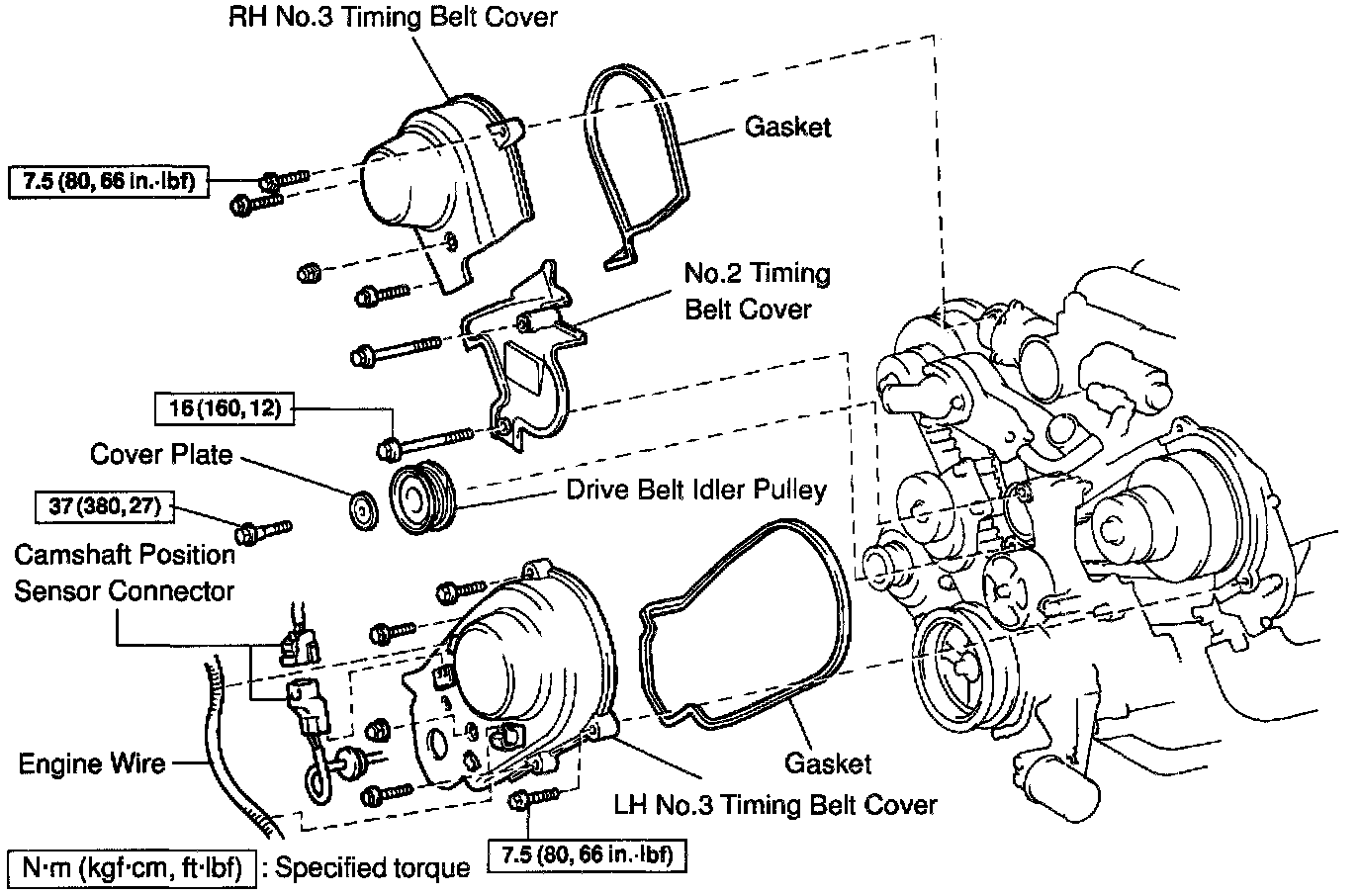

NO.3 TIMING BELT COVER

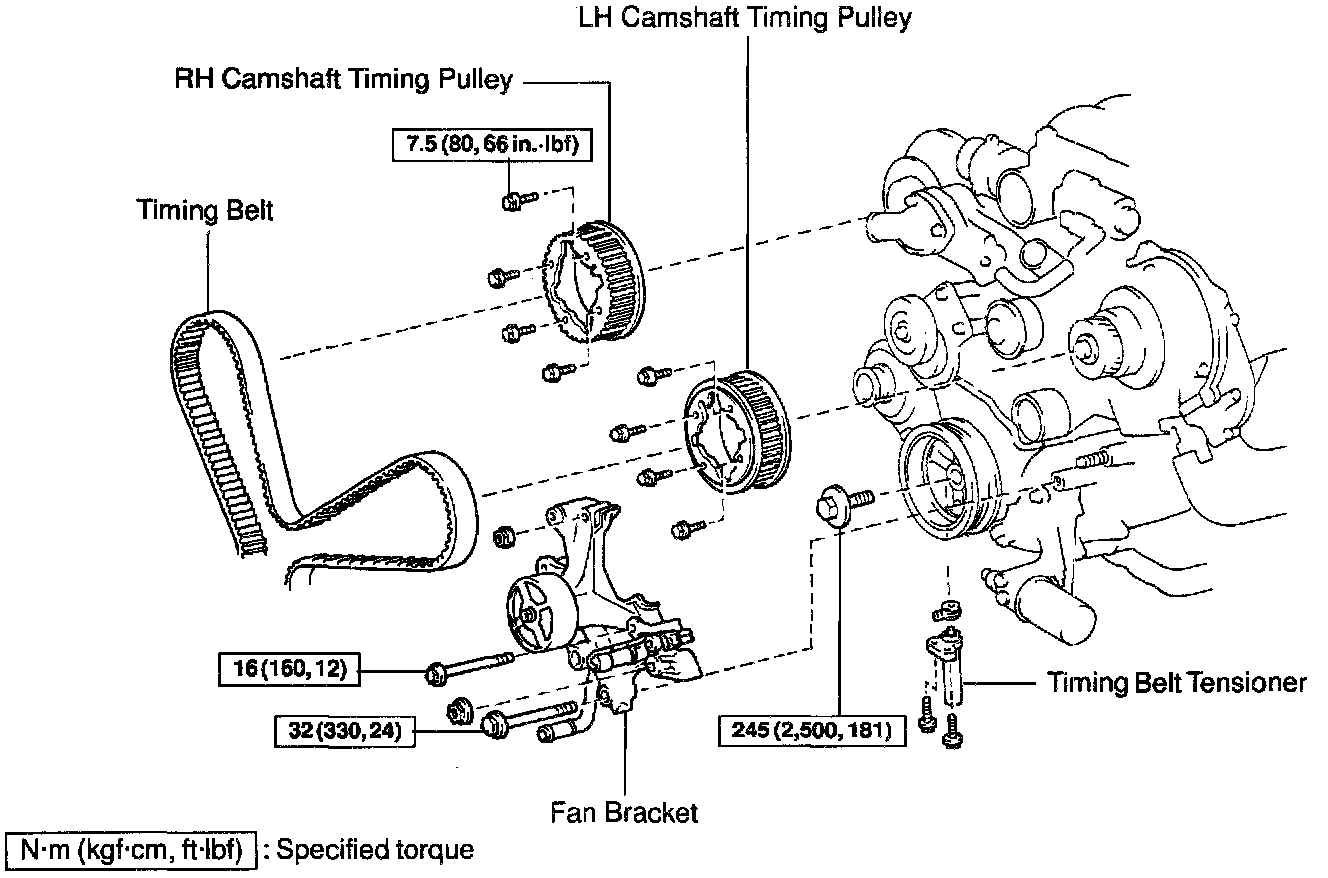

CAMSHAFT PULLEYS

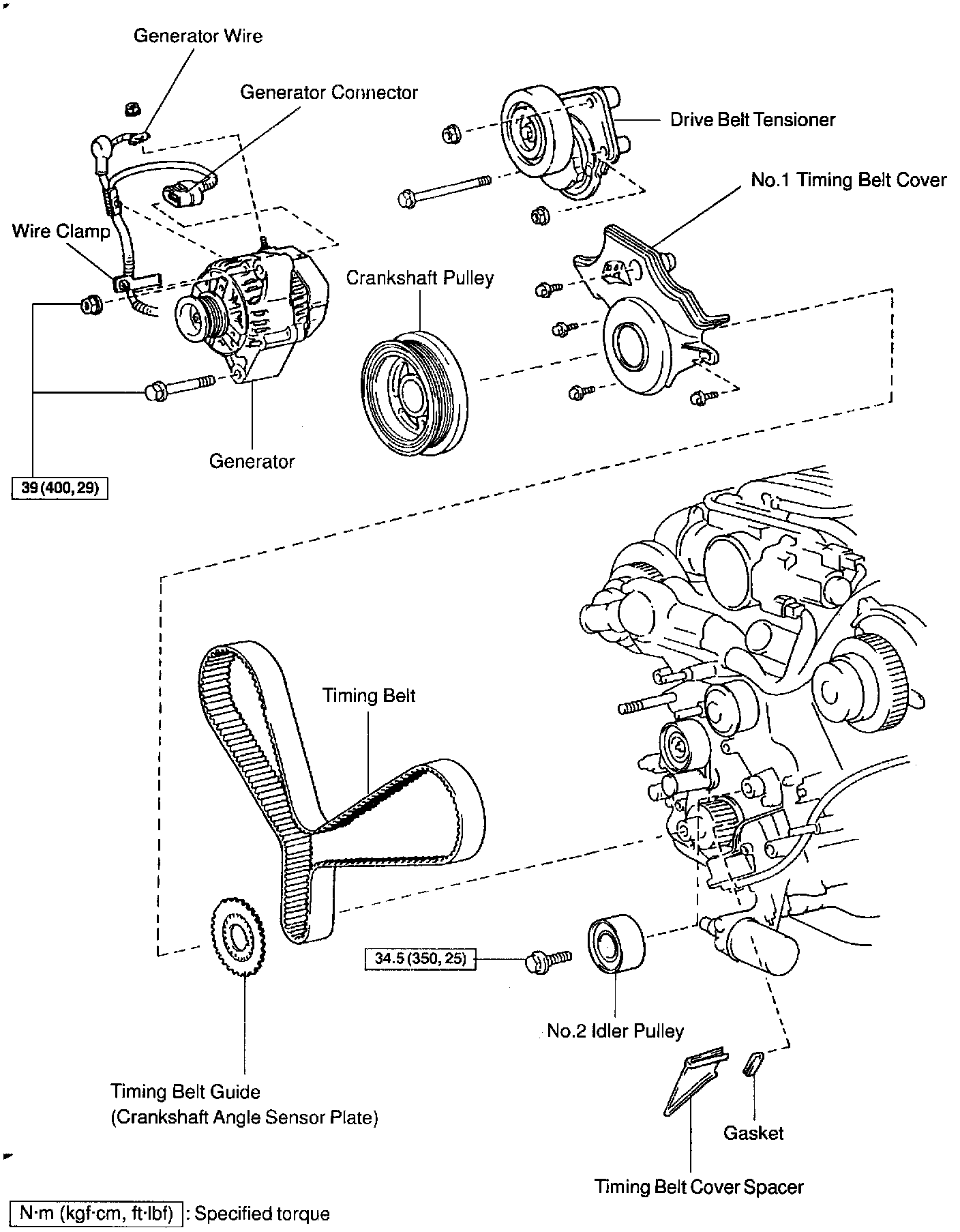

TIMING BELT AND RELATED COMPONENTS

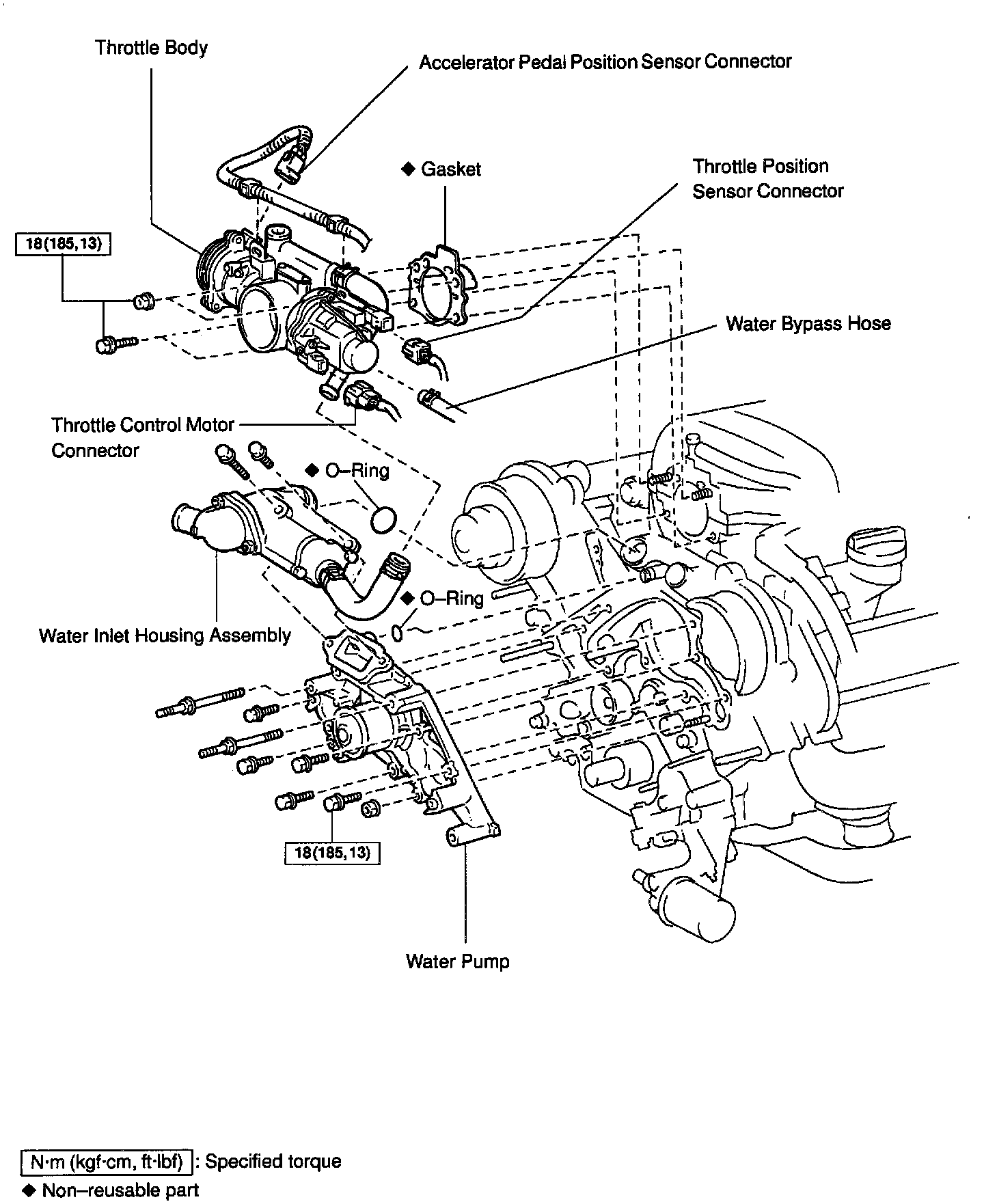

WATER PUMP AND RELATED COMPONENTS
