Timing Belt

UNDERHOOD VIEW

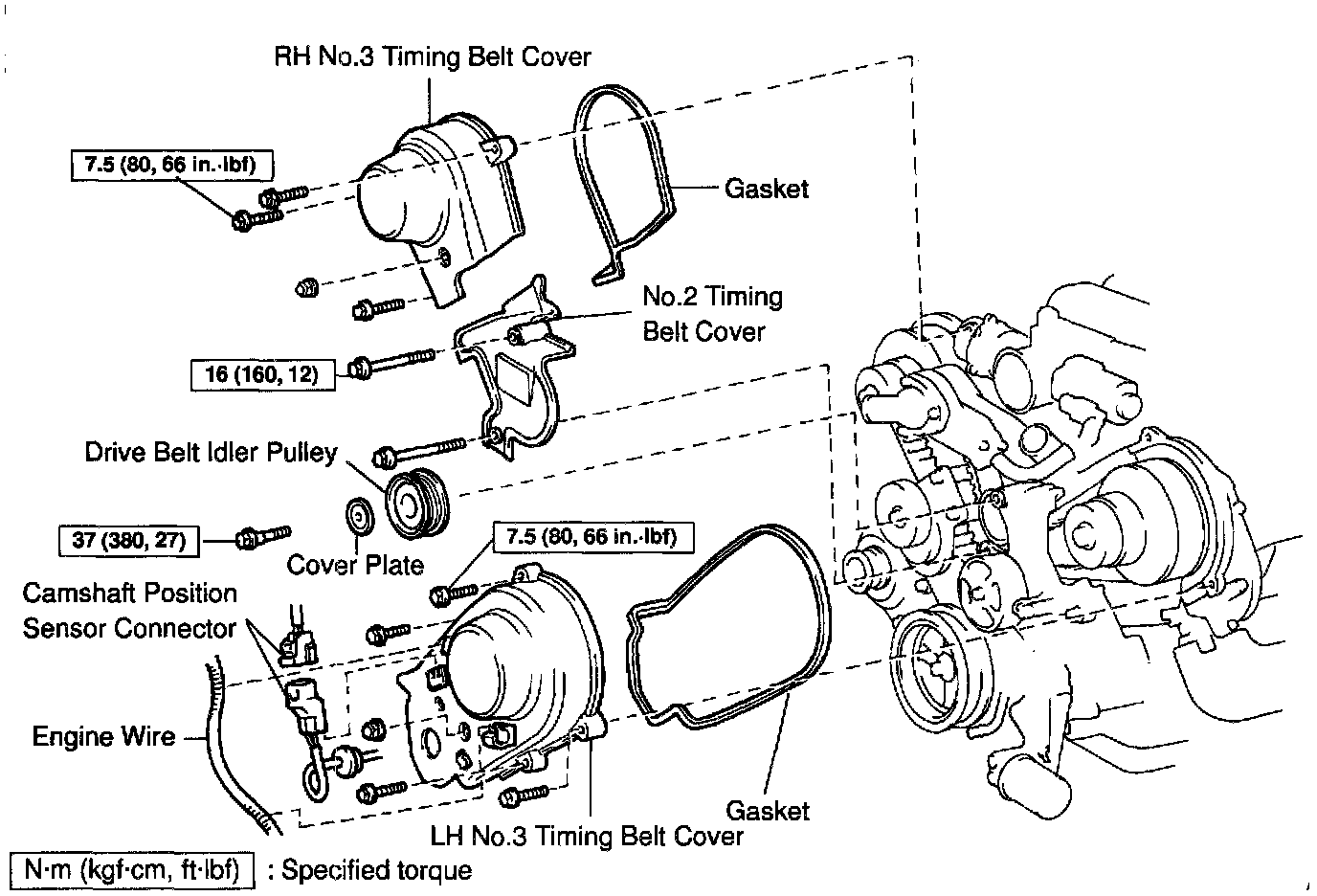

NO.3 TIMING BELT COVER

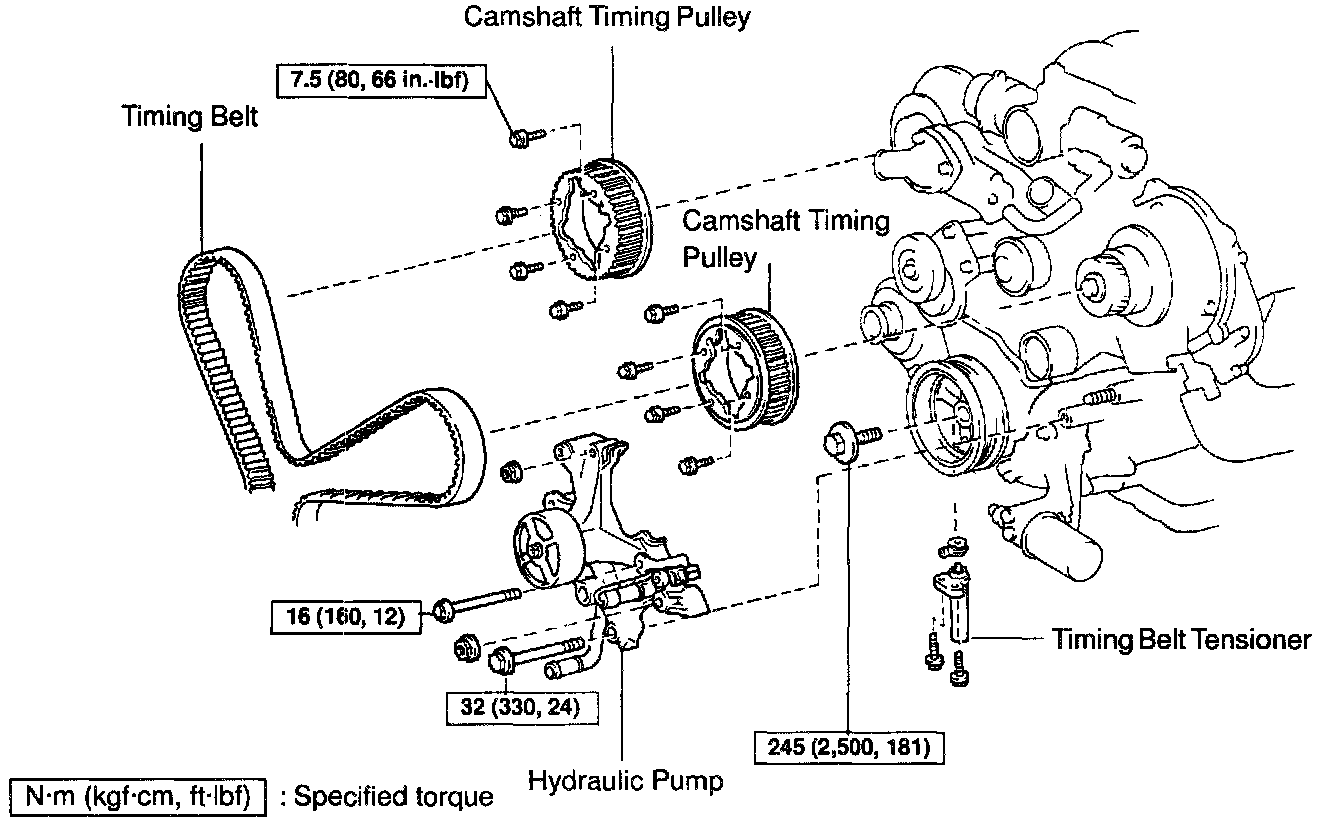

CAMSHAFT TIMING PULLEYS

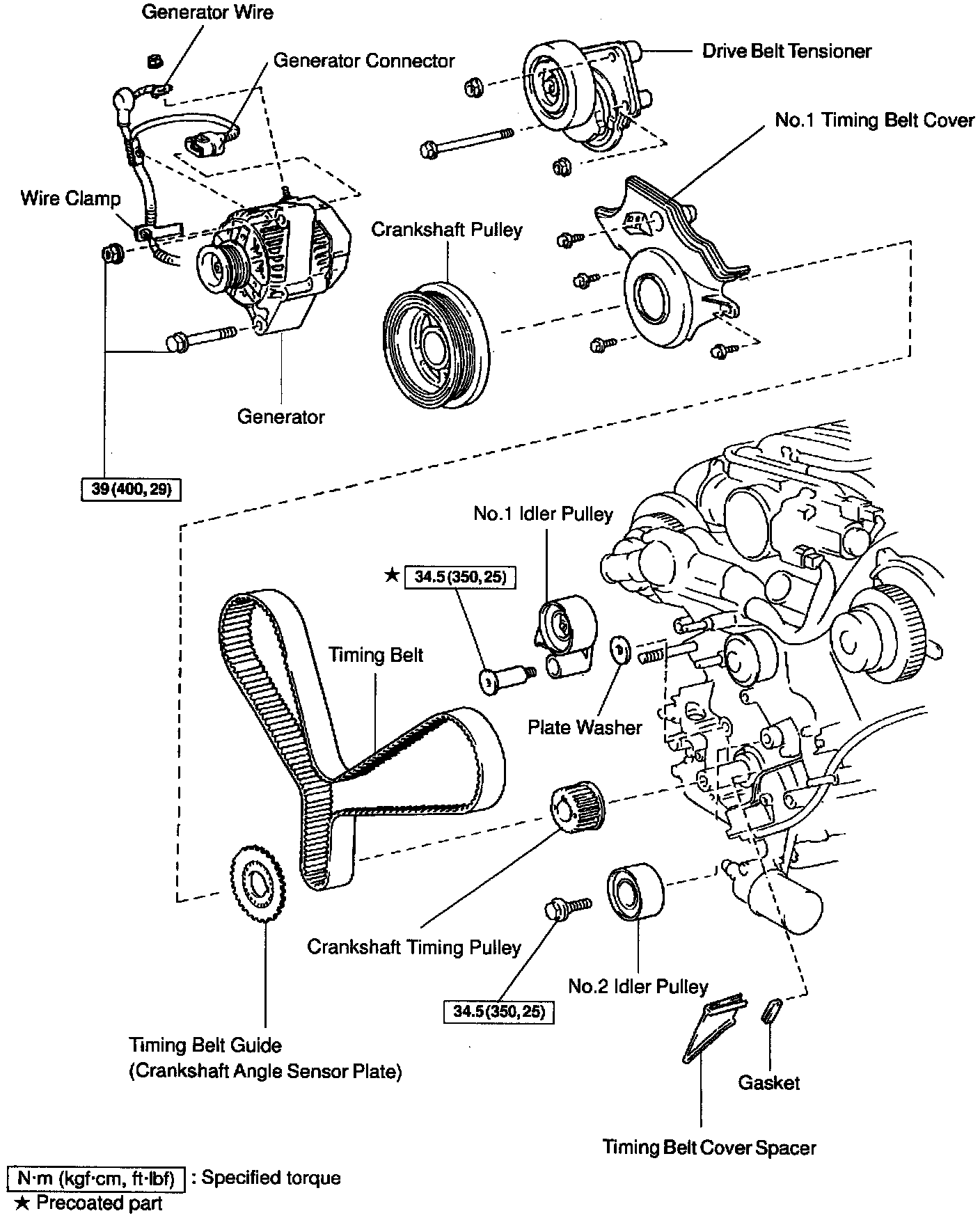

TIMING BELT AND RELATED COMPONENTS
