Home >> Lexus >> 1998 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Diagrams >> Connectors >> Wire Harness to Wire Harness >> SC 300/400

SC 300/400

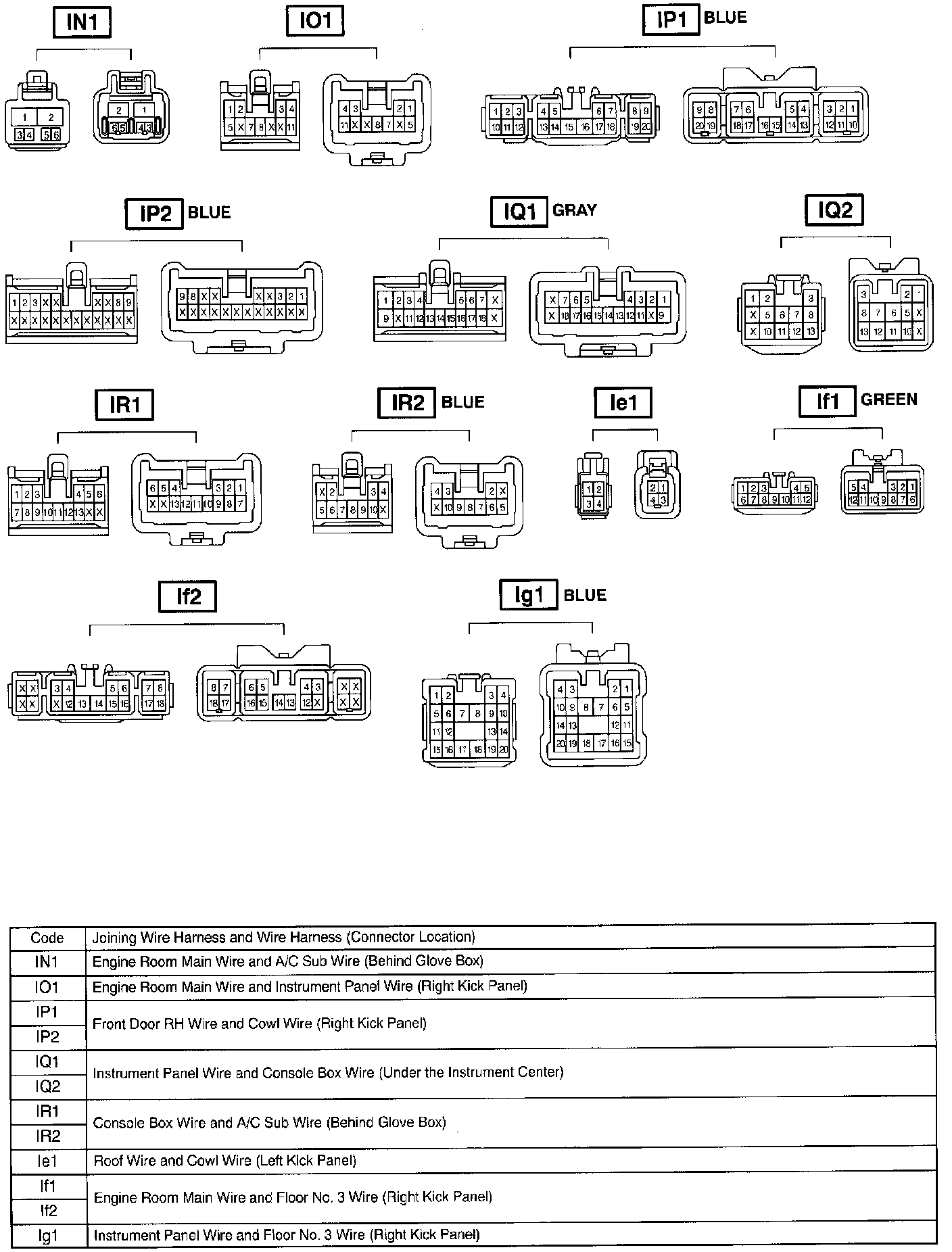

Connector Joining Wire Harness and Wire Harness-Connectors:

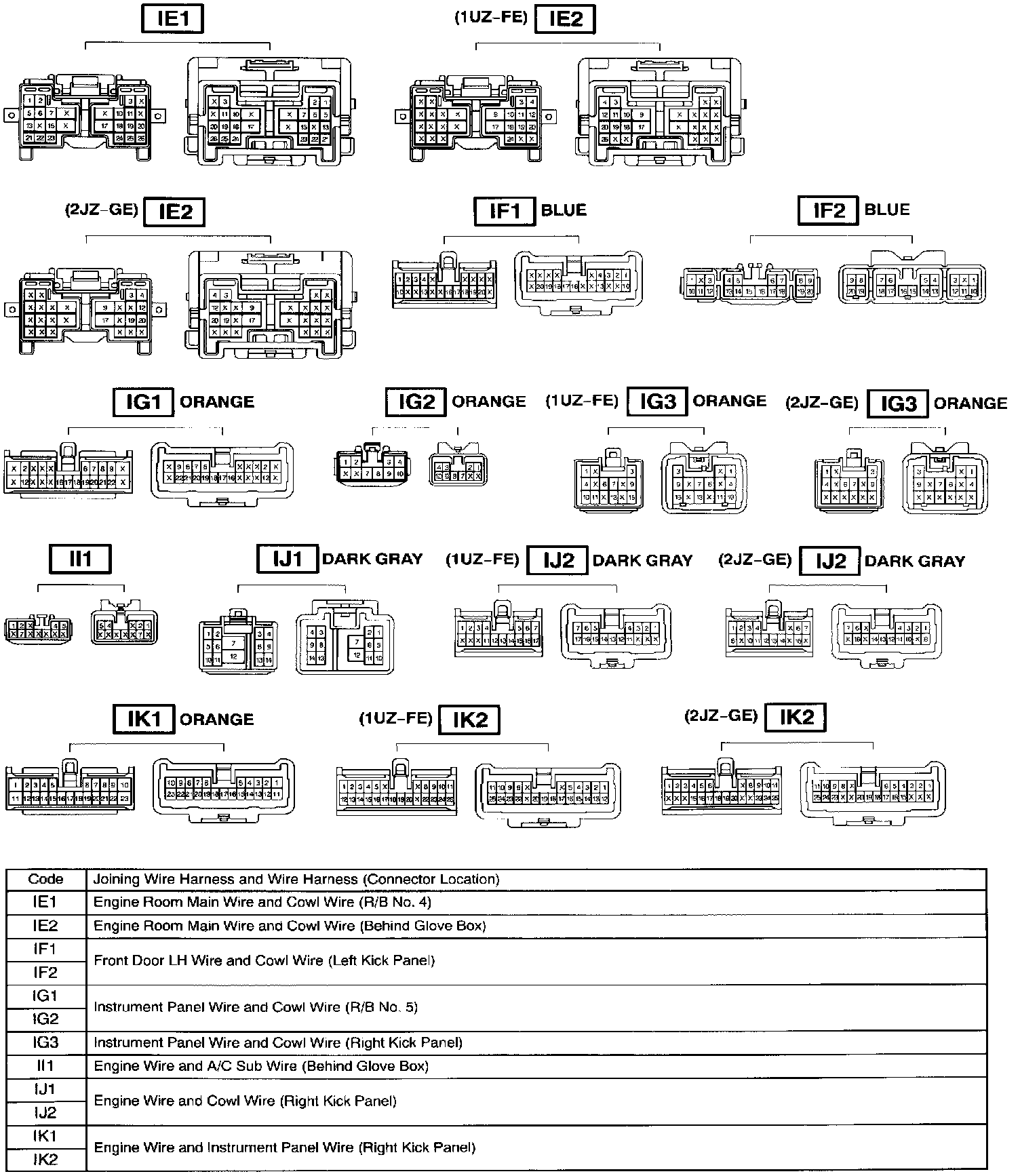

Connector Joining Wire Harness and Wire Harness-Connectors:

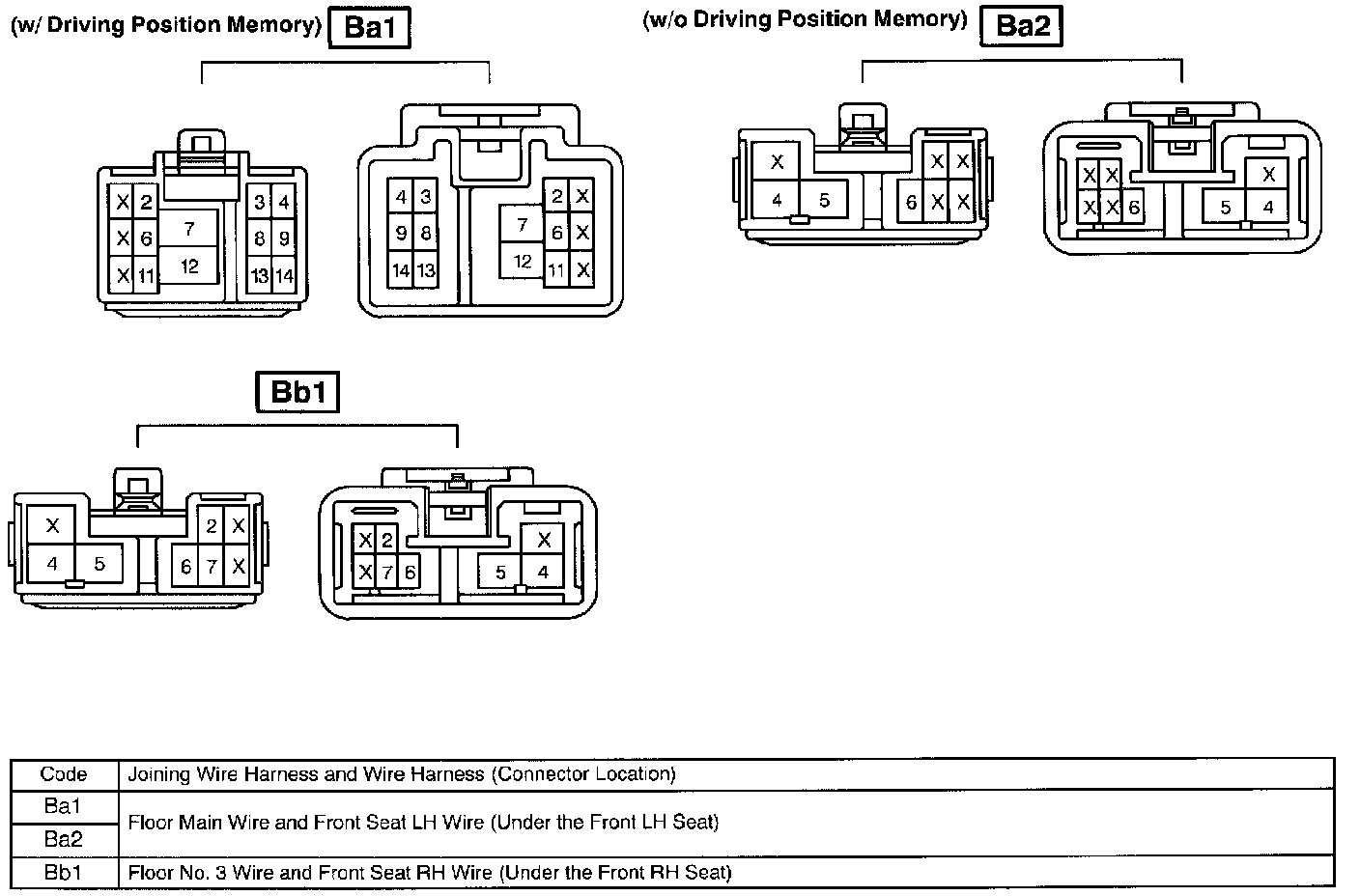

Connector Joining Wire Harness and Wire Harness-Connectors:

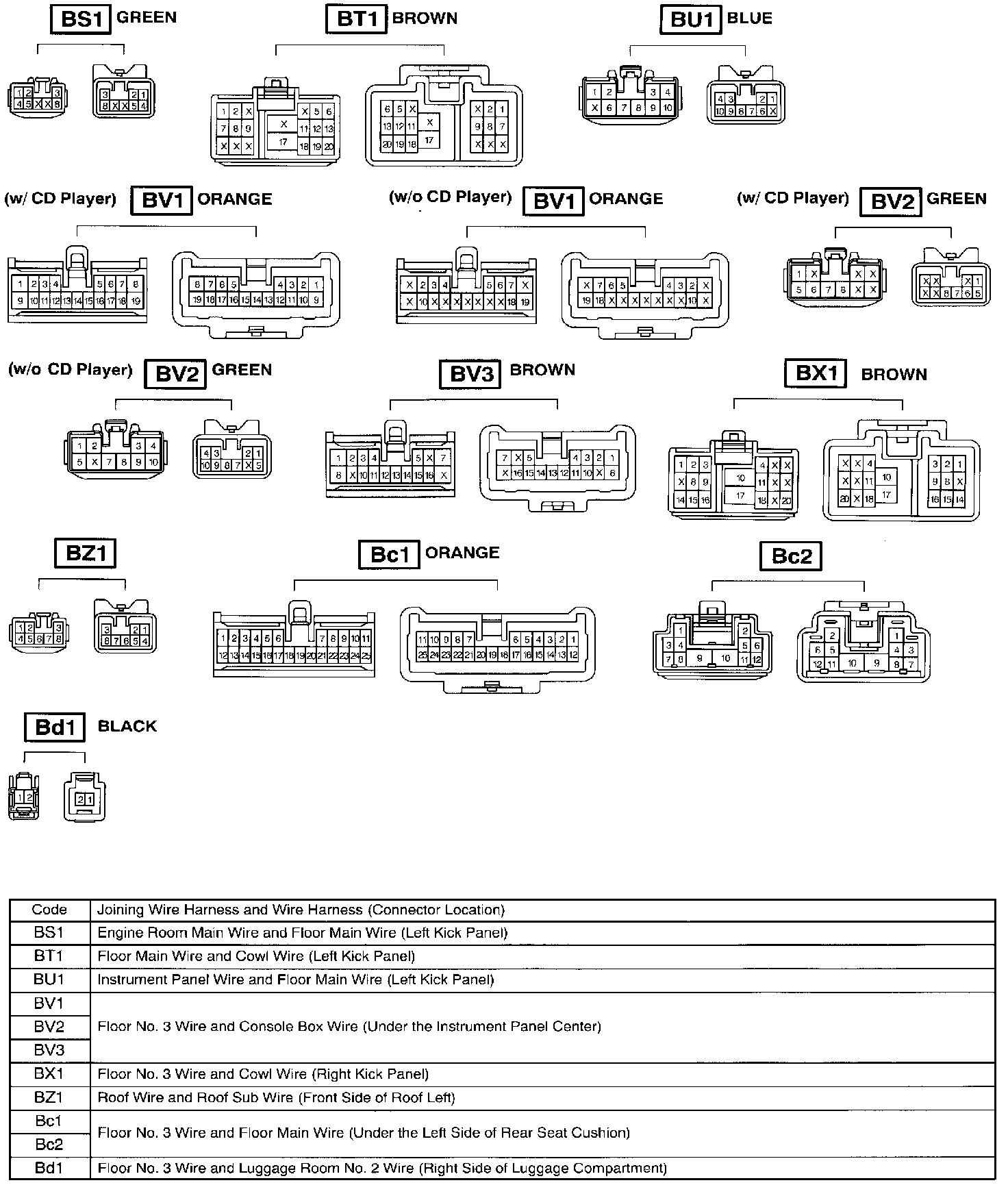

Connector Joining Wire Harness and Wire Harness-Connectors:
