Home >> Lexus >> 1998 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> System Diagram

System Diagram

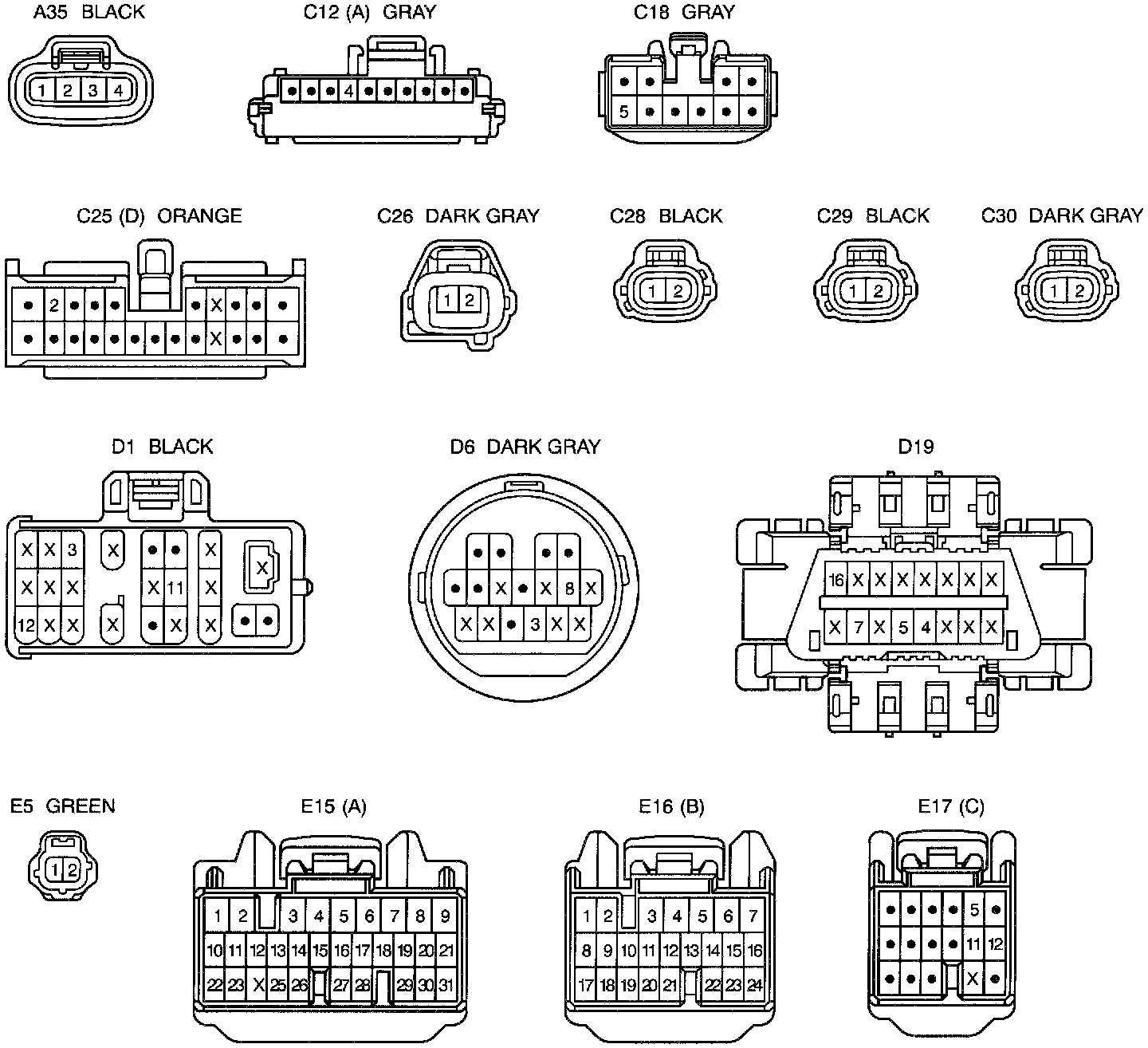

Engine Control And Engine Immobiliser System-Connectors:

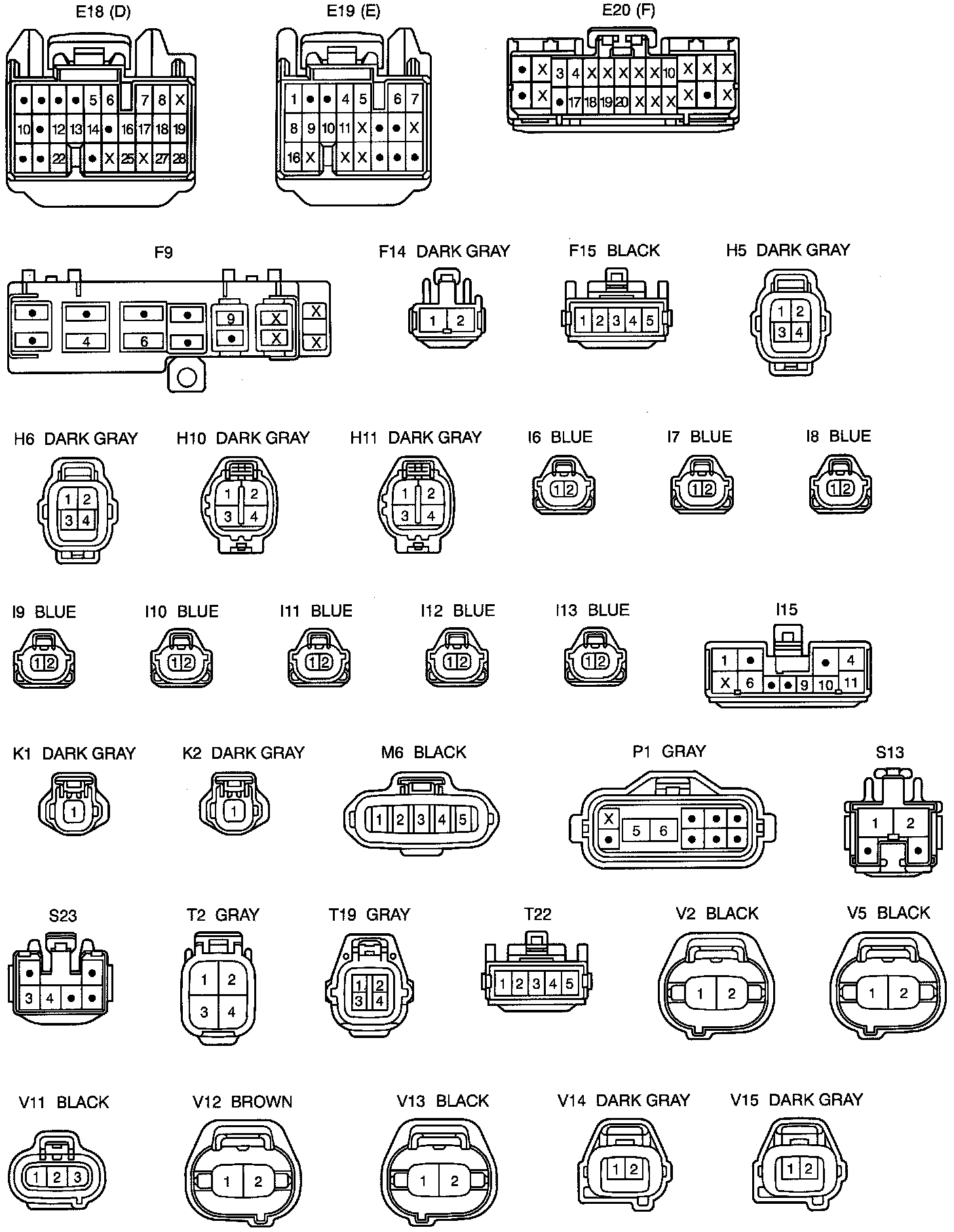

Engine Control And Engine Immobiliser System-Connectors:
