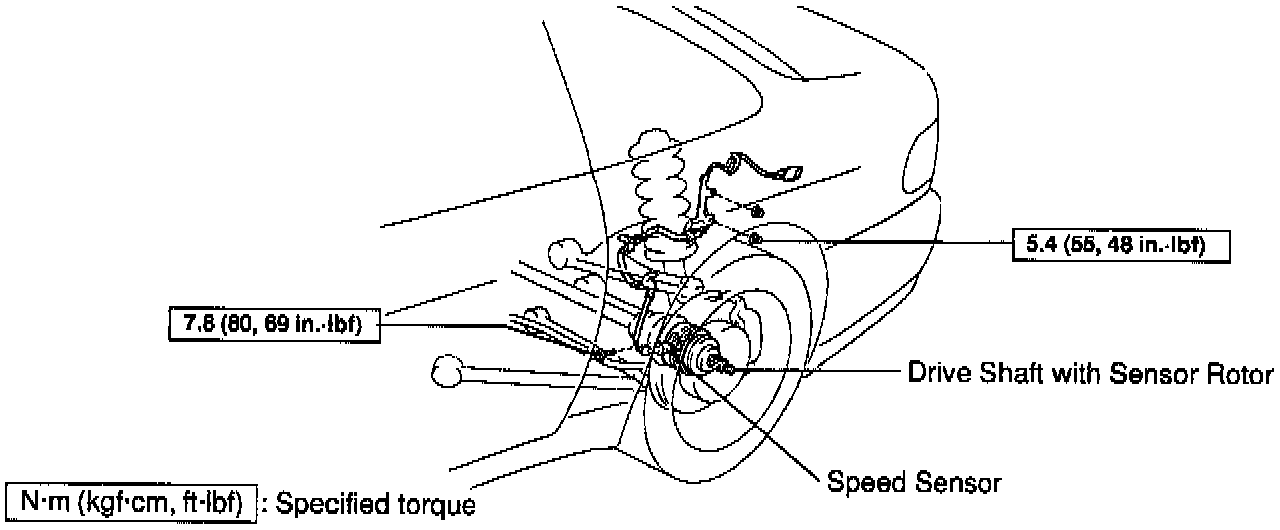

Speed Sensor, Rear

REMOVAL





1. Disconnect speed sensor connector.
a. Remove the side cover of the luggage compartment.
b. Disconnect the speed sensor connector, and pull off the sensor wire harness with the grommet.

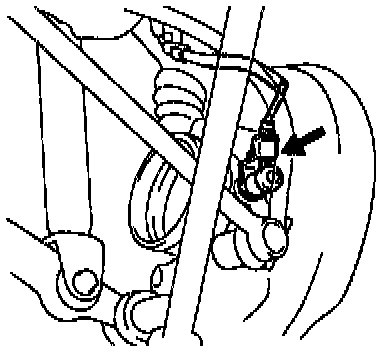

2. Remove speed sensor.
a. Remove the 2 clamp bolts and nuts holding the sensor harness to the body and upper arm.
Torque: 5.4 Nm (48 inch lbs.)
b. Remove the steed sensor from the axle carrier.
Torque: 7.8 Nm (69 inch lbs.)

INSTALLATION
Installation is in the reverse order of removal. After installation, check speed sensor signal.
