ABS & TRAC Actuator

ON-VEHICLE INSPECTION
1. Inspect battery positive voltage.
Battery positive voltage: 10 - 14 V





2. Disconnect connectors from actuator.

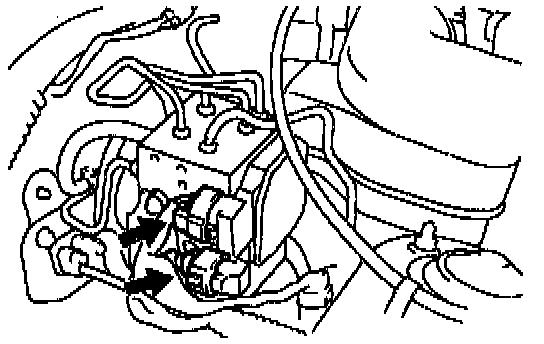

Disconnect the 2 connectors from the actuator.
3. Connect actuator checker Special Service Tool (SST) 09990-0015O, 09990-00250, 09990 00360, 09990-00450 or equivalent, to actuator.

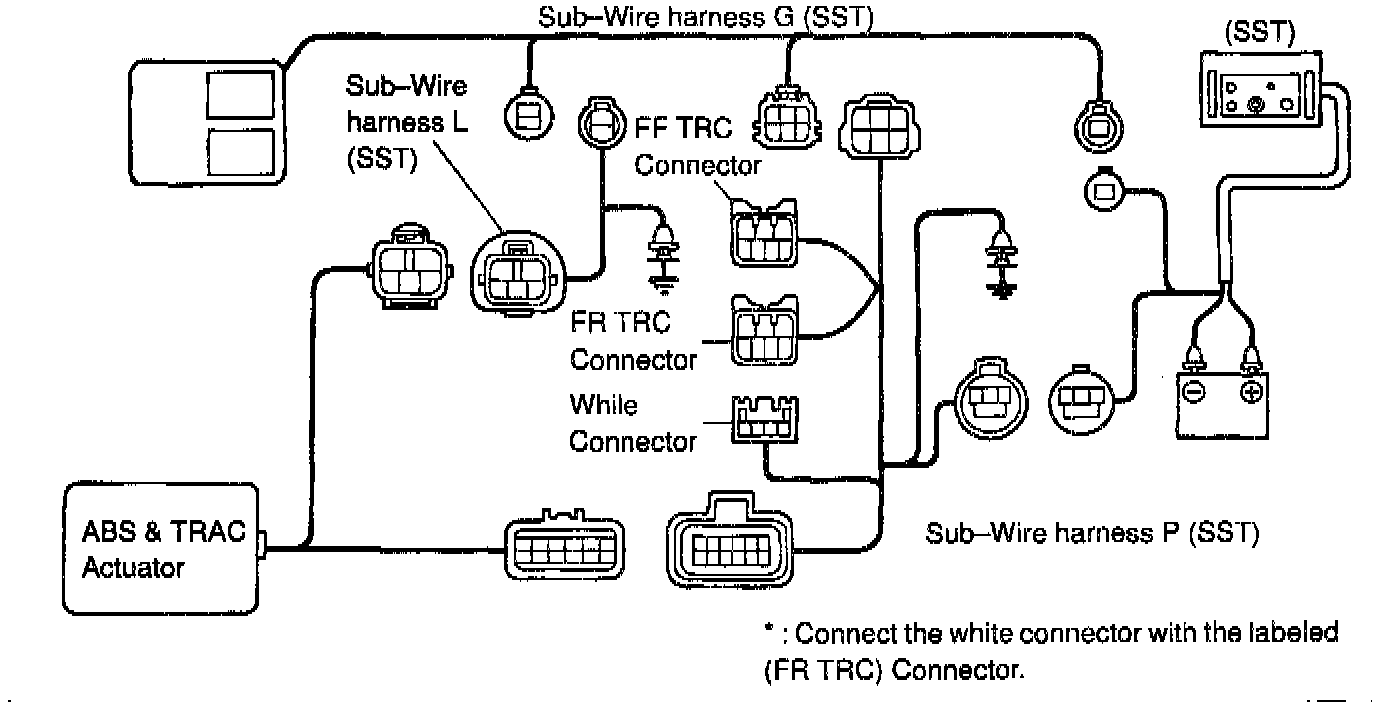

a. Connect the actuator checker (SST) to the actuator side wire harnesses via the sub-wire harnesses (SST), as shown.
b. Connect the red cable of the checker to the battery positive (+) terminal and the black cable to negative (-) terminal. Connect the black cable of the sub-wire harness to the battery negative (-) terminal or body ground.

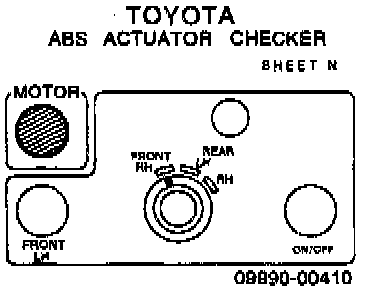

c. Place "SHEET N" SST 09990-00410 on the actuator checker.
4. Inspect brake actuator operation of front LH wheel.
a. Start the engine, and run it at idle speed.

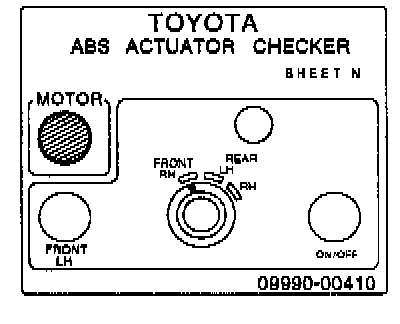

b. Turn the selector switch of the actuator checker to the "FRONT RH" position.

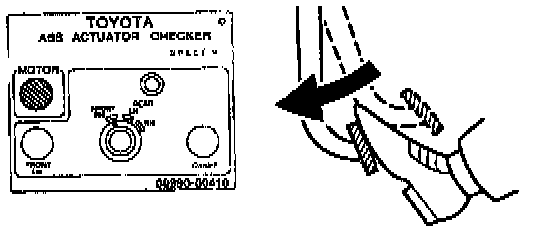

c. Push and hold in the MOTOR switch for a few second
d. Depress the brake pedal and hold it until step (g) is completed.

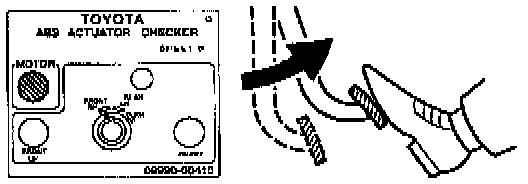

e. Push the POWER and check that the brake pedal does not go down.

NOTICE: Do not push the POWER switch for more than 10 seconds.

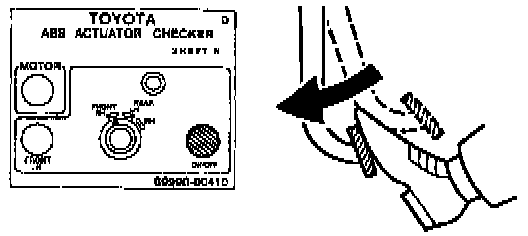

f. Release the switch, and check that the pedal goes down.





g. Push and hold in the MOTOR switch for a few seconds, and check that the pedal returns.
h. Release the brake pedal.





i. Push and hold in the MOTOR switch for a few seconds.
j. Depress the brake pedal and hold it for about 15 seconds. As you hold the pedal down, push the MOTOR switch for a few seconds. Check that the brake pedal does not pulsate.
k. Release the brake pedal.
5. Inspect for other wheels.
a. Turn the selector switch to the "REAR LH" position, and inspect the "REAR LH" wheel.
b. Repeat c) to j) of step 4, checking the actuator operation in the same way.





c. Also, inspect the "REAR RH" and "FRONT RH" positions following the same procedure.

HINT: When inspecting the "FRONT RH" position, push the FRONT LH switch instead of the POWER switch. This makes it possible to inspect wherever the selector switch position indicates.

6. Push motor switch.
Push and hold in the MOTOR switch for a few seconds.
7. Disconnect actuator checker SST 09990-00150, 09990-00250, 09990-00360, 09990-00410, 09990-00450 from actuator.
a. Disconnect the actuator checker (SST) and sub-wire hanesses (SST) from the actuator.
b. Connect the 2 actuator connectors.
c. Clear the DTC.
