ABS and TRAC Actuator

REMOVAL





1. Disconnect brake lines.

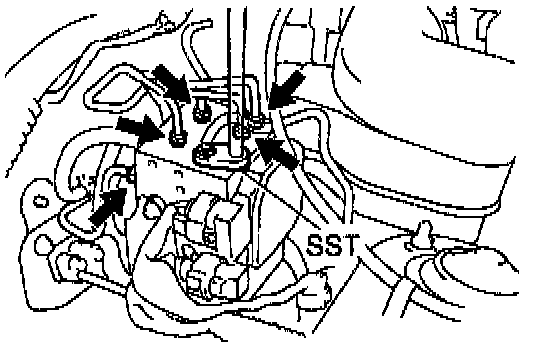

Using Special Service Tool (SST) 09751-36011 or equivalent, disconnect the brake lines from the ABS & TRAC actuator.
Torque: 15 Nm (11 ft. lbs.)
2. Remove ABS & TRAC actuator assembly.
a. Disconnect the 2 connectors.
b. Remove the bolt, 3 nuts and ABS & TRAC actuator assembly.
Torque: 19 Nm (14 ft. lbs.)
3. Remove ABS & TRAC actuator.
a. Remove the 2 nuts and ABS & TRAC actuator.
Torque: 5.4 Nm (48 inch lbs.)
b. Remove the 2 cushion bolts and 3 cushions.

INSTALLATION
Installation is in the reverse order of removal. After installation, fill brake reservoir with brake fluid, bleed brake system and check for leaks.
