Slip Indicator Light Circuit

SLIP Indicator Light Circuit

CIRCUIT DESCRIPTION
The SLIP indicator blinks during TRAC operation.

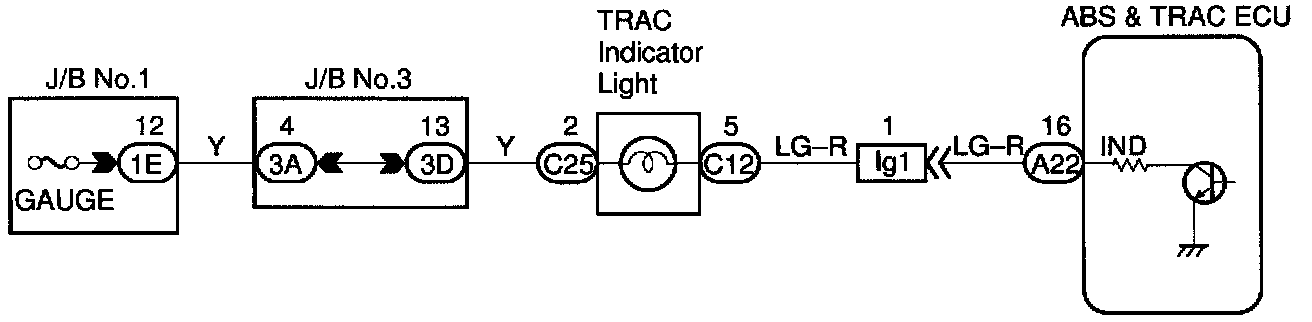

WIRING DIAGRAM

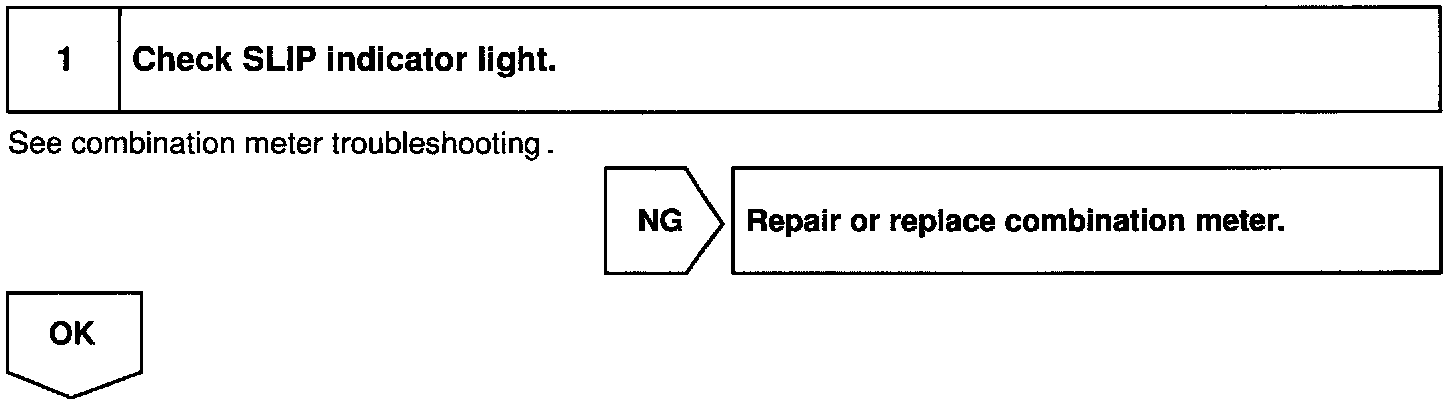

Step 1:

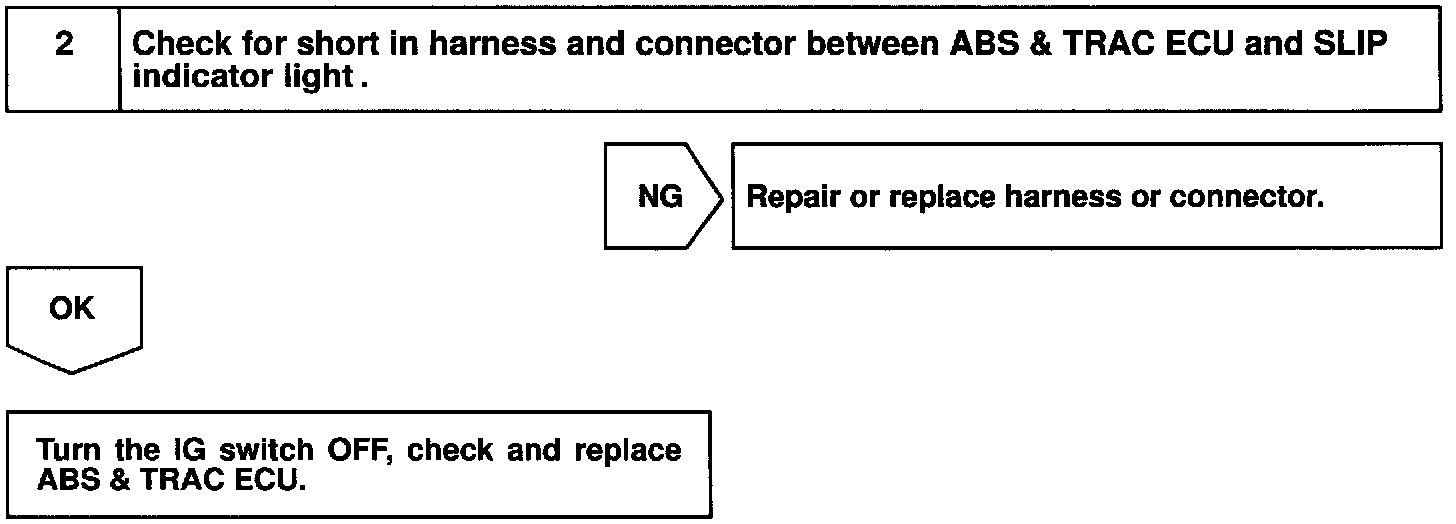

Step 2:

INSPECTION PROCEDURE
