Home >> Lexus >> 1998 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Passengers Side

Passengers Side

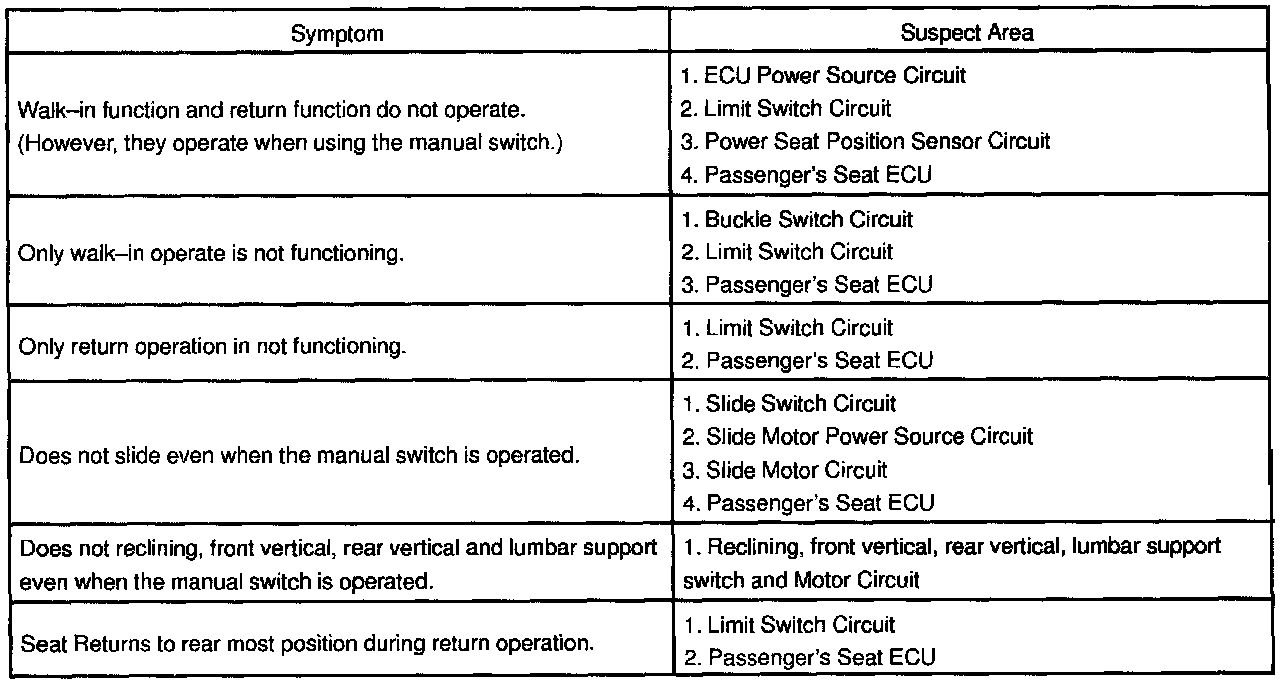

DIAGNOSIS BY SYMPTOM





Perform troubleshooting the circuits for the applicable problem symptom in the order given in the chart above.
