Slide Switch Circuit

Slide Switch Circuit

CIRCUIT DESCRIPTION
When the power seat control switch is operated, a signal is sent to the ECU and the ECU applies the power source to the slide motor.

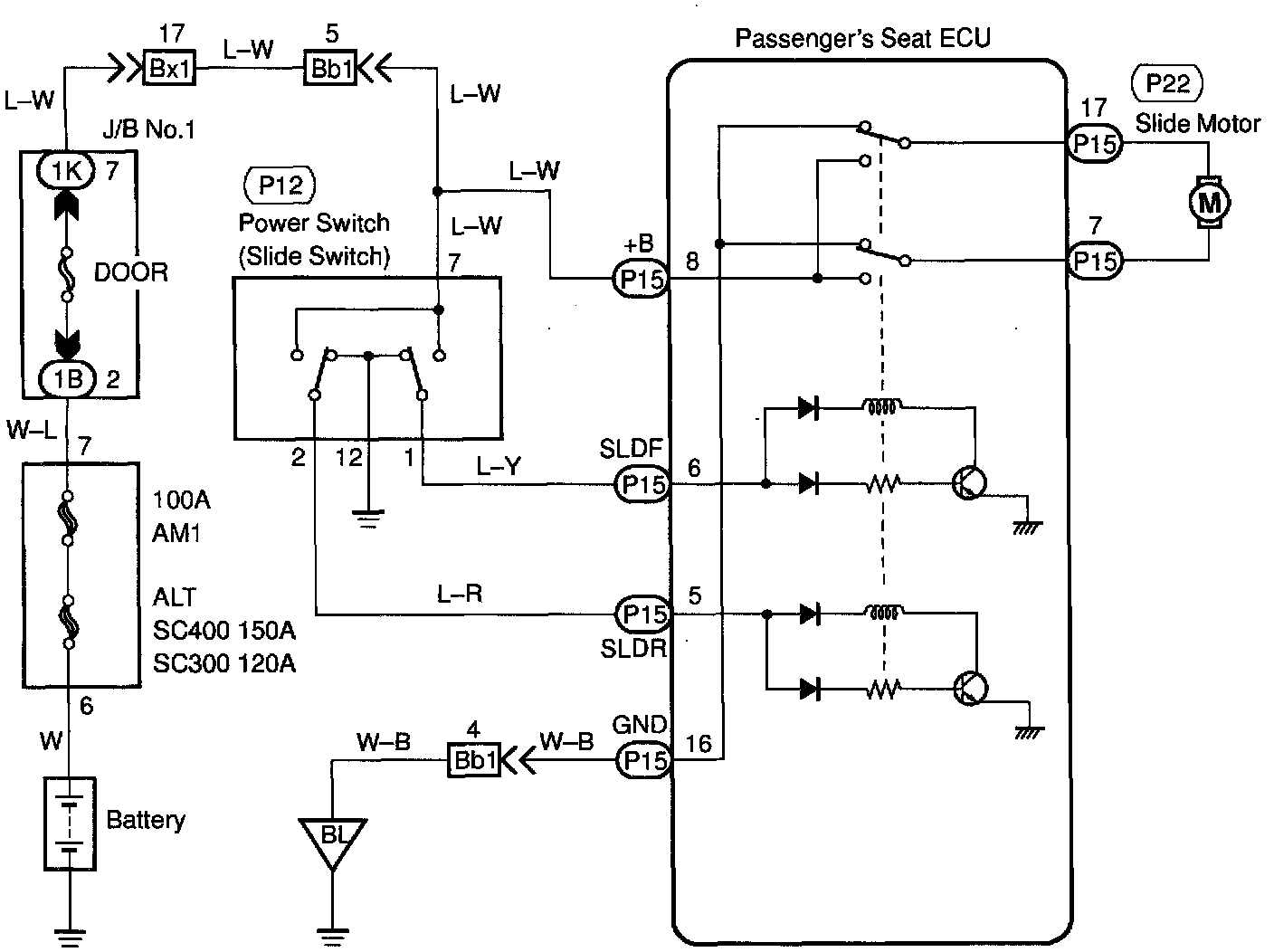

WIRING DIAGRAM

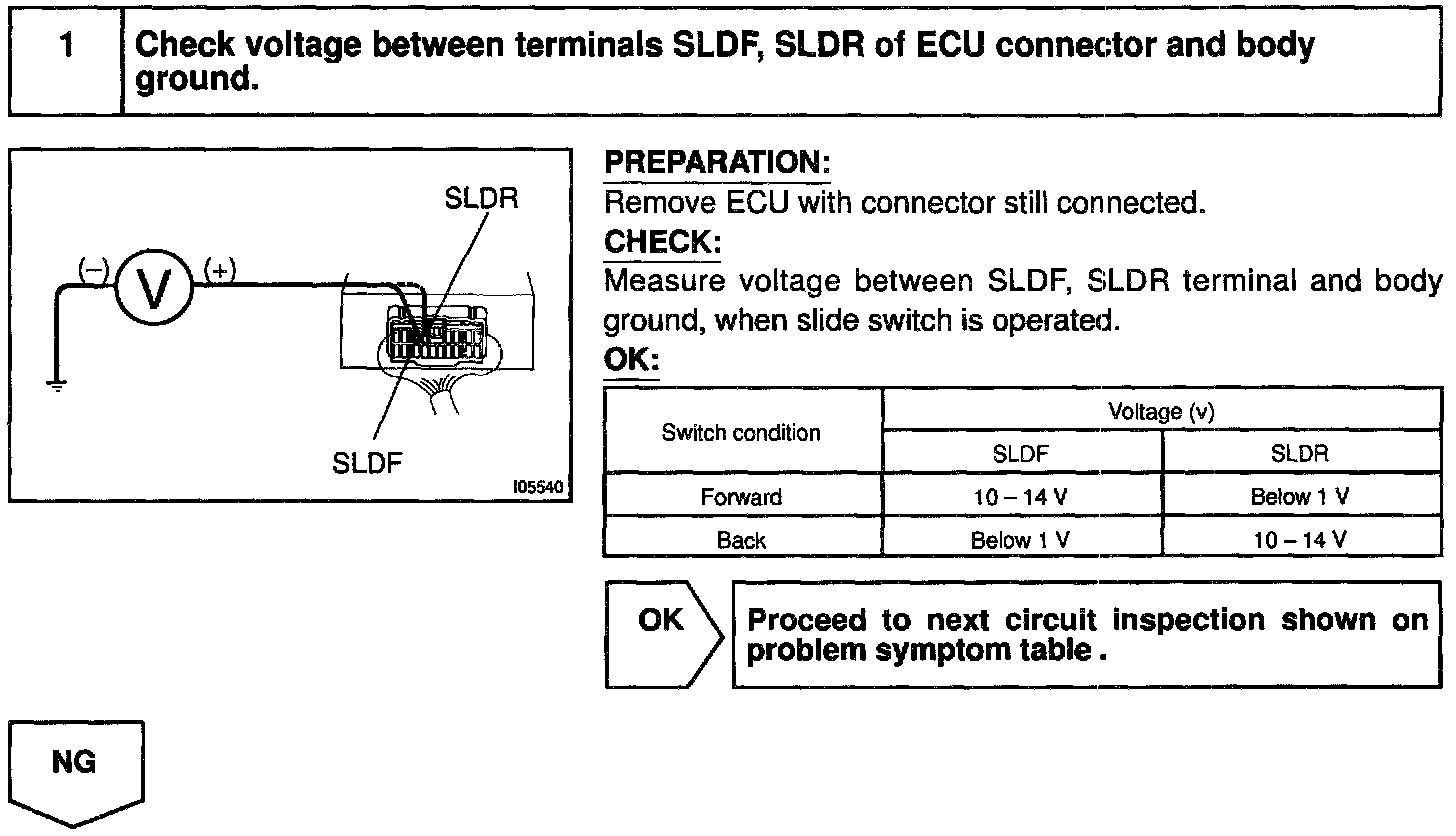

Step 1:

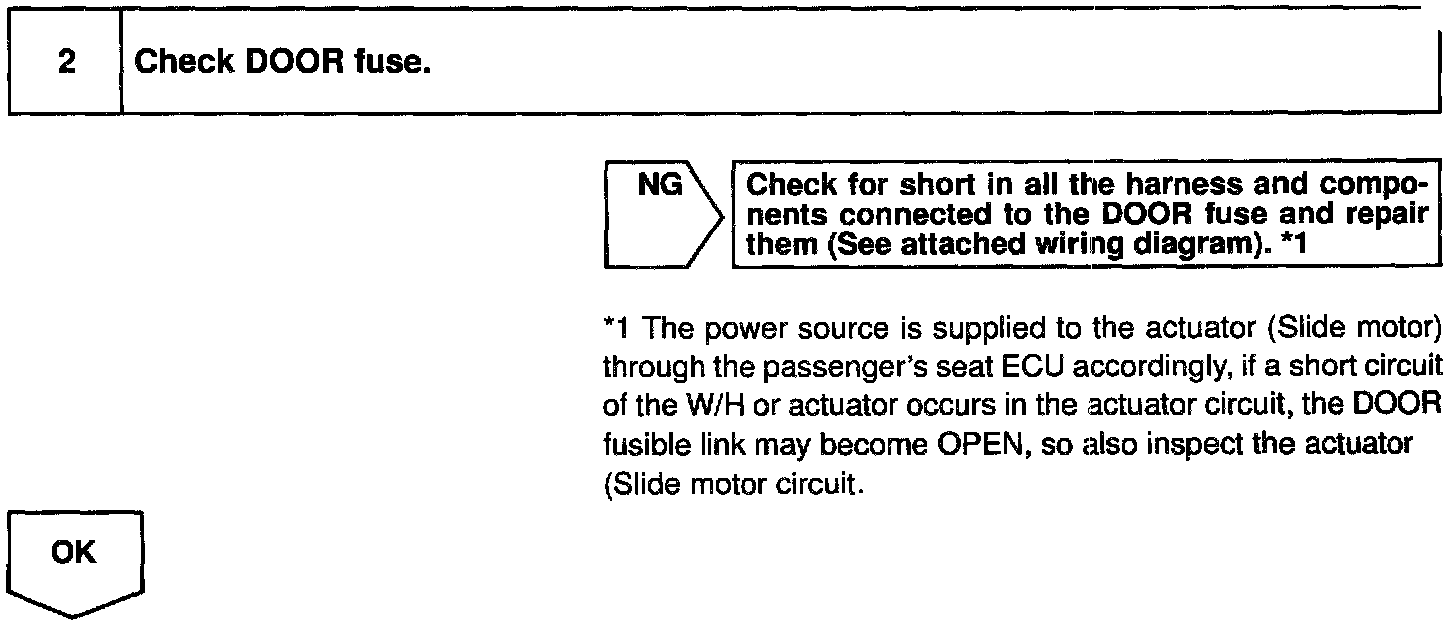

Step 2:

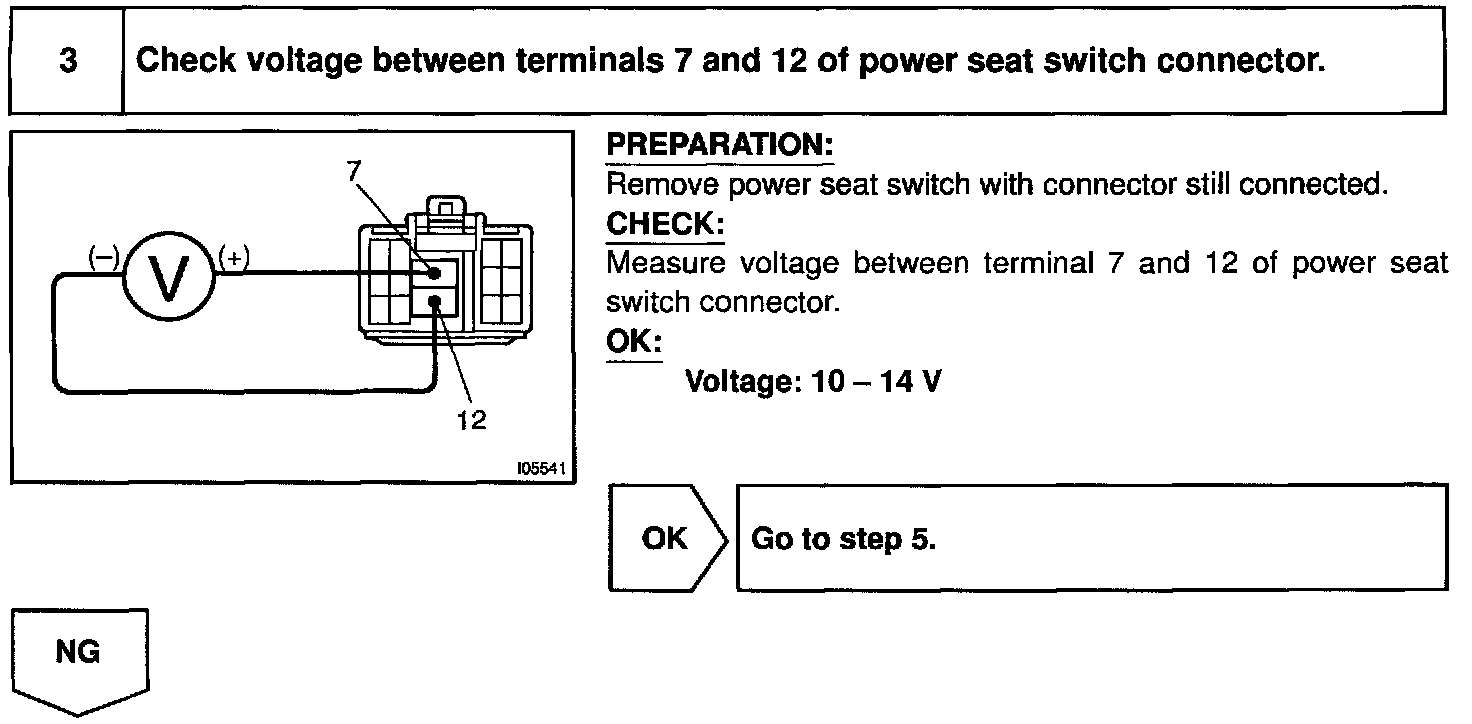

Step 3:

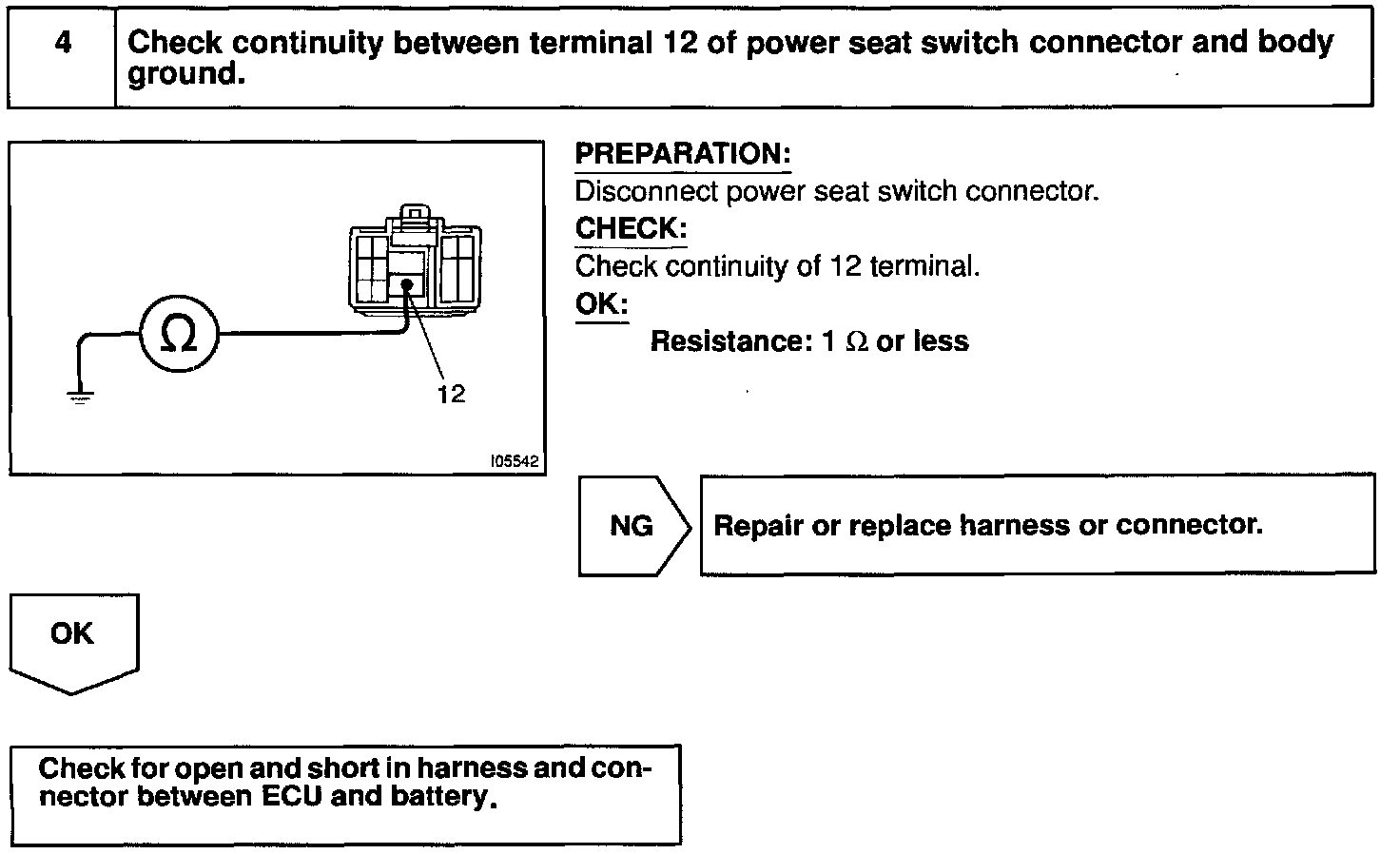

Step 4:

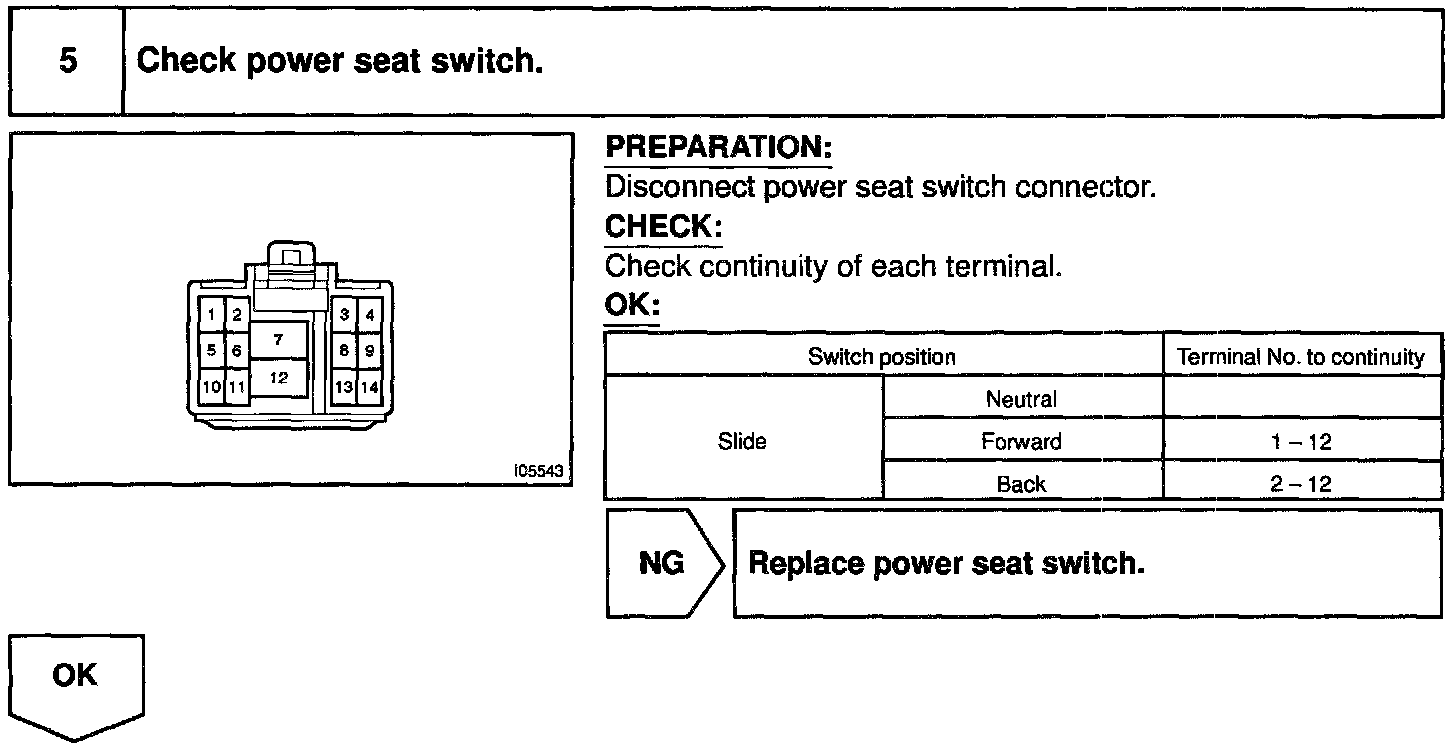

Step 5:

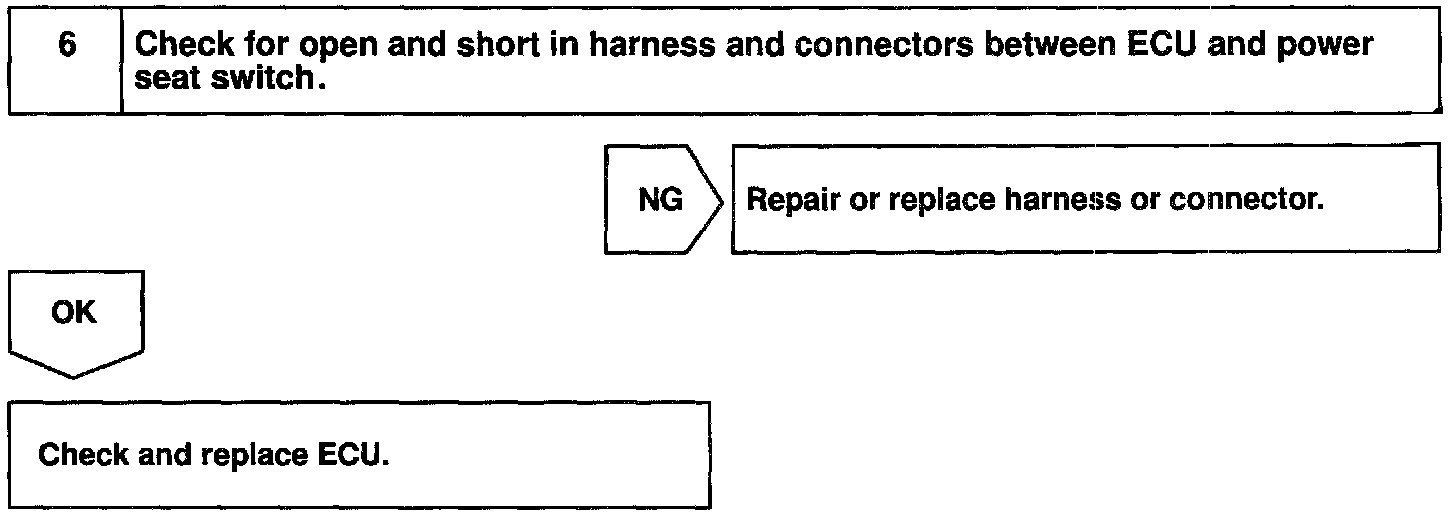

Step 6:

INSPECTION PROCEDURE
