Slide Motor Power Source Circuit

Slide Motor Power Source Circuit

CIRCUIT DESCRIPTION
The passenger's seat ECU control the slide motor.

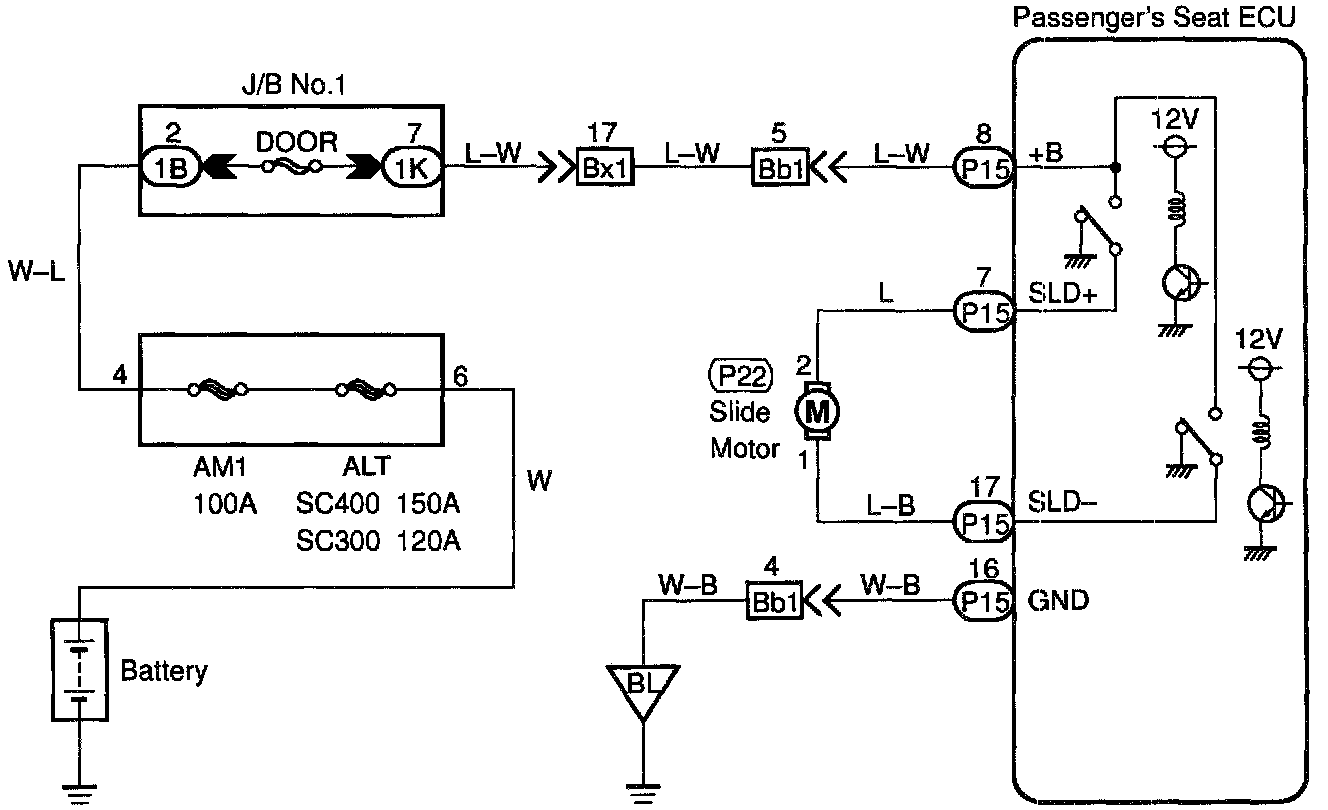

WIRING DIAGRAM

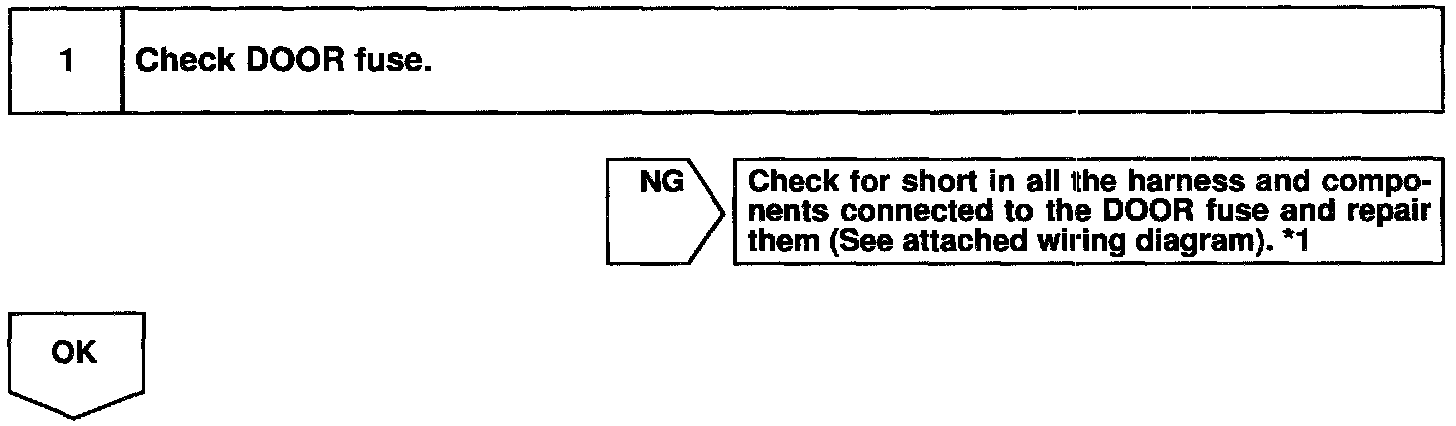

Step 1:

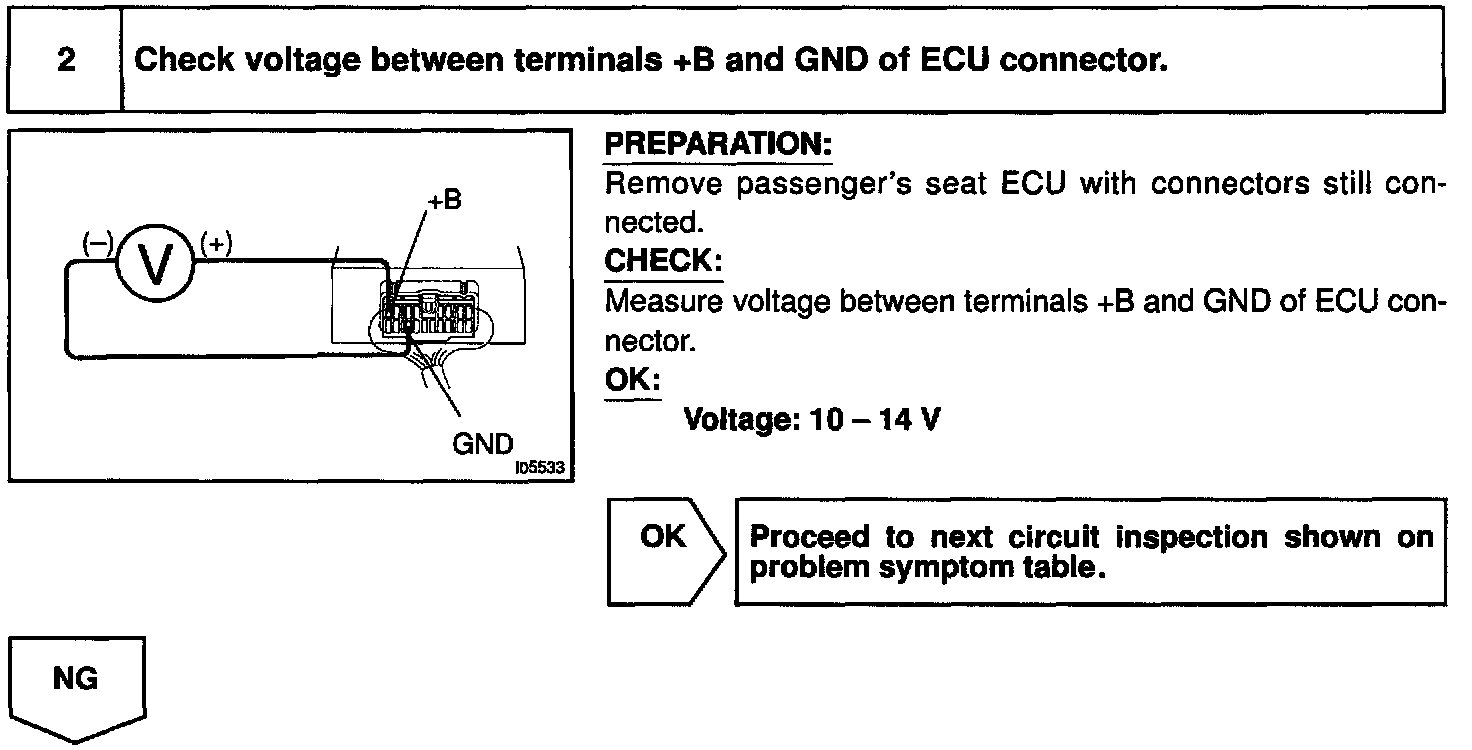

Step 2:

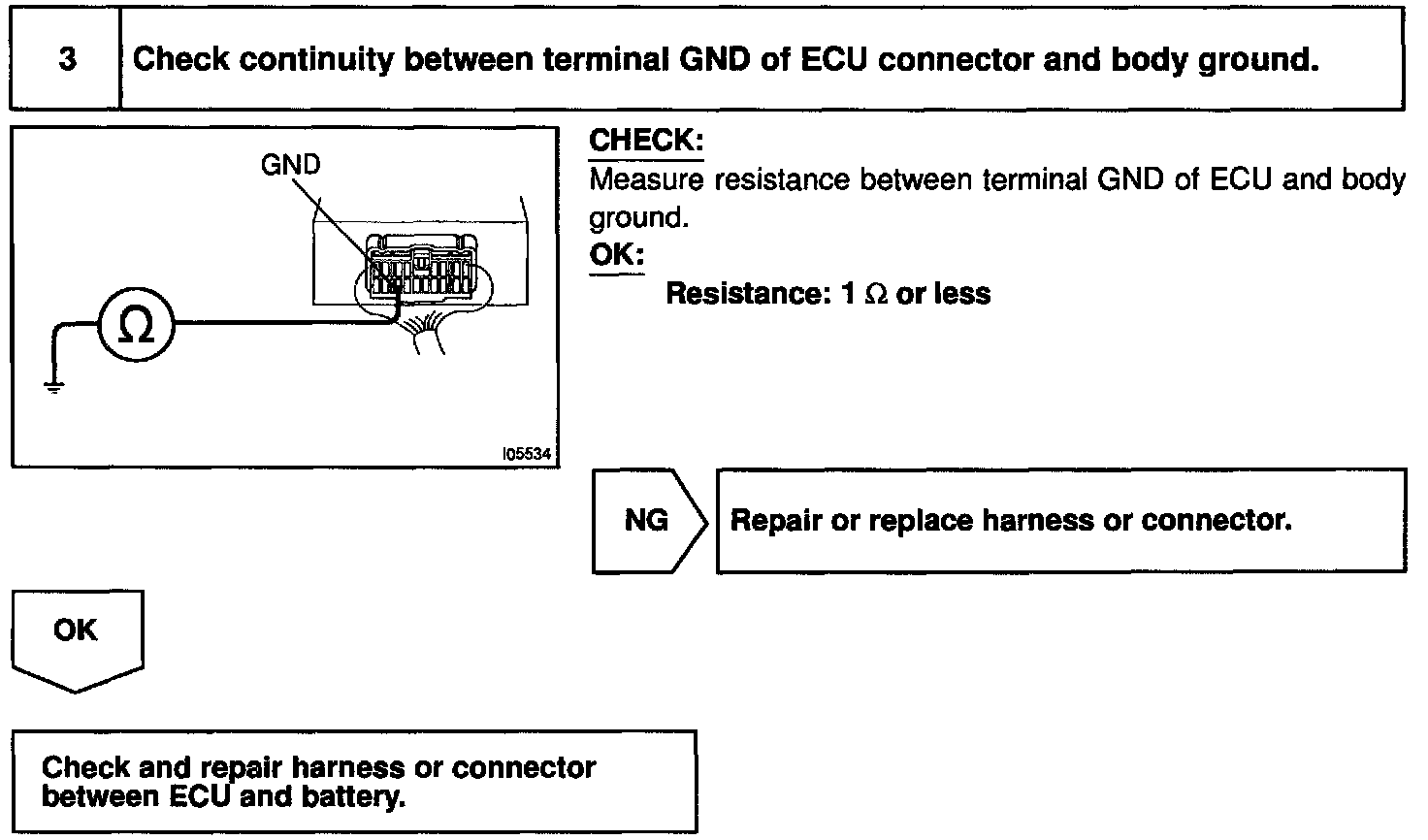

Step 3:

INSPECTION PROCEDURE
