Slide Motor Circuit

Slide Motor Circuit

CIRCUIT DESCRIPTION
The passenger's seat ECU control the slide motor.

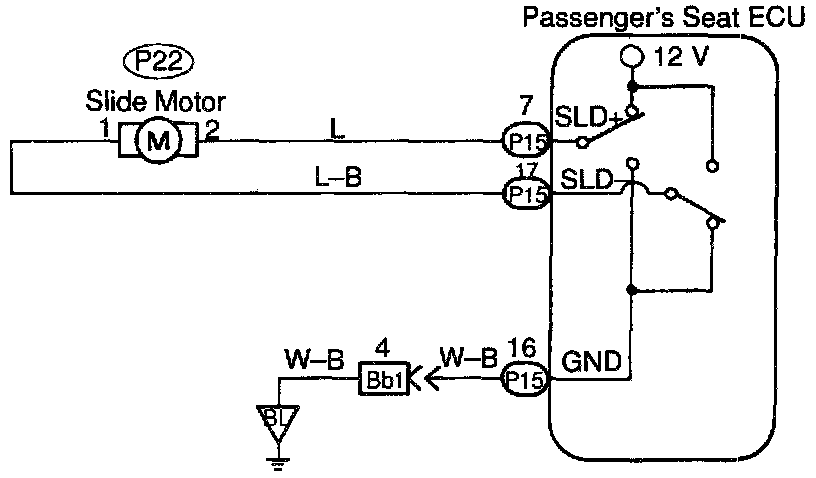

WIRING DIAGRAM

Step 1:

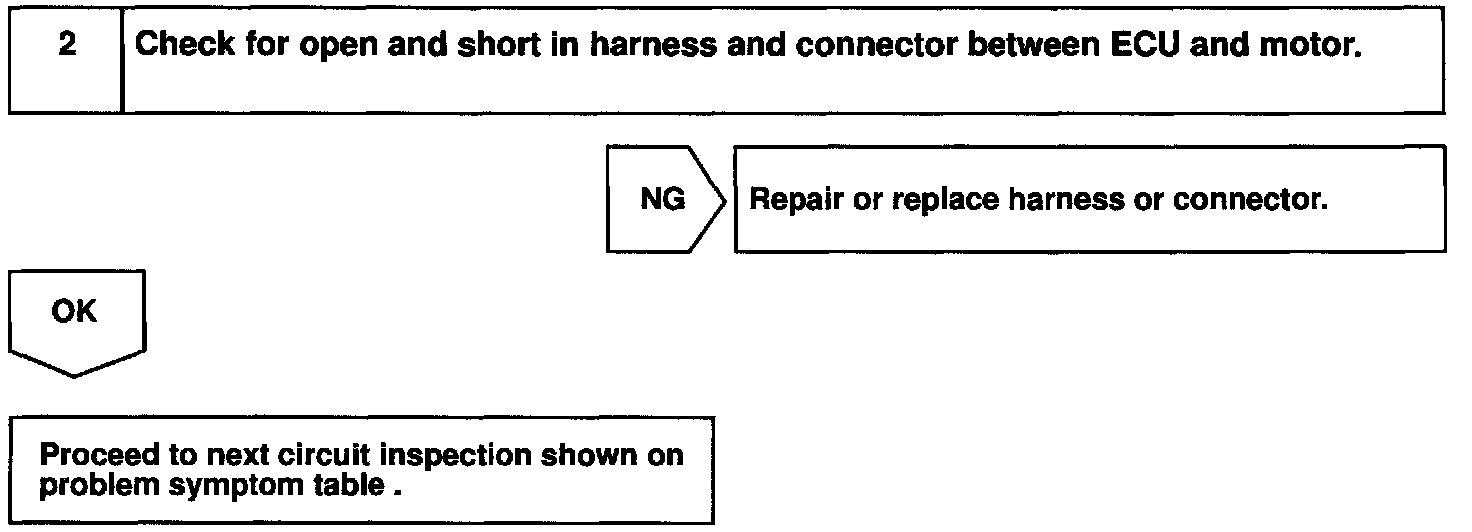

Step 2:

INSPECTION PROCEDURE
