Limit Switch Circuit

Limit Switch Circuit

CIRCUIT DESCRIPTION
Slide neutral limit switch: This switch is on when passenger's, seat is slided approx. 120 mm or more from the most back position.
Reclining front limit switch: This switch is on, when passenger's seat back is reclining forward. Reclining rear limit switch: When passenger's seat back returns upright, this is oil.

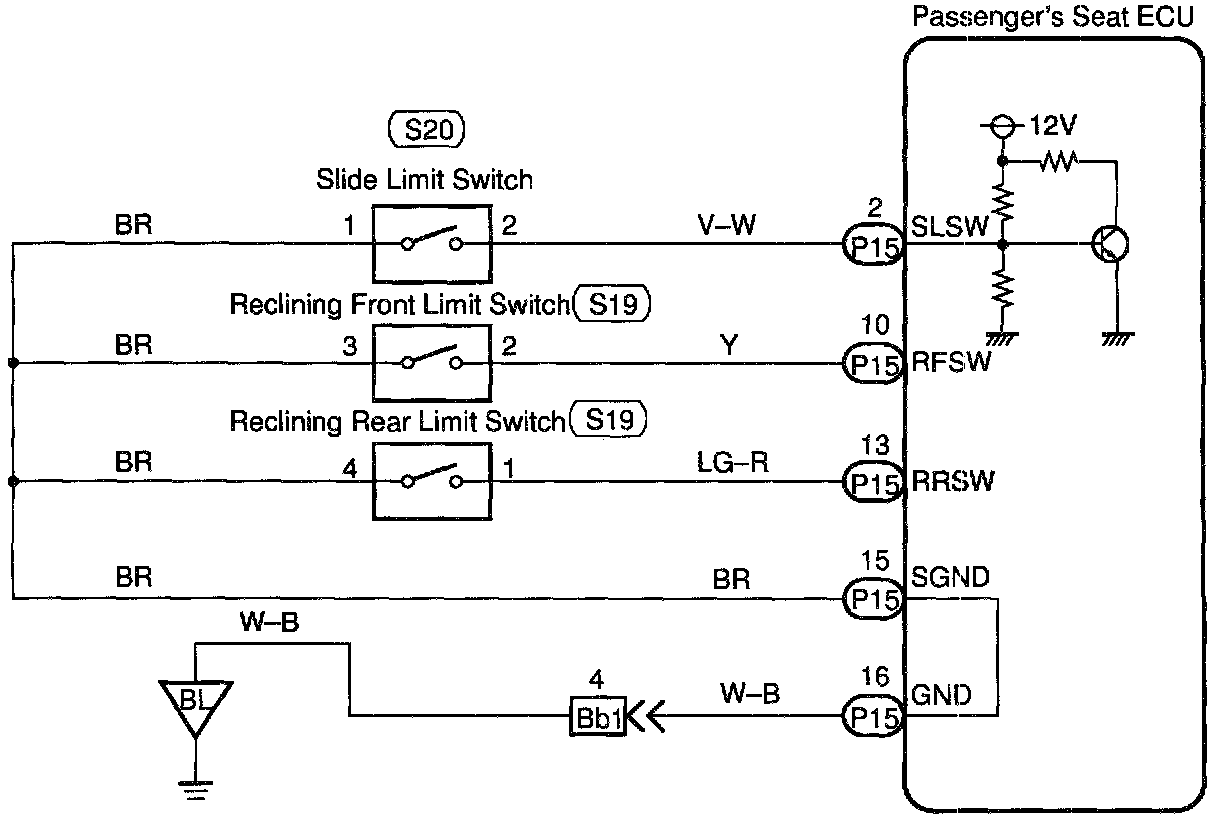

WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

Step 4:

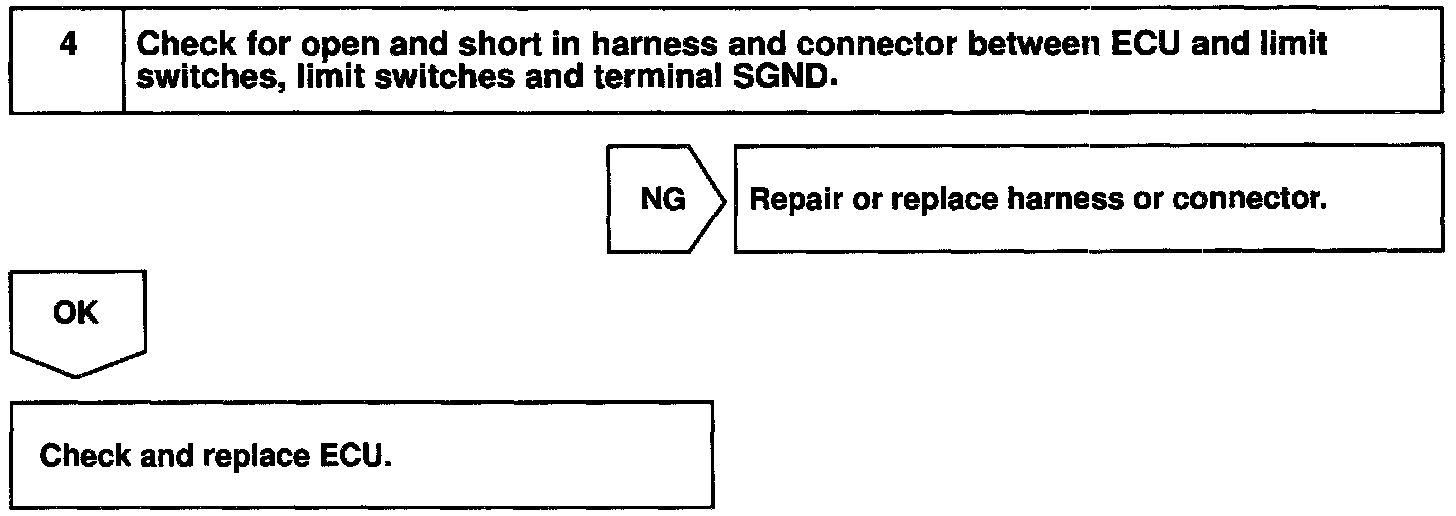

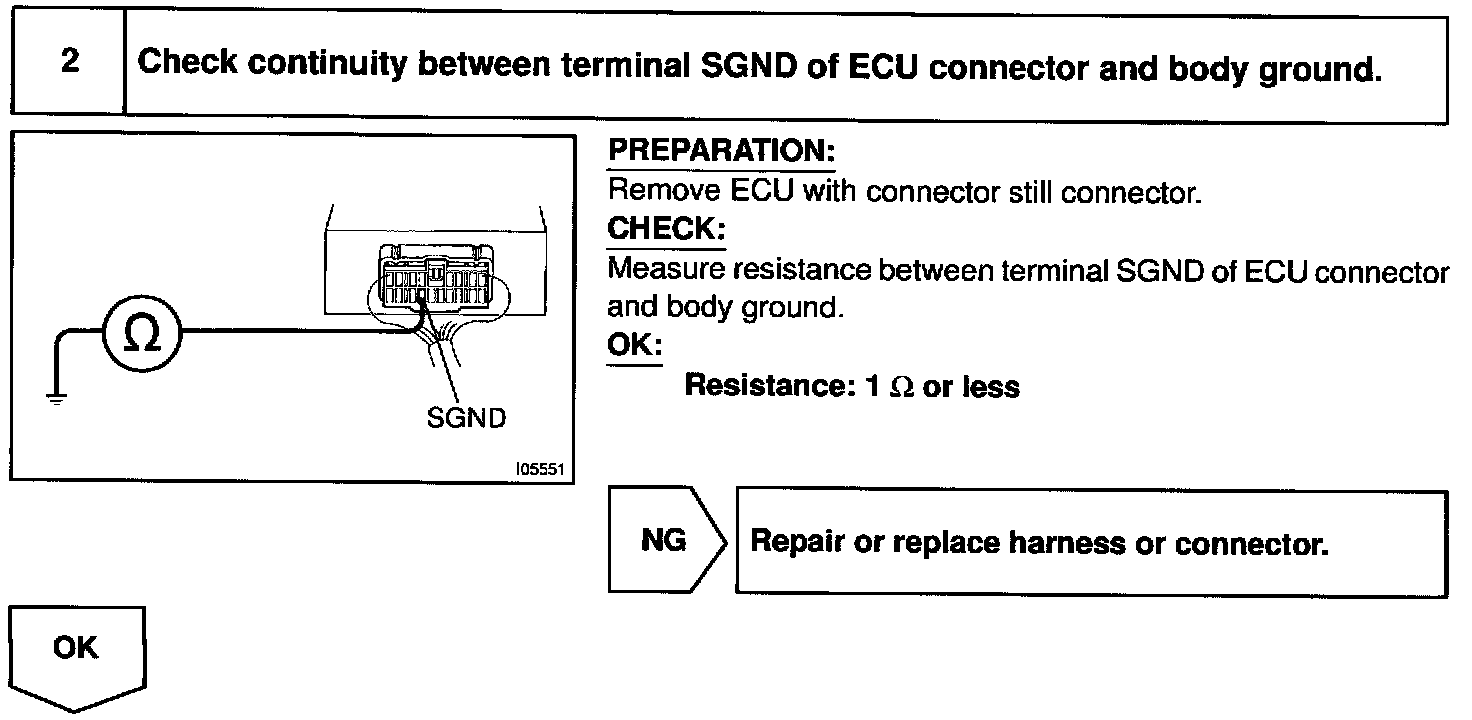

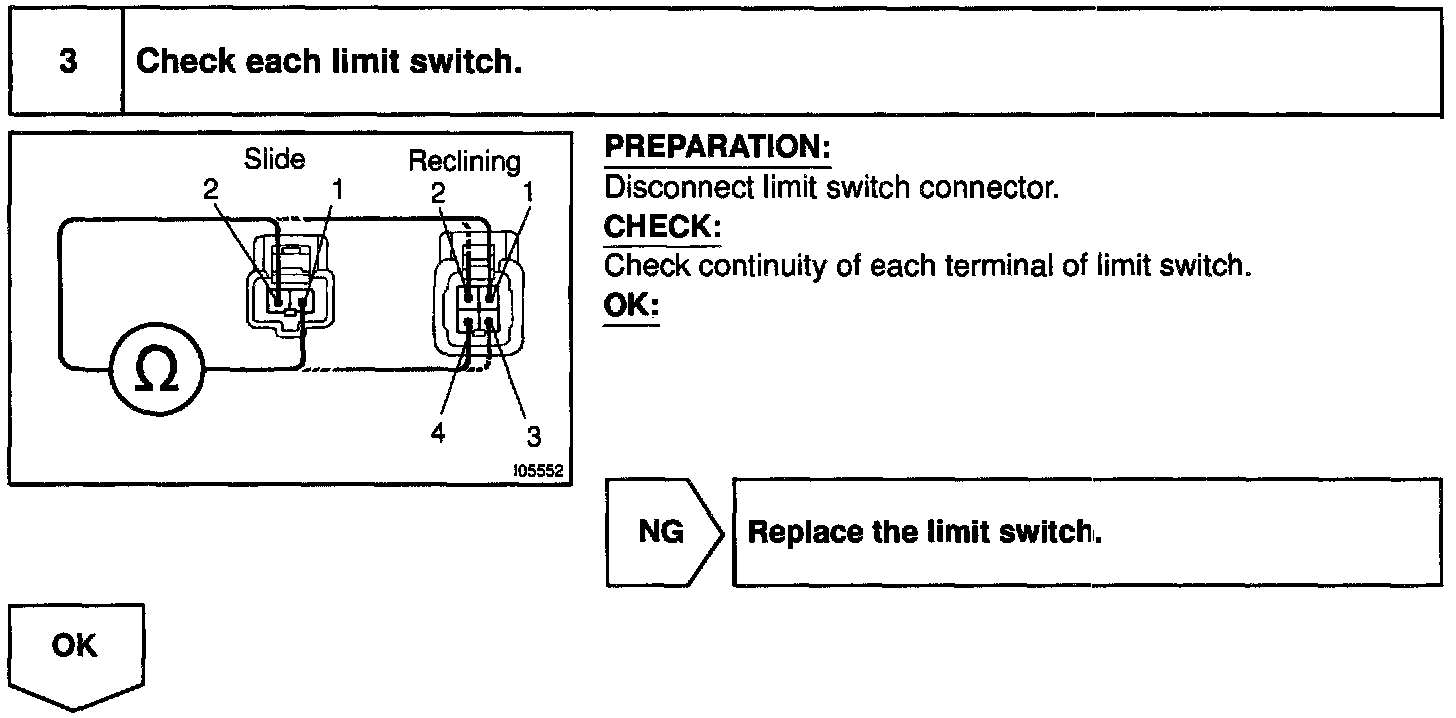

INSPECTION PROCEDURE
