ECU Power Source Circuit


ECU Power Source Circuit

CIRCUIT DESCRIPTION
This circuit provides power for ECU operation and is also the power source for the slide position sensor.

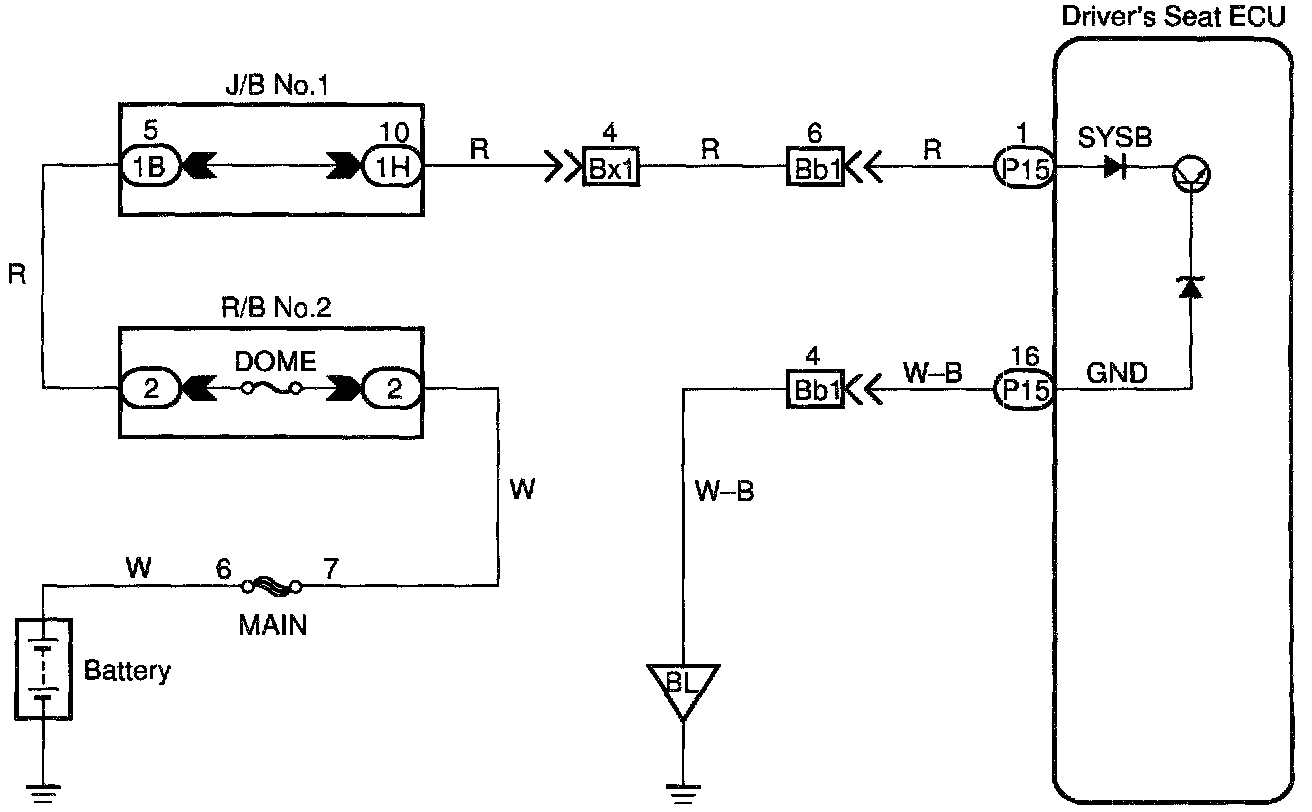

WIRING DIAGRAM

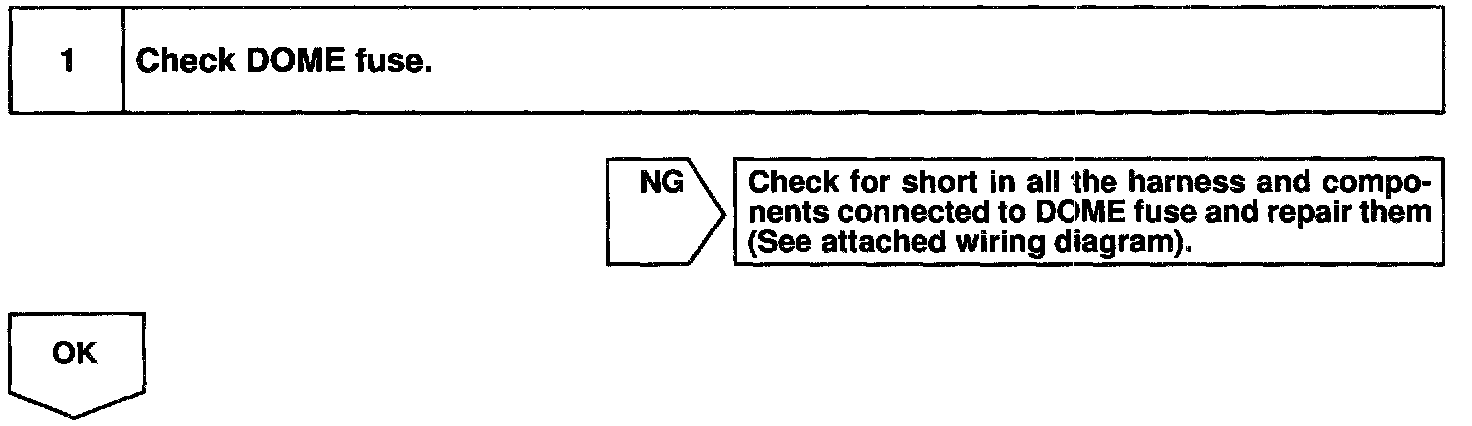

Step 1:

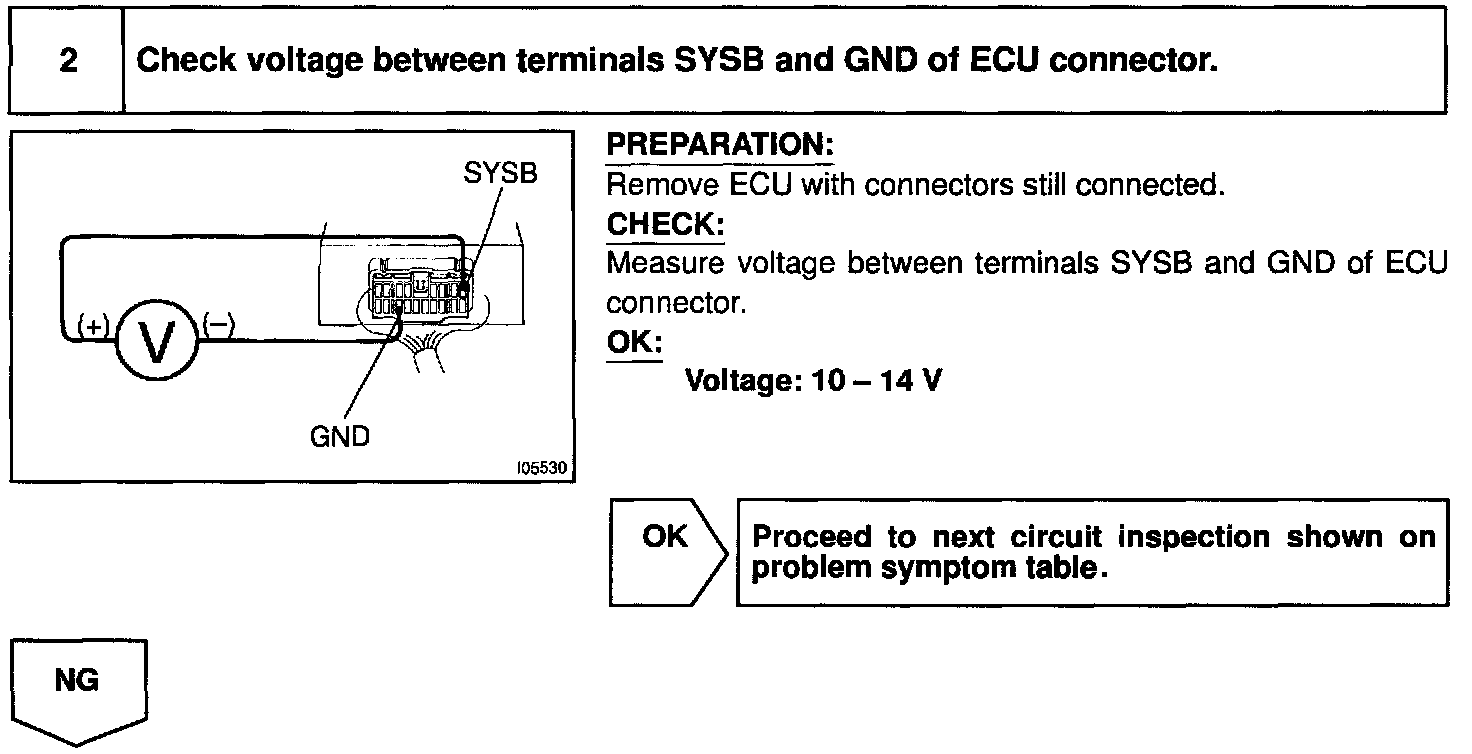

Step 2:

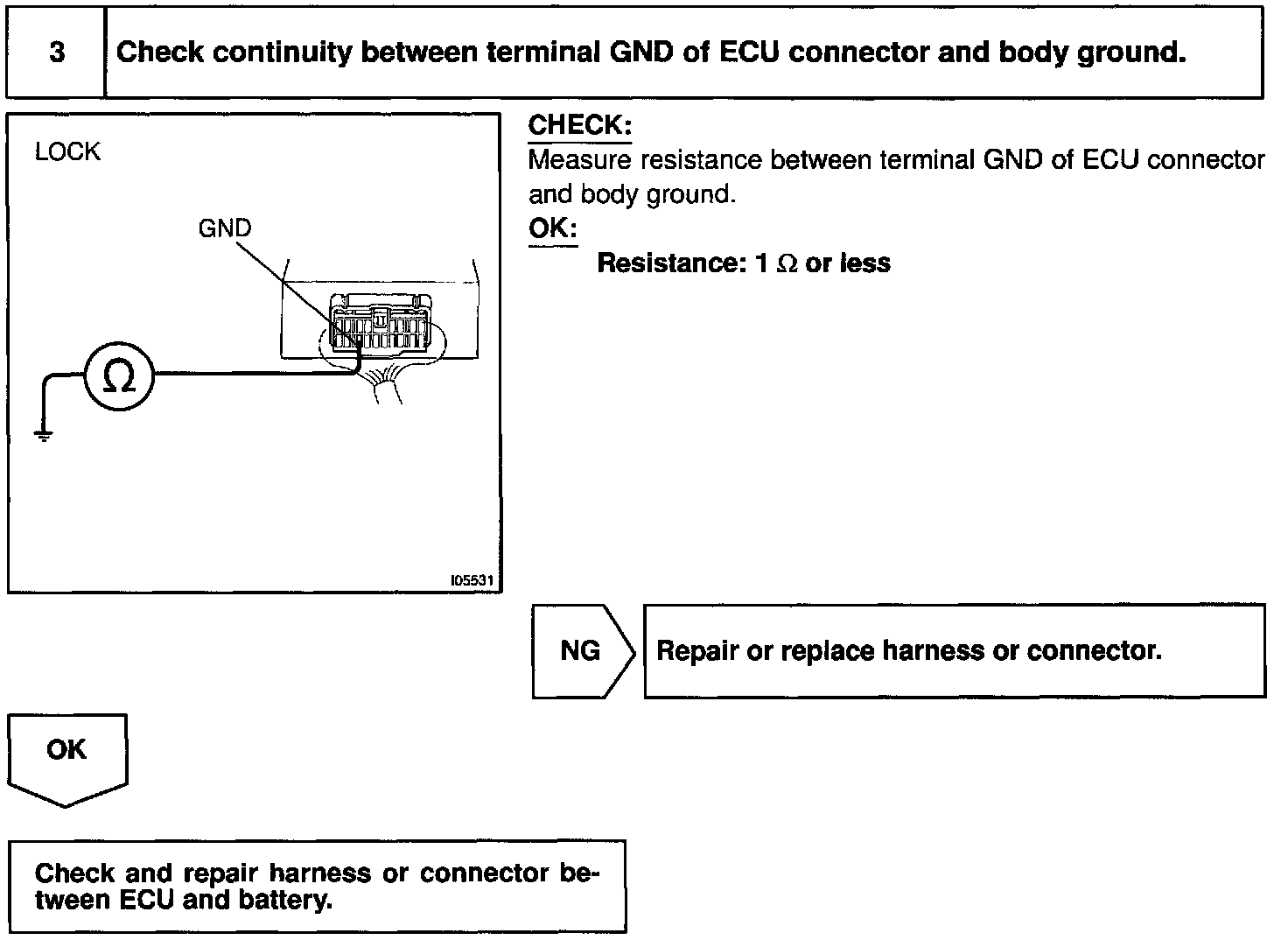

Step 3:





INSPECTION PROCEDURE
