Buckle Switch Circuit


Buckle Switch Circuit

CIRCUIT DESCRIPTION
Buckle switch signal is sent to ECU when the passenger's seat belt is fastened. When the signal is input to ECU, ECU prohibits operation of the power walk-in.

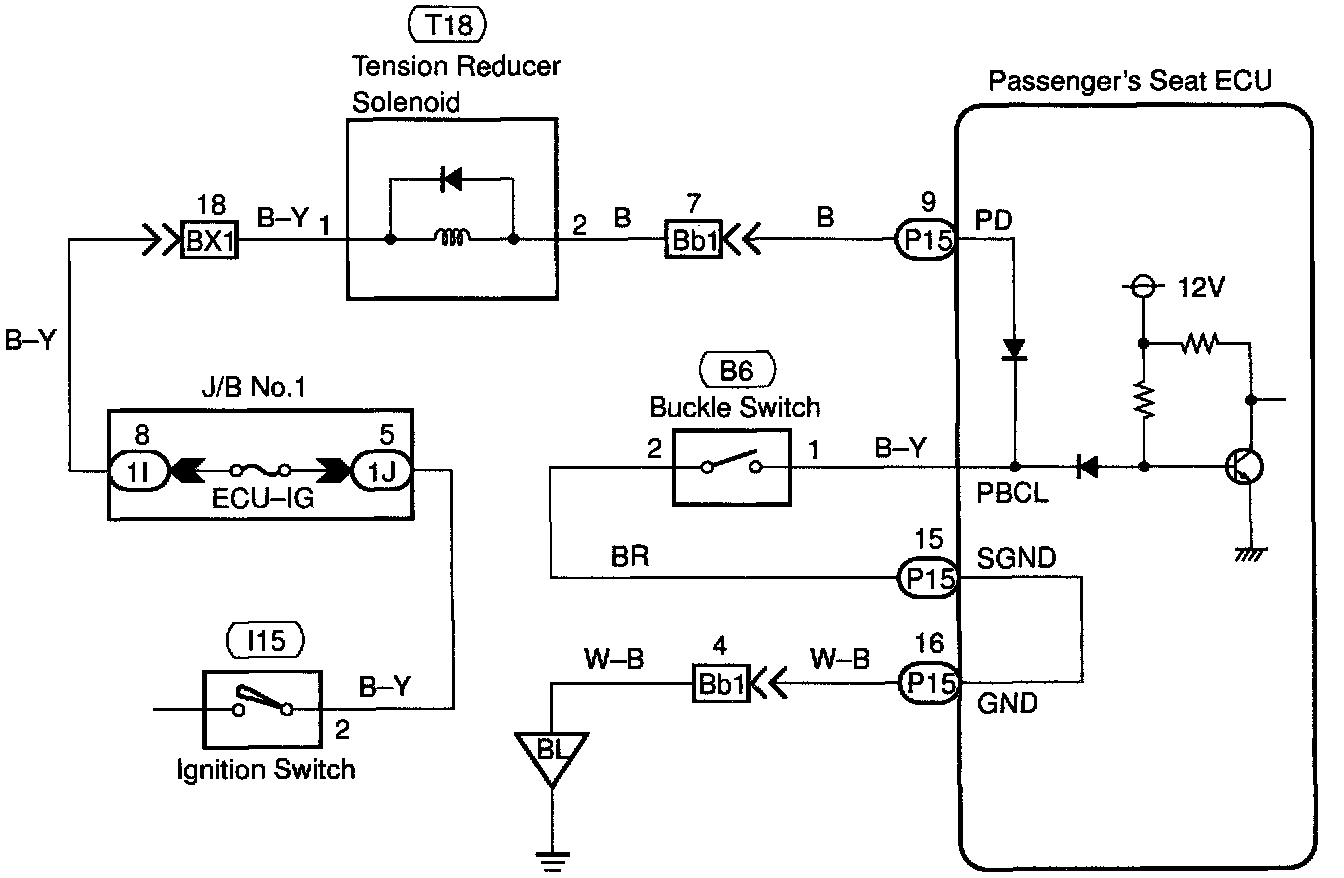

WIRING DIAGRAM

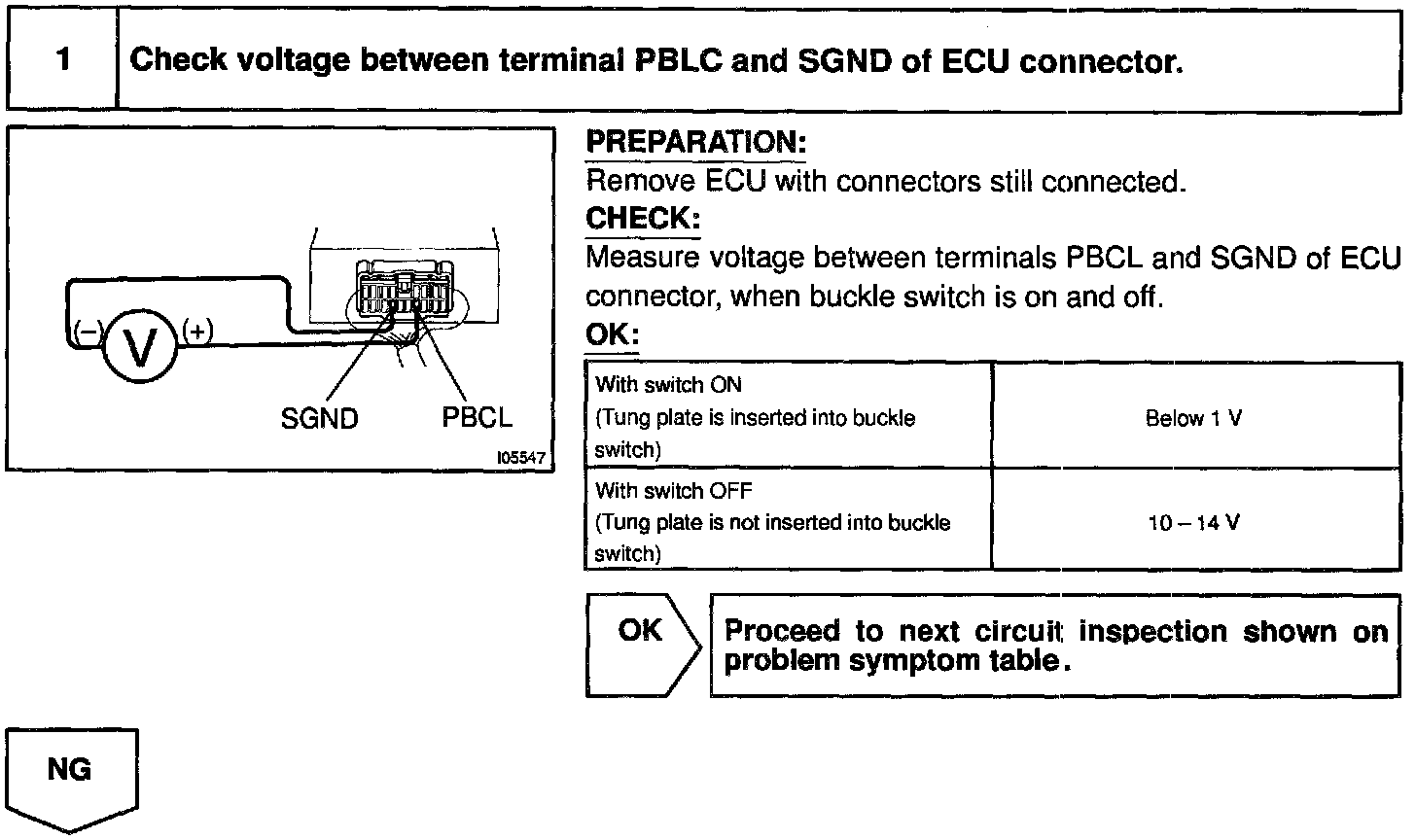

Step 1:

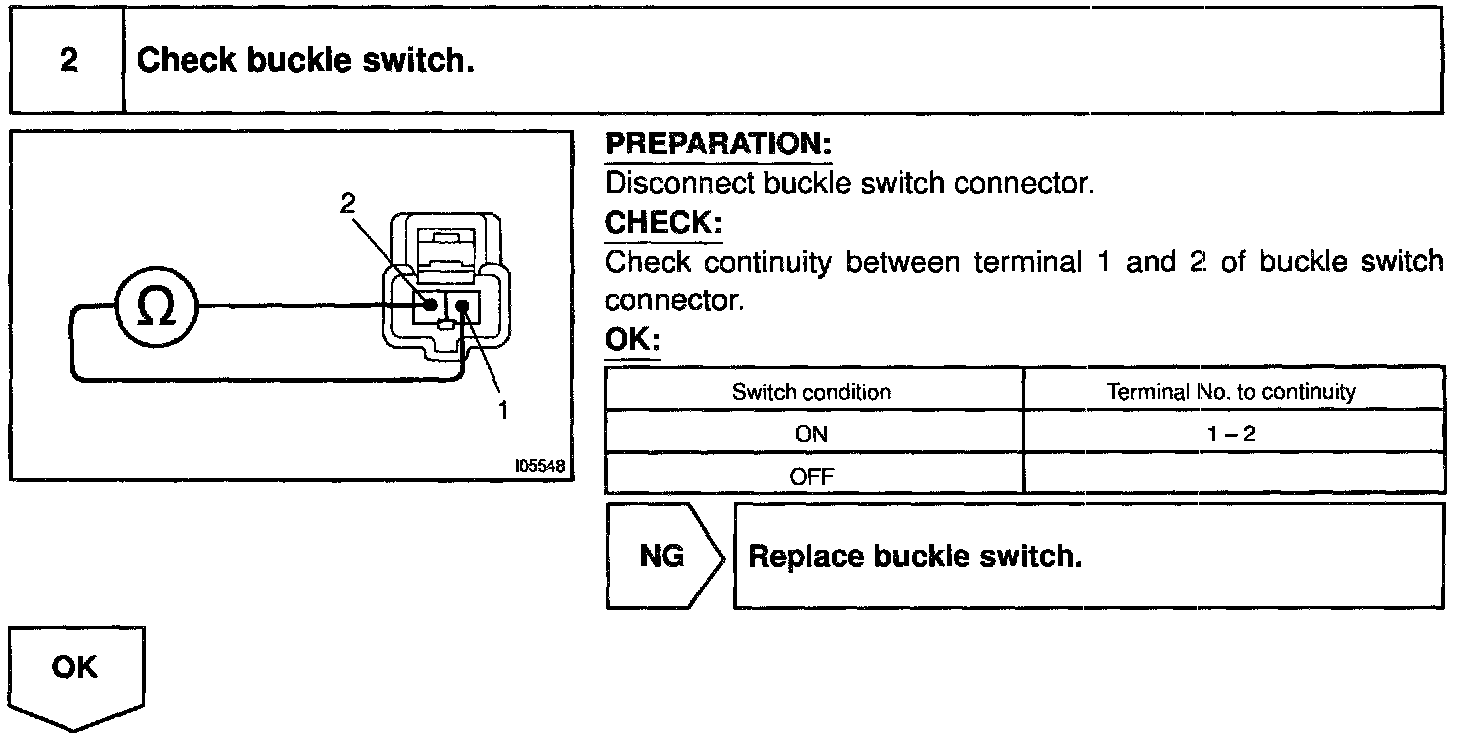

Step 2:




Step 3:





INSPECTION PROCEDURE
