Stop Light Switch Circuit


Stop Light Circuit

CIRCUIT DESCRIPTION
The stop light switch sends a brake ON or OFF signal to the ECU. When the ECU receives a brake ON signal it prohibits return operation of the seat.

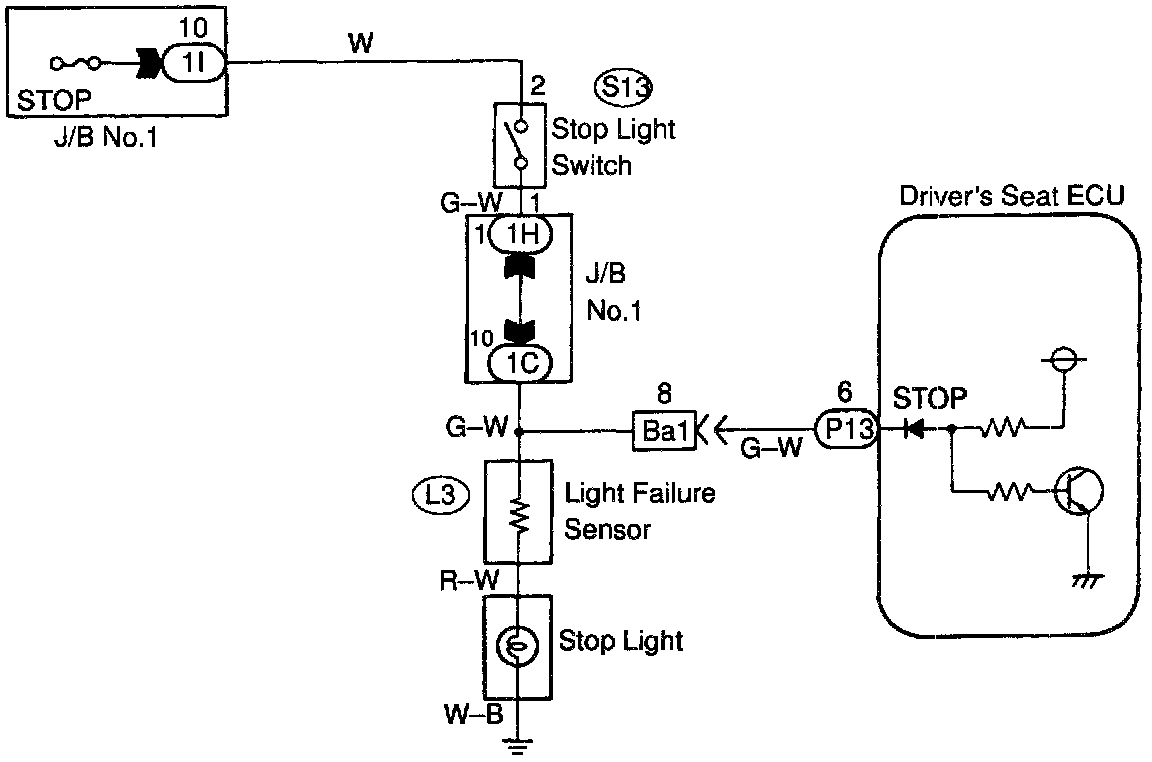

WIRING DIAGRAM

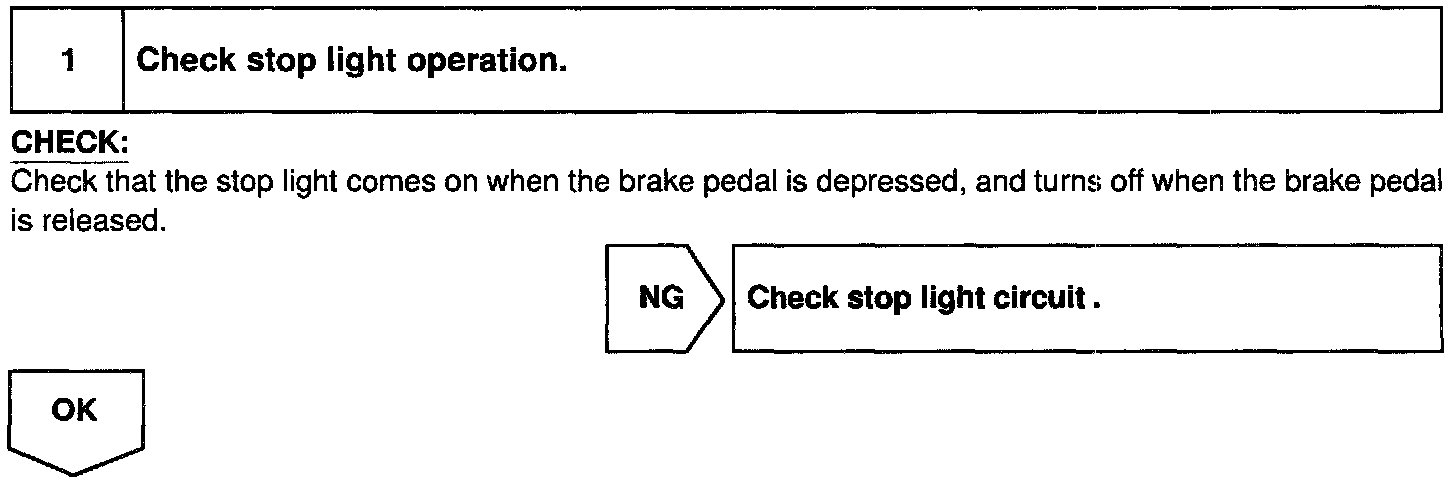

Step 1:

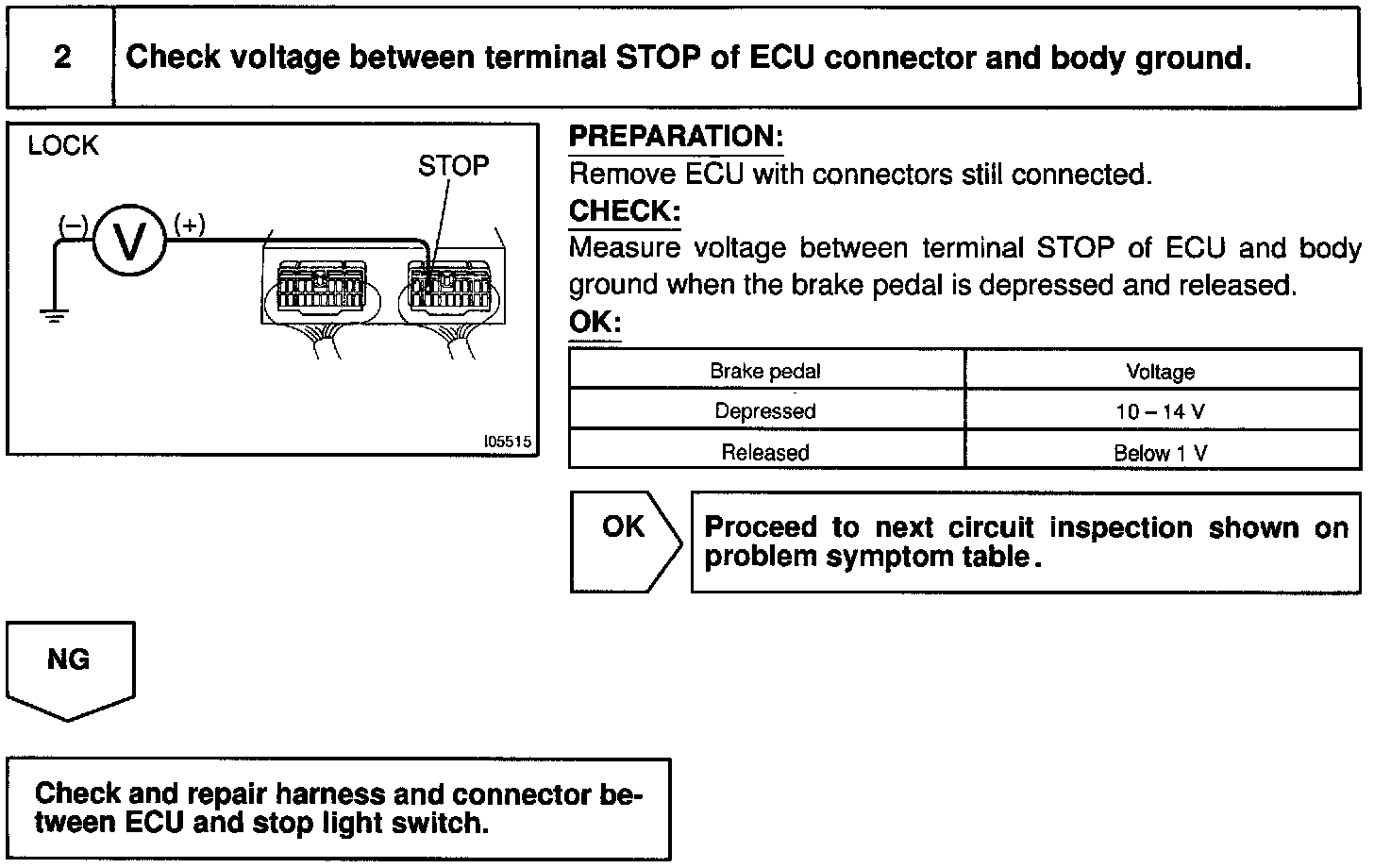

Step 2:





INSPECTION PROCEDURE
