Position Sensor Power Source Circuit
Position Sensor Power Source Circuit
CIRCUIT DESCRIPTION
The circuit provides power to the slide, front vertical, rear vertical and reclining sensors.

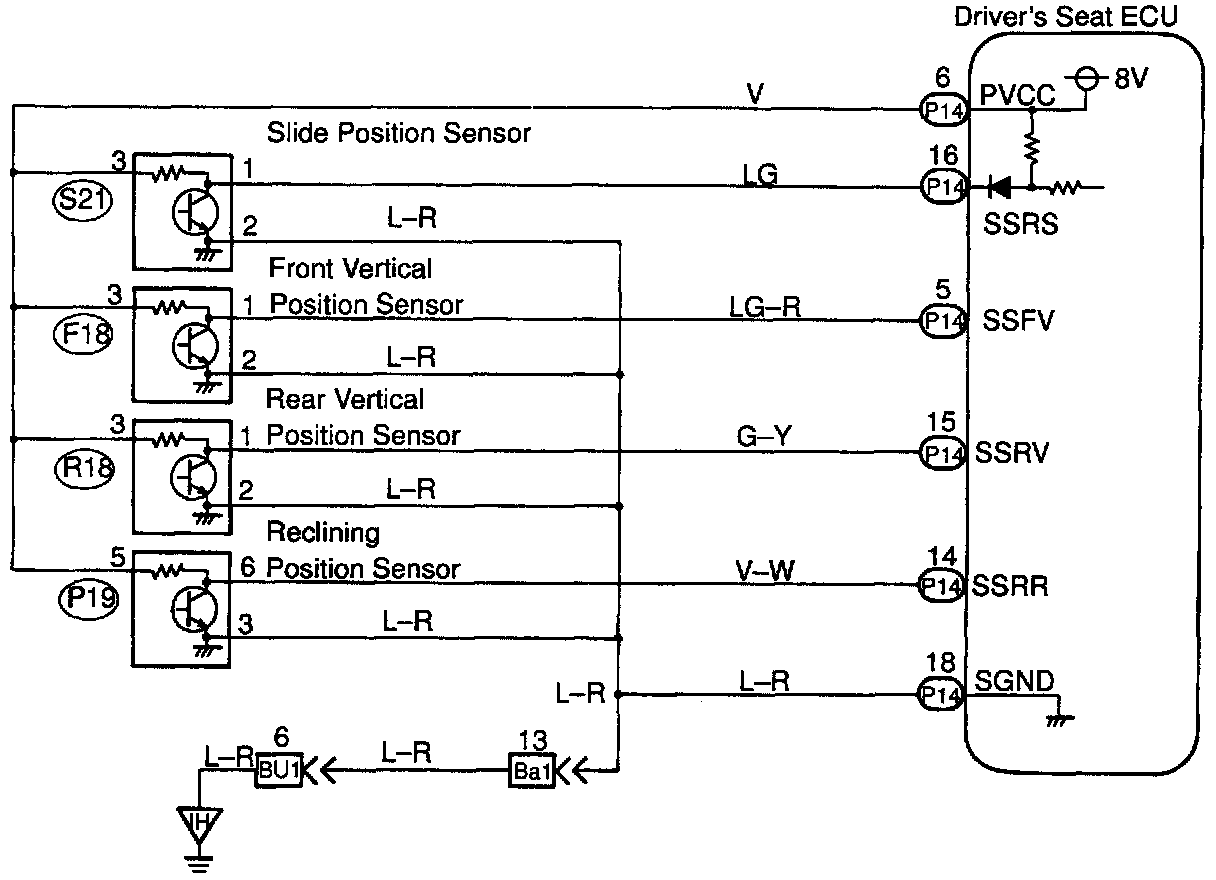

WIRING DIAGRAM

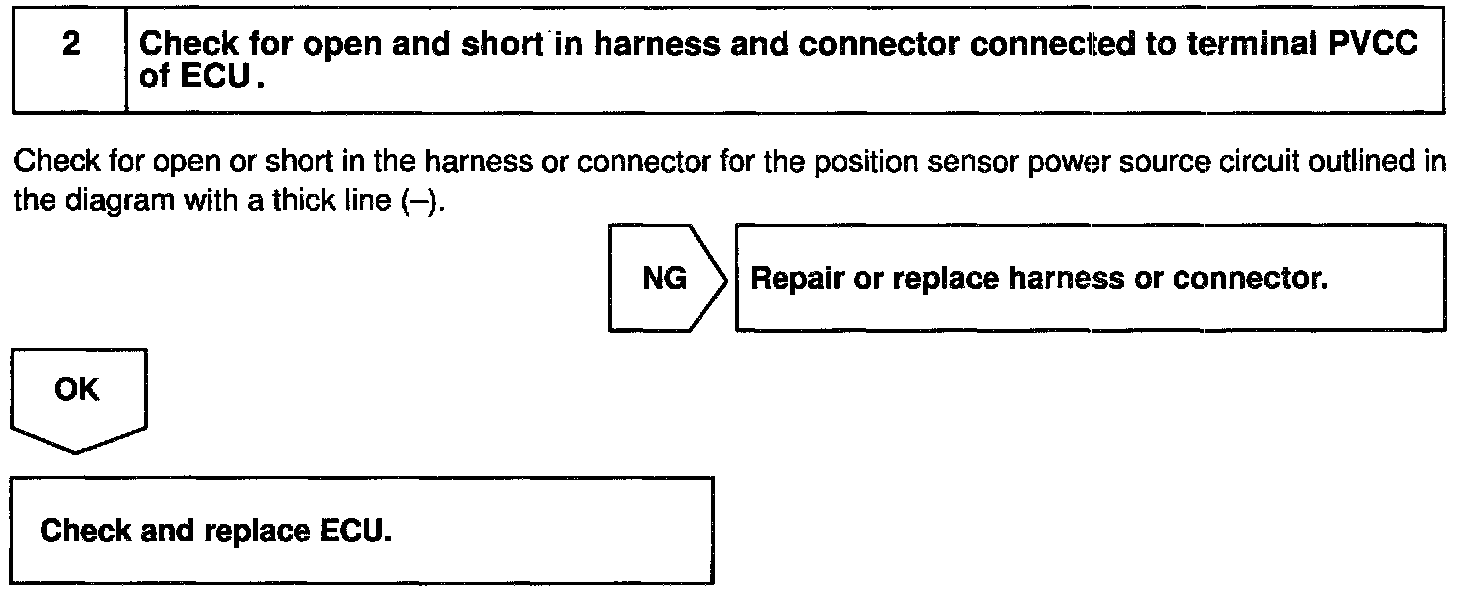

Step 1:

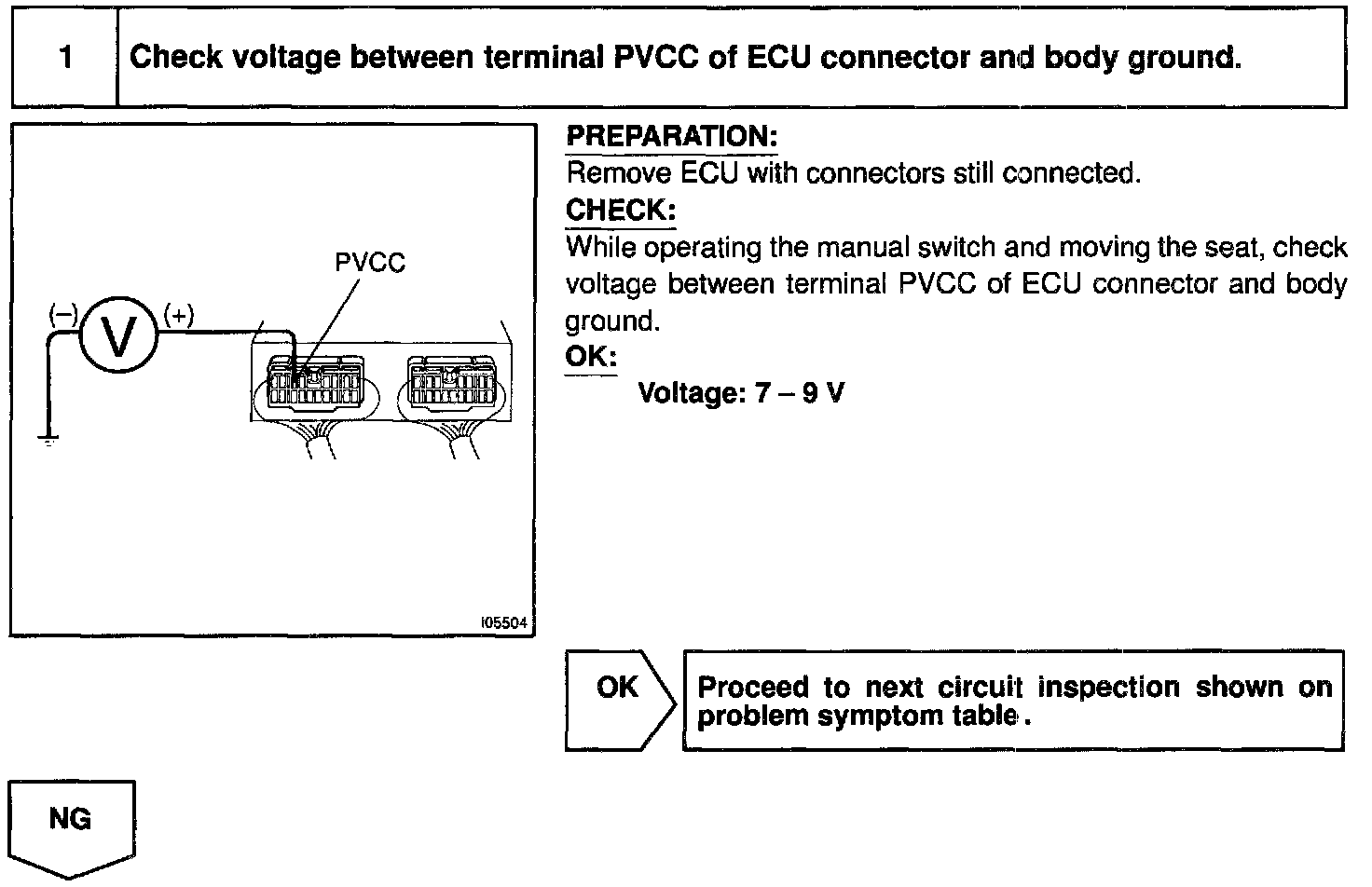

Step 2:
INSPECTION PROCEDURE
Position Sensor Power Source Circuit
CIRCUIT DESCRIPTION
The circuit provides power to the slide, front vertical, rear vertical and reclining sensors.
WIRING DIAGRAM
INSPECTION PROCEDURE
